51620 - Lawn-Boy 31cc Curved Shaft Trimmer (SN: 004900001 - 004999999) (1994) HANDLE ASSEMBLY MODEL NO. 51620 Parts Diagram

31cc Curved Shaft Trimmer

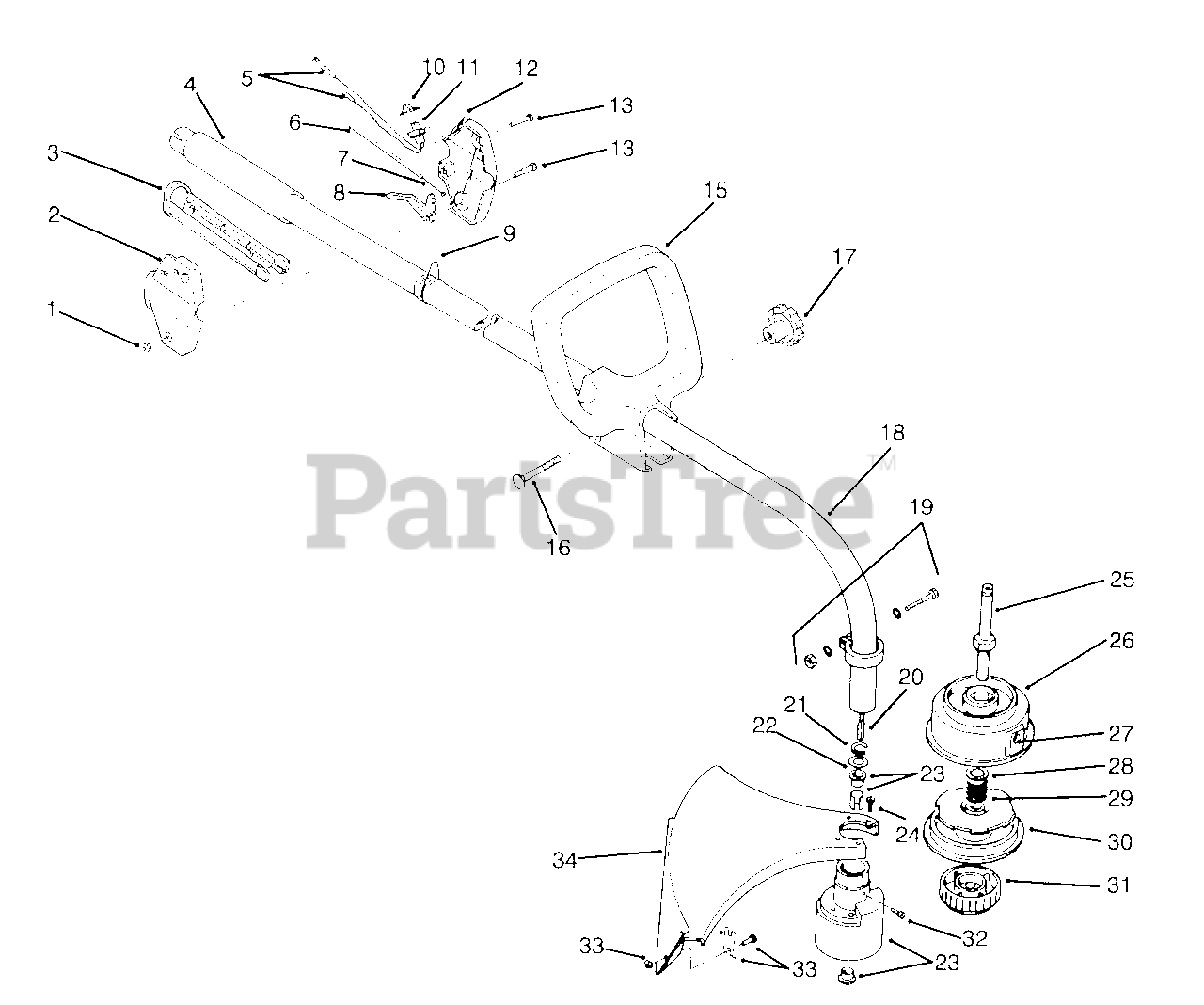

HANDLE ASSEMBLY MODEL NO. 51620 Parts Diagram

  • Title
1

Lawn-Boy 3296-12

Nut-Lock

$1.49

$

In Stock, Qty 6

0

2

Lawn-Boy 92-6516

Housing-R.H.

$

$

Not available

3

$

$

Not available

$

$

Not available

5

Lawn-Boy 92-3239

Assembly-Lead Wire

$

$

Not available

6

Lawn-Boy 614144

Housing-Throttle Cable
(Superseded to 181582)

$

$

Not available

7

Lawn-Boy 92-3272

Cable-Throttle

$

$

Not available

8

Lawn-Boy 53-7270

Lever-Throttle

$

$

Not available

9

Lawn-Boy 610327

Clamp-Shoulder Strap

$

$

Not available

10

Lawn-Boy 218-557

Cap-Switch

$

$

Not available

11

$17.99

$

In Stock, Qty 10

0

12

Lawn-Boy 92-6515

Housing-L.H.

$

$

Not available

13

Lawn-Boy 32105-12

Screw-Hex. Hd.

$2.99

$

In Stock, only 2 left!

0

15

$

$

Not available

16

Lawn-Boy 3-7253

Bolt-Carriage
(Superseded to 3230-6)

$1.49

$

In Stock, Qty 11

0

17

Lawn-Boy 19-4050

Knob-Loop Handle

$17.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 92-3271

Assembly-Drive Shaft

$

$

Not available

19

Lawn-Boy 153597

Assembly-Lower Clamp

$

$

Not available

20

Lawn-Boy 682064

Flexible Drive Shaft
(Superseded to 92-3236)

$

$

Not available

21

Lawn-Boy 145570

Ring-Retaining

$11.99

$

Usually ships in 3-6 days

0

22

$

$

Not available

23

Lawn-Boy 153312

Assy.-Bushing Housing

$

$

Not available

24

Lawn-Boy 180531

Assy.-Guard Mount Screw

$2.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 153313

Shaft-Spool
(Superseded to 181784)

$

$

Not available

26

Lawn-Boy 153619

Assy-Outer Spool & Eyelet

$51.99

$

Usually ships in 3-6 days

0

27

$16.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 610660

Retainer (10 Pack)

$4.49

$

In Stock, Qty 19

0

29

$12.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 610318

Inner Reel

$41.99

$

In Stock, only 1 left!

0

31

Lawn-Boy 153066

Assy-Bump Head Knob

$

$

Not available

32

Lawn-Boy 145569

Anti-Rotation Screw

$

$

Not available

33

Lawn-Boy 682061

Assembly-Blade (Incl. 2 Screws/2 Nuts)

$23.99

$

In Stock, only 1 left!

0

34

Lawn-Boy 683274

Assembly-Guard & Blade (Incl. Ref. #33)

$

$

Not available

Lawn-Boy 610375

Monoflail cutting line, 50ft.

Note: Not Illustrated

$

$

Not available

Lawn-Boy 153577

Assy-Spool & Line 30ft.
(Superseded to 88192)

Note: Not Illustrated

$27.99

$

In Stock, only 3 left!

0

Lawn-Boy 682075

Shoulder Strap

Note: Not Illustrated

$

$

Not available

Lawn-Boy 66-2090

Toro 2-Cycle Oil

Note: Not Illustrated

$

$

Not available

Lawn-Boy 683223

Assembly-Cutting Head (Incl. Ref. No. 19, 21-34)
(Superseded to 683059)

Note: Not Illustrated

$

$

Not available
