51616 (TC 650) - Toro String Trimmer (SN: 004000001 - 004999999) (1984) HANDLE & TRIMMER HEAD ASSEMBLY Parts Diagram

String Trimmer

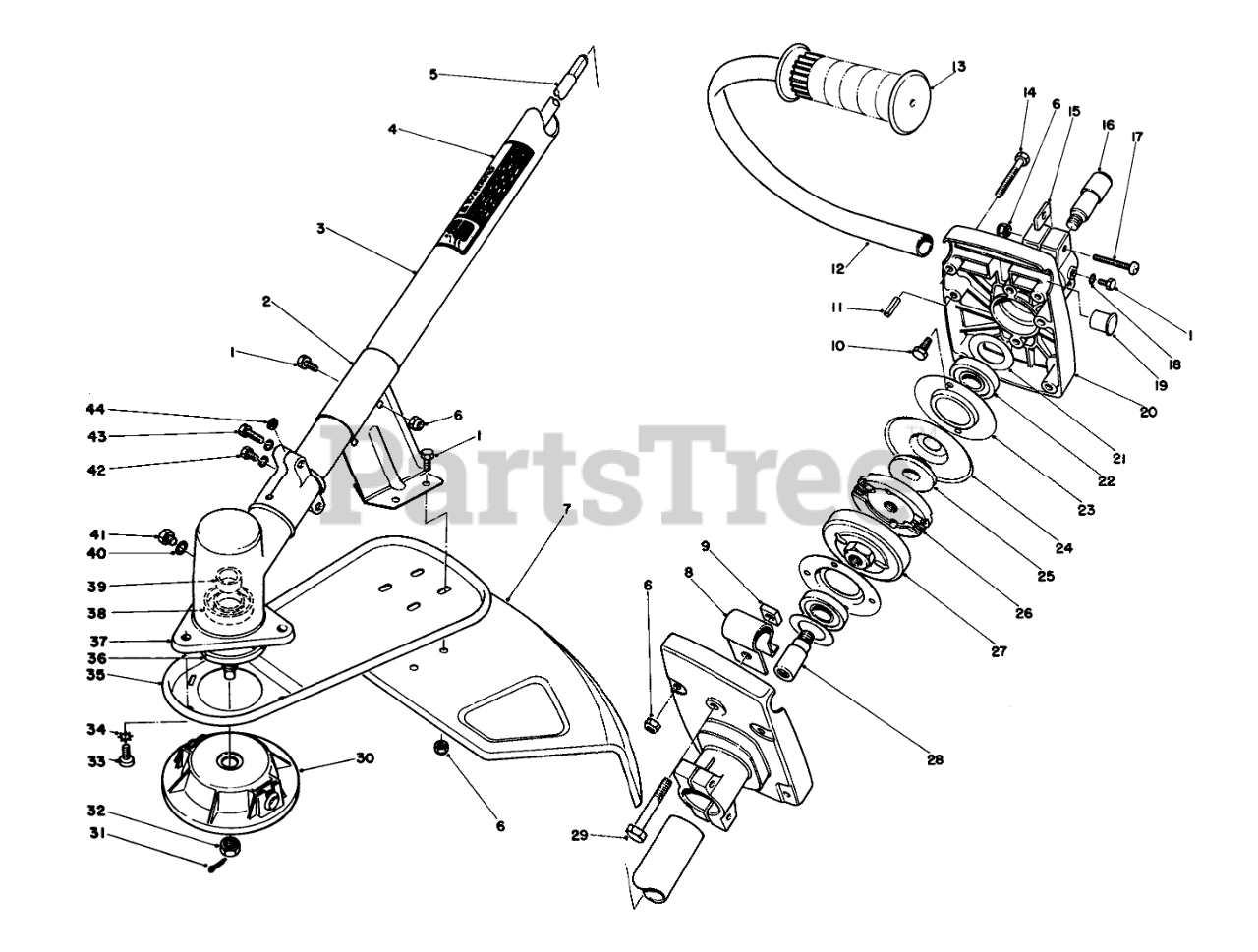

HANDLE & TRIMMER HEAD ASSEMBLY Parts Diagram

  • Title

1

Toro 32105-8

SCREW-SHH

$2.49

$

Usually ships in 3-6 days

0

2

Toro 47-2760

SHIELD BRKT

$

$

Not available

3

Toro 11-5039

Lower Tube Assembly (Incl. Ref. #4)

$

$

Not available

4

Toro 46-9480

Decal
(Superseded to 82-6210)

$

$

Not available

5

Toro 474720

Drive Shaft

$

$

Currently unavailable

6

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 47-2810

GRASS SHIELD R

$

$

Not available

8

Toro 46-9610

Clamp-Handle

$

$

Not available

9

Toro 32107-5

Nut-Square

$

$

Currently unavailable

10

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

11

Toro 32121-91

PIN-SPRING

$1.49

$

Usually ships in 3-6 days

0

12

Toro 46-9530

J-Handle

$

$

Not available

13

Toro 235-24

LH GRIP

$

$

Not available

14

Toro 32105-7

Screw-Machine Hex. Hd.

$

$

Not available

15

Toro 47-2730

Washer-Housing

$

$

Not available

16

Toro 47-2740

Shaft-Clutch, Input

$

$

Not available

17

Toro 46-9780

Screw-Machine Cross Recess Pan Hd.

$

$

Not available

18

Toro 3253-12

WASHER-LOCK/SP

$

$

Not available

19

Toro 47-6690

Plug Cap

$

$

Not available

20

Toro 47-2750

Housing-Clutch

$

$

Not available

21

Toro 42-6030

FLAT WASHER

$

$

Not available

22

Toro 49-2410

BEARING-BALL

$52.99

$

Usually ships in 3-6 days

0

23

Toro 48-2990

Retainer-Bearing

$

$

Not available

24

Toro 46-6700

CLUTCH SHIELD-WILLMAR

$

$

Not available

25

Toro 44-6670

Spacer-Clutch

$

$

Not available

26

Toro 47-2850

Clutch Assembly

$

$

Not available

27

Toro 46-9600

Drum Assembly

$

$

Not available

28

Toro 47-2710

Shaft-Clutch, Output

$

$

Not available

29

Toro 32241

45050-T/ST FRENCH 2

$3.23

$

Usually ships in 3-6 days

0

30

Toro 51-2760

CUTTER HEAD-PLASTIC

$190.99

$

Usually ships in 3-6 days

0

31

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 15

0

32

Toro 41-5410

NUT

$9.49

$

Usually ships in 3-6 days

0

33

Toro 47-2830

SCREW

$0.99

$

Usually ships in 3-6 days

0

34

Toro 3255-17

WASHER-LOCK, EXT

$0.99

$

Usually ships in 3-6 days

0

35

Toro 47-2800

SHIELD SUPPORT R

$

$

Not available

36

Toro 48-2080

DUST CAP F/W

$165.99

$

Usually ships in 3-6 days

0

37

Toro 46-9690

Gear Case Assembly (Incl. Ref. #32, 36, 3844)

$

$

Not available

38

Toro 48-2090

OIL SEAL

$

$

Not available

39

Toro 48-2100

SPLINED SLEEVE

$

$

Not available

40

Toro 48-2120

GASKET

$

$

Not available

41

Toro 48-2110

HHMS SCREW

$

$

Not available

42

Toro 48-2150

HHMS SCREW

$9.49

$

Usually ships in 3-6 days

0

43

Toro 48-2130

HHMS SCREW

$

$

Not available

44

Toro 48-2140

WASHER

$

$

Not available
