51616 (TC 650) - Toro String Trimmer (SN: 004000001 - 004999999) (1984) CARBURETOR ASSEMBLY NO. 45-2970 Parts Diagram

String Trimmer

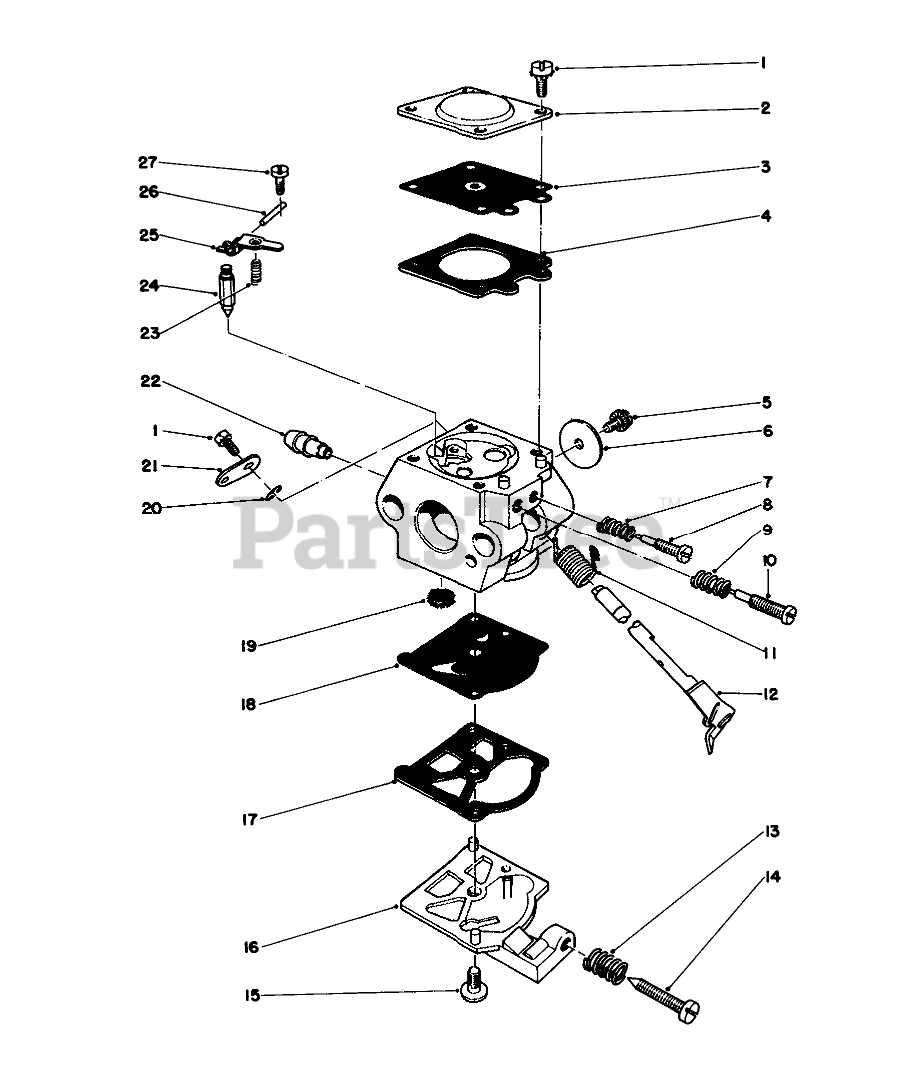

CARBURETOR ASSEMBLY NO. 45-2970 Parts Diagram

  • Title

1

Toro 41-1070

Screw

$

$

Not available

2

Toro 41-1060

Cover, Diaphragm

$

$

Not available

3

Toro 41-1050

METERING DIAPHRAGM

$

$

Not available

4

Toro 45-2720

Gasket-Metering Diaphragm

$

$

Not available

5

Toro 45-2780

VALVE SCREW

$

$

Not available

6

Toro 45-3100

Valve-Throttle

$

$

Not available

7

Toro 45-3140

Spring-Needle (Idle)

$

$

Not available

8

Toro 45-3150

Needle-Idle

$

$

Not available

9

Toro 45-2770

Spring-Needle (Hi)

$

$

Not available

10

Toro 45-3160

Needle Hi Speed

$

$

Not available

11

Toro 45-3130

Spring-Throttle Return
(Superseded to 41-0720)

$

$

Not available

12

Toro 46-4660

Shaft Assembly-Throttle

$

$

Not available

13

Toro 46-4700

Spring-Idle Screw

$

$

Not available

14

Toro 46-4690

Screw-Idle Adjust

$

$

Not available

15

Toro 41-0700

Screw

$

$

Not available

16

Toro 45-3090

Cover-Fuel Pump

$

$

Not available

17

Toro 45-2670

PUMP GASKET

$

$

Not available

18

Toro 45-2680

PUMP DIAPHRAGM

$27.99

$

Usually ships in 3-6 days

0

19

Toro 46-4720

Inlet Screen

$

$

Not available

20

Toro 464370

Ring-Throttle Retainer

$

$

Currently unavailable

21

Toro 45-3110

Lever-Throttle
(Superseded to 46-4380)

$

$

Not available

22

Toro 47-5420

Fitting Fuel Inlet

$

$

Not available

23

Toro 45-2800

Metering Lever Spring
(Superseded to 41-0870)

$

$

Not available

24

Toro 45-2810

NEEDLE VALVE

$

$

Not available

25

Toro 41-0880

Lever Metering

$

$

Not available

26

Toro 41-1020

Metering Lever Pin

$

$

Not available

27

Toro 41-1030

Screw-Metering Pin

$

$

Not available

Toro 45-3200

Kit-OEM Repair (Incl. Ref. #1, 4-5, 7-11, 17-19 & 23-27)

Note: Not illustrated

$

$

Not available

Toro 45-3031

Kit-Gasket/Diaphragm (Incl. Ref. #4, 17 & 18)

Note: Not illustrated

$

$

Not available

Toro 45-3210

Kit-Nozzle Check Valve

Note: Not illustrated

$

$

Not available

Toro 46-4730

Kit Screen & Clip

Note: Not illustrated

$

$

Not available

Toro 46-4750

Kit-Kwik Repair

Note: Not illustrated

$

$

Not available
