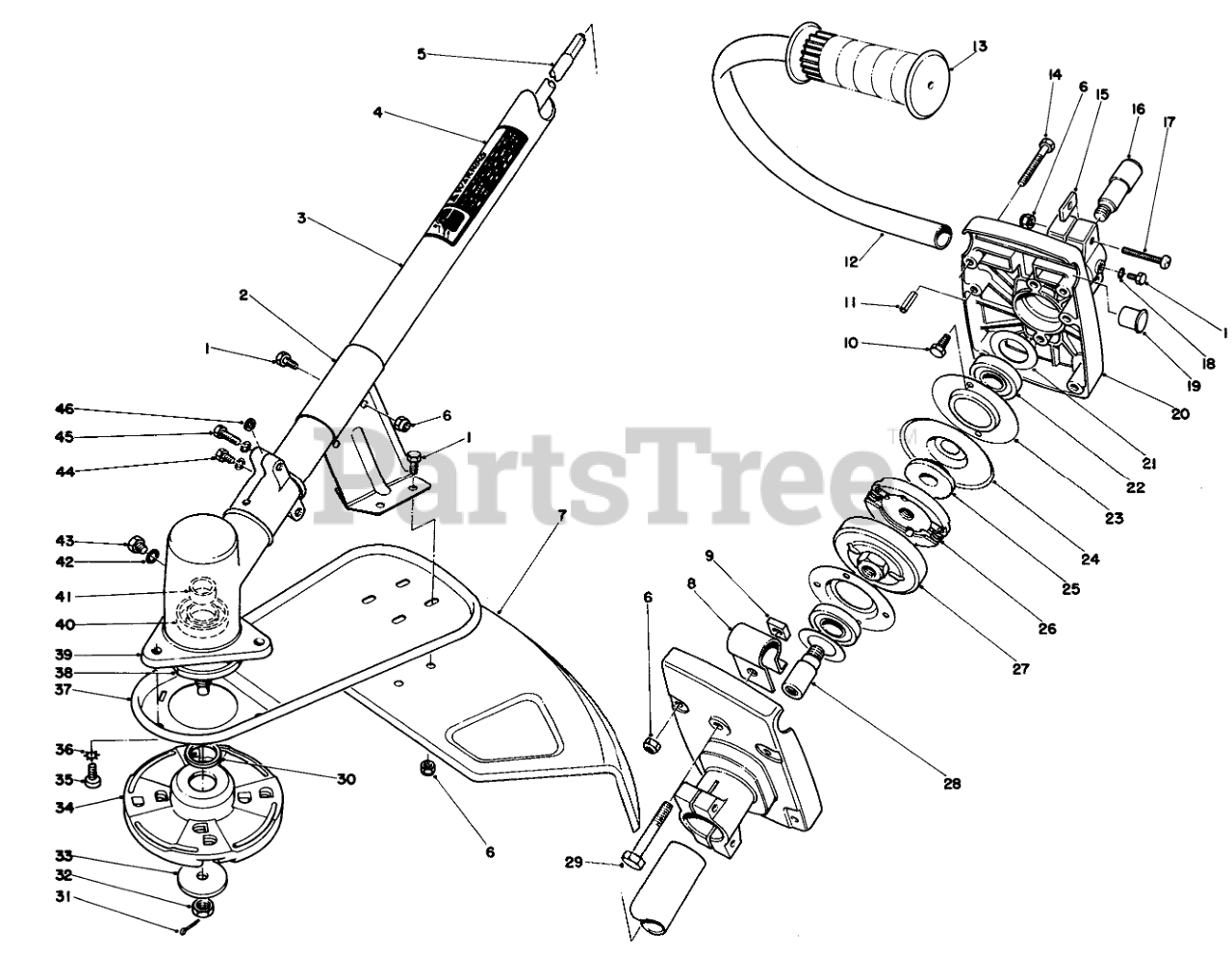

51616 (TC 650) - Toro String Trimmer (SN: 003000001 - 003999999) (1983) HANDLE & TRIMMER HEAD ASSEMBLY Parts Diagram

String Trimmer

HANDLE & TRIMMER HEAD ASSEMBLY Parts Diagram

  • Title

1

Toro 32105-8

SCREW-SHH

$2.49

$

In Stock, only 1 left!

0

2

Toro 47-2760

SHIELD BRKT

$

$

Not available

3

Toro 11-5039

Lower Tube Assembly (Incl. Ref. #4)

$

$

Not available

4

Toro 46-9480

Decal
(Superseded to 82-6210)

$

$

Not available

5

Toro 47-4720

Drive Shaft

$

$

Not available

6

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 47-2810

GRASS SHIELD R

$

$

Not available

8

Toro 46-9610

Clamp-Handle

$

$

Not available

9

Toro 32107-5

Nut-Square

$

$

Currently unavailable

10

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 8

0

11

Toro 32121-91

PIN-SPRING

$1.49

$

Usually ships in 3-6 days

0

12

Toro 46-9530

J-Handle

$

$

Not available

13

Toro 235-24

LH GRIP

$

$

Not available

14

Toro 32105-7

Screw-Machine Hex. Hd.

$

$

Not available

15

Toro 47-2730

Washer-Housing

$

$

Not available

16

Toro 47-2740

Shaft-Clutch, Input

$

$

Not available

17

Toro 46-9780

Screw-Machine Cross Recess Pan Hd.

$

$

Not available

18

Toro 3253-12

WASHER-LOCK/SP

$

$

Not available

19

Toro 47-6690

Plug Cap

$

$

Not available

20

Toro 47-2750

Housing-Clutch

$

$

Not available

21

Toro 42-6030

FLAT WASHER

$

$

Not available

22

Toro 251-294

Bearing
(Superseded to 49-2410)

$49.99

$

Usually ships in 3-6 days

0

23

Toro 48-2990

Retainer-Bearing

$

$

Not available

24

Toro 46-6700

CLUTCH SHIELD-WILLMAR

$

$

Not available

25

Toro 44-6670

Spacer-Clutch

$

$

Not available

26

Toro 47-2850

Clutch Assembly

$

$

Not available

27

Toro 46-9600

Drum Assembly

$

$

Not available

28

Toro 47-2710

Shaft-Clutch, Output

$

$

Not available

29

Toro 322-41

SCREW-HH
(Superseded to 323-4)

$3.99

$

In Stock, only 3 left!

0

30

Toro 44-6950

SPACER

$

$

Not available

31

Toro 3272-3

1/16 X 1 LG COTTER PIN

$2.99

$

In Stock, only 1 left!

0

32

Toro 46-8600

Nut-Special, L.H. Metric
(Superseded to 41-5410)

$7.99

$

Usually ships in 3-6 days

0

33

Toro 41-4430

WASHER

$

$

Not available

34

Toro 46-2810

Cutter Head (Incl. Ref. #30)

$

$

Not available

35

Toro 47-2830

SCREW

$0.99

$

Usually ships in 3-6 days

0

36

Toro 3255-17

WASHER-LOCK, EXT

$0.99

$

Usually ships in 3-6 days

0

37

Toro 47-2800

SHIELD SUPPORT R

$56.99

$

Usually ships in 3-6 days

0

38

Toro 48-2080

DUST CAP F/W

$157.99

$

Usually ships in 3-6 days

0

39

Toro 46-9690

Gear Case Assembly (Incl. Ref. #38, 40-46)

$

$

Not available

40

Toro 48-2090

OIL SEAL

$

$

Not available

41

Toro 48-2100

SPLINED SLEEVE

$

$

Not available

42

Toro 48-2120

GASKET

$

$

Not available

43

Toro 48-2110

HHMS SCREW

$

$

Not available

44

Toro 48-2150

HHMS SCREW

$7.99

$

Usually ships in 3-6 days

0

45

Toro 48-2130

HHMS SCREW

$

$

Not available

46

Toro 48-2140

WASHER

$

$

Not available
