51616 (TC 650) - Toro String Trimmer (SN: 003000001 - 003999999) (1983) ENGINE HOUSING ASSEMBLY Parts Diagram

String Trimmer

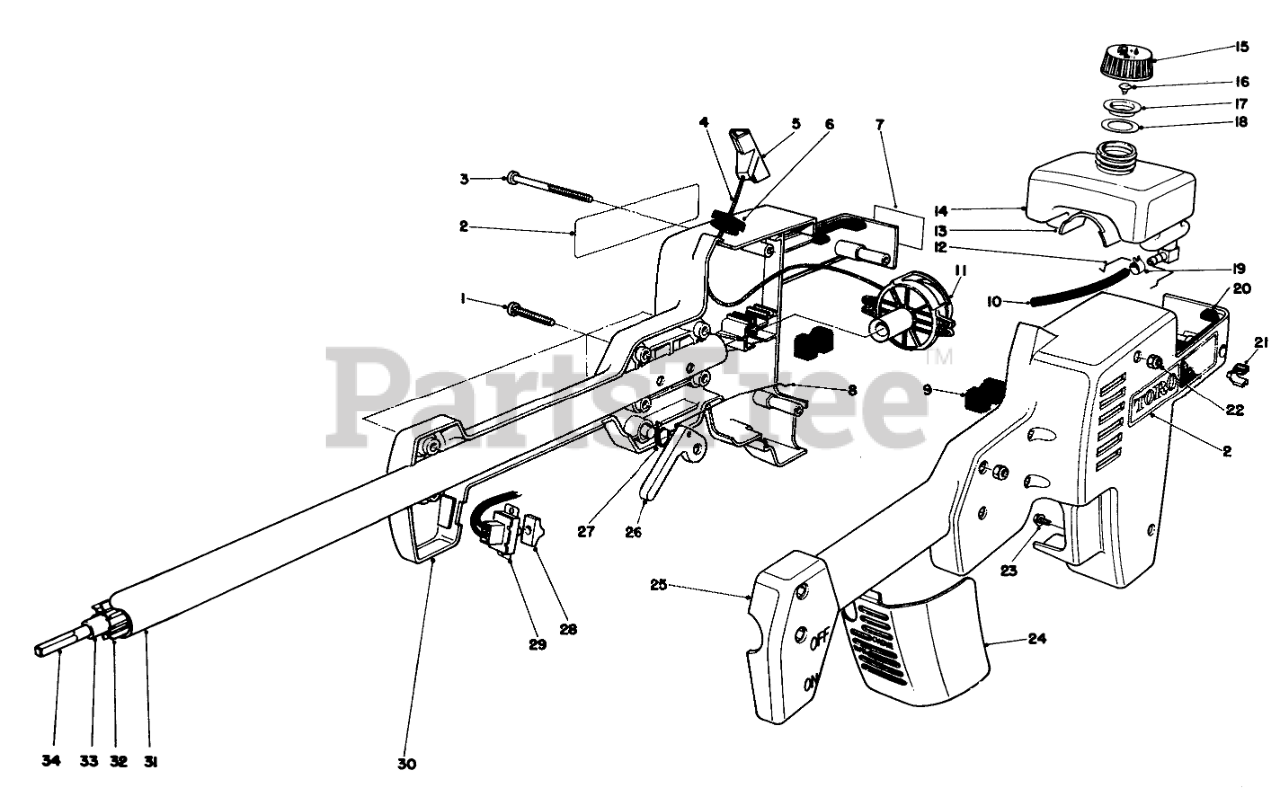

ENGINE HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 46-9780

Screw-Machine Cross Recess Pan Hd.

$

$

Not available

2

Toro 47-4690

Decal-TC 650

$

$

Not available

3

Toro 46-9770

Screw-Machine Cross Recess Pan Hd.

$

$

Not available

4

Toro 34-7910

Rope-Starter
(Superseded to 65-3270)

$

$

Not available

5

Toro 38-6570

Handle

$

$

Not available

6

Toro 45-1580

Bushing Rope

$

$

Not available

7

Toro 42-6250

Decal-Hot
(Superseded to 53-7190)

$

$

Not available

8

Toro 44-7430

Link-Throttle

$

$

Not available

9

Toro 42-5660

Isolation Mount

$

$

Not available

10

Toro 46-4830

Gas Line

$

$

Not available

11

Toro 45-1730

Recoil Assembly (Incl. Ref. #4-6)

$

$

Not available

12

Toro 42-6230

Clip-Crankcase Pad

$

$

Not available

13

Toro 42-6240

Crankcase Pad

$

$

Not available

14

Toro 42-5600

GAS TANK

$

$

Not available

15

Toro 42-5880

Gas Cap Assembly (Incl. Ref. #16-18)
(Superseded to 52-3610)

$29.99

$

Usually ships in 3-6 days

0

16

Toro 42-5760

Valve
(Superseded to 42-5600)

$

$

Not available

17

Toro 42-5680

Insert

$

$

Not available

18

Toro 42-5910

Gasket
(Superseded to 80-4730)

$

$

Not available

19

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 1 left!

0

20

Toro 42-5590

Bumper-Gas Tank

$

$

Not available

21

Toro 42-6040

Grommet

$

$

Not available

22

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

24

Toro 44-6720

Cover-Air Cleaner

$

$

Not available

25

Toro 44-6520

Housing Engine L.H.

$

$

Not available

26

Toro 42-5630

Lever Throttle

$

$

Not available

27

Toro 42-5640

TORSION SPRING

$32.99

$

Usually ships in 3-6 days

0

28

Toro 218-507

SWITCH COVER-BLACK

$

$

Not available

29

Toro 42-6000

SWITCH

$17.99

$

In Stock, Qty 10

0

30

Toro 11-2279

Housing-Engine R.H. (Incl. Ref. #7)

$

$

Not available

31

Toro 46-9540

Tube-Upper

$

$

Not available

32

Toro 47-2820

Spacer-Shaft

$

$

Not available

33

Toro 47-2770

Casing-Shaft

$

$

Not available

34

Toro 47-2720

Flexshaft

$

$

Not available
