51613 (TC 350) - Toro String Trimmer (SN: 003000001 - 003999999) (1983) SHAFT & TUBE ASSEMBLY Parts Diagram

String Trimmer

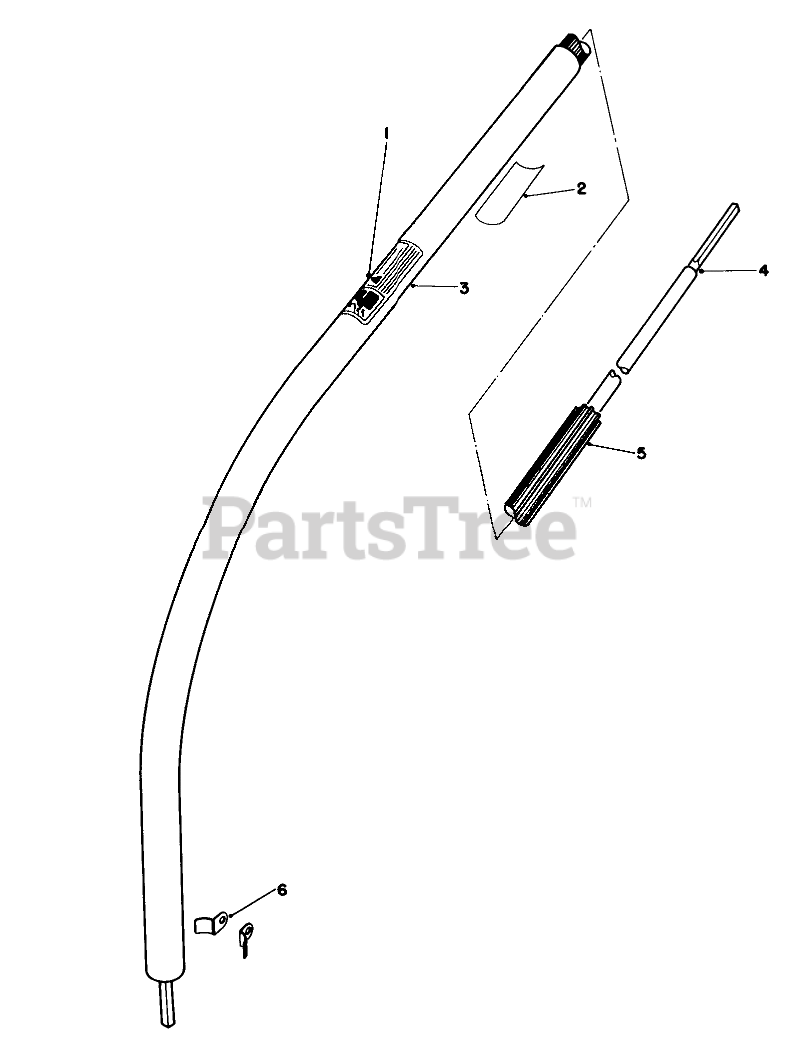

SHAFT & TUBE ASSEMBLY Parts Diagram

  • Title
1

Toro 42-5850

Decal Warning

$

$

Not available

2

Toro 34-3270

REP. SERIAL PLT

$

$

Not available

3

Toro 11-4839

Tube-Lower Shaft Housing Assembly (Incl. Ref. #1)

$

$

Not available

4

Toro 47-5470

Shaft-Flex Assembly (Incl. Ref. #5)
(Superseded to 99-5269)

$

$

Not available

5

Casing-Flex Shaft

$

$

Not available

6

Toro 46-9890

LOWER TUBE RETAINER

$

$

Not available
