51608 (TC 800) - Toro String Trimmer (SN: 003000001 - 003999999) (1983) DRIVE SHAFT & TRIMMER HEAD ASSEMBLY Parts Diagram

String Trimmer

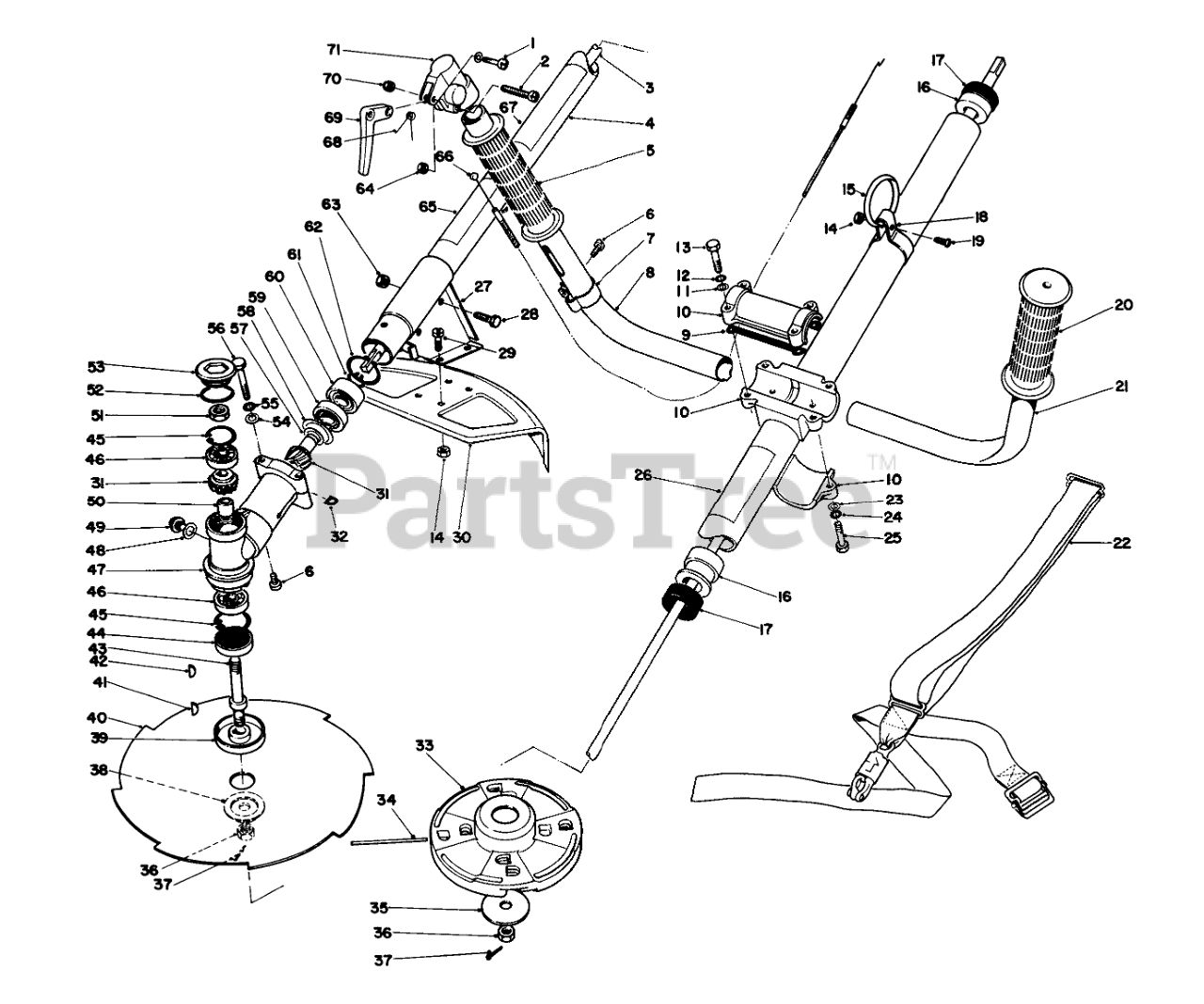

DRIVE SHAFT & TRIMMER HEAD ASSEMBLY Parts Diagram

  • Title

1

Toro 41-3460

Screw

$

$

Not available

2

Toro 46-4390

Screw w/Washer

$

$

Not available

3

Toro 41-4270

Shaft-Driving

$

$

Not available

4

Toro 46-4360

Housing Drive Shaft (Incl. Ref. #26 & 27)

$

$

Not available

5

Toro 235-25

Right Hand Grip

$

$

Not available

6

Toro 41-5190

SCREW

$

$

Not available

7

Toro 41-3450

Band

$

$

Not available

8

Toro 44-6840

Handle R.H.

$

$

Not available

9

Toro 414240

Shim Washer

$

$

Currently unavailable

10

Toro 41-4200

Bracket Assembly, Handle (Incl. Ref. #26 & 27)

$

$

Not available

11

Toro 41-5440

WASHER

$

$

Not available

12

Toro 41-5490

Washer
(Superseded to 71-1150)

$

$

Not available

13

Toro 41-4810

Bolt

$

$

Not available

14

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

15

Toro 44-7540

RING-HARNESS

$

$

Not available

16

Toro 41-4320

Ring

$

$

Not available

17

Toro 414310

Bushing

$

$

Currently unavailable

18

Toro 44-2430

HARNESS CLAMP

$19.99

$

Usually ships in 3-6 days

0

19

Toro 3251-4

SCREW-SRH

$0.99

$

In Stock, only 2 left!

0

20

Toro 235-24

LH GRIP

$

$

Not available

21

Toro 44-6850

Handle L.H.

$

$

Not available

22

Toro 46-2960

Deluxe Harness
(Superseded to 682075)

$

$

Not available

Toro 46-2950

Shoulder Strap

Note: Not illustrated

$

$

Not available

23

Toro 41-5450

Washer
(Superseded to 3256-60)

$2.49

$

Usually ships in 3-6 days

0

24

Toro 41-5500

Washer

$

$

Not available

25

Toro 41-4860

Bolt

$

$

Not available

26

Toro 44-9950

Decal

$

$

Not available

27

Toro 46-9740

Bracket Shield

$

$

Not available

28

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

29

Toro 3251-2

SCREW-PPH

$0.99

$

In Stock, Qty 5

0

30

Toro 41-4650

Shield

$

$

Not available

31

Toro 41-4380

Gear Set

$

$

Not available

32

Toro 41-4370

Spacer

$

$

Not available

33

Toro 46-2810

FIXED LINE CUTTER HD PK

$

$

Not available

34

Toro 47-2260

LINE PACK (100)

$199.99

$

Usually ships in 3-6 days

0

Toro 46-2730

BULK LINE W/LABEL

Note: Not illustrated

$

$

Not available

Toro 42-0580

CUTTING LINE PKG(100)

Note: Not illustrated

$

$

Not available

Toro 46-2740

3 LB BULK LINE W/LABEL

Note: Not illustrated

$

$

Not available

35

Toro 414430

Washer

$

$

Currently unavailable

36

Toro 41-5410

NUT

$8.99

$

Usually ships in 3-6 days

0

37

Toro 3272-3

1/16 X 1 LG COTTER PIN

$2.99

$

In Stock, only 1 left!

0

38

Toro 41-4440

Blade Adapter Kit (Incl. Ref. #36 & 37)

$95.99

$

Usually ships in 3-6 days

0

39

Toro 41-4420

Plate-Blade Fixing

$

$

Not available

40

Toro 40-3160

Weed Blade

$

$

Not available

Toro 40-3170

80 Tooth Blade
(Superseded to 51-1250)

Note: Not illustrated

$108.99

$

Usually ships in 3-6 days

0

41

Toro 41-4490

Woodruff Key

$

$

Not available

42

Toro 41-0210

Woodruff Key

$

$

Not available

43

Toro 41-4400

Shaft, Power Take Off

$

$

Not available

44

Toro 41-0270

Oil Seal

$

$

Not available

45

Toro 41-5570

Circlip

$

$

Not available

46

Toro 41-5650

Ball Bearing

$

$

Not available

47

Toro 41-4520

Housing Gear

$

$

Not available

48

Toro 41-4580

Gasket

$

$

Not available

49

Toro 41-4570

Plug

$

$

Not available

50

Toro 41-4450

Spacer

$

$

Not available

51

Toro 41-5400

Nut

$

$

Not available

52

Toro 41-4560

O-Ring

$

$

Not available

53

Toro 41-4550

Lid, Gear Housing

$

$

Not available

54

Toro 41-5440

WASHER

$

$

Not available

55

Toro 41-5490

Washer
(Superseded to 71-1150)

$

$

Not available

56

Toro 41-4820

Bolt

$

$

Not available

57

Toro 41-4470

Washer

$

$

Not available

58

Toro 41-4460

Washer

$

$

Not available

59

Toro 41-5600

Ball Bearing

$

$

Not available

60

Toro 41-5620

Ball Bearing

$

$

Not available

61

Toro 41-5550

Circlip

$

$

Not available

62

Toro 41-5560

Circlip

$

$

Not available

63

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

64

Toro 41-5350

Nut
(Superseded to 47-6390)

$

$

Not available

65

Toro 44-6810

Decal-TC800

$

$

Not available

66

Toro 41-3280

Throttle Cable

$

$

Not available

67

Toro 42-5850

Decal Warning

$

$

Not available

68

Toro 41-3420

Return Spring

$

$

Not available

69

Toro 41-3340

THROTTLE LEVER

$

$

Not available

70

Toro 414250

Nut

$

$

Currently unavailable

71

Toro 41-3400

Bracket-Throttle Trigger

$

$

Not available
