51608 (TC 800) - Toro String Trimmer (SN: 002000001 - 002999999) (1982) ENGINE ASSEMBLY Parts Diagram

String Trimmer

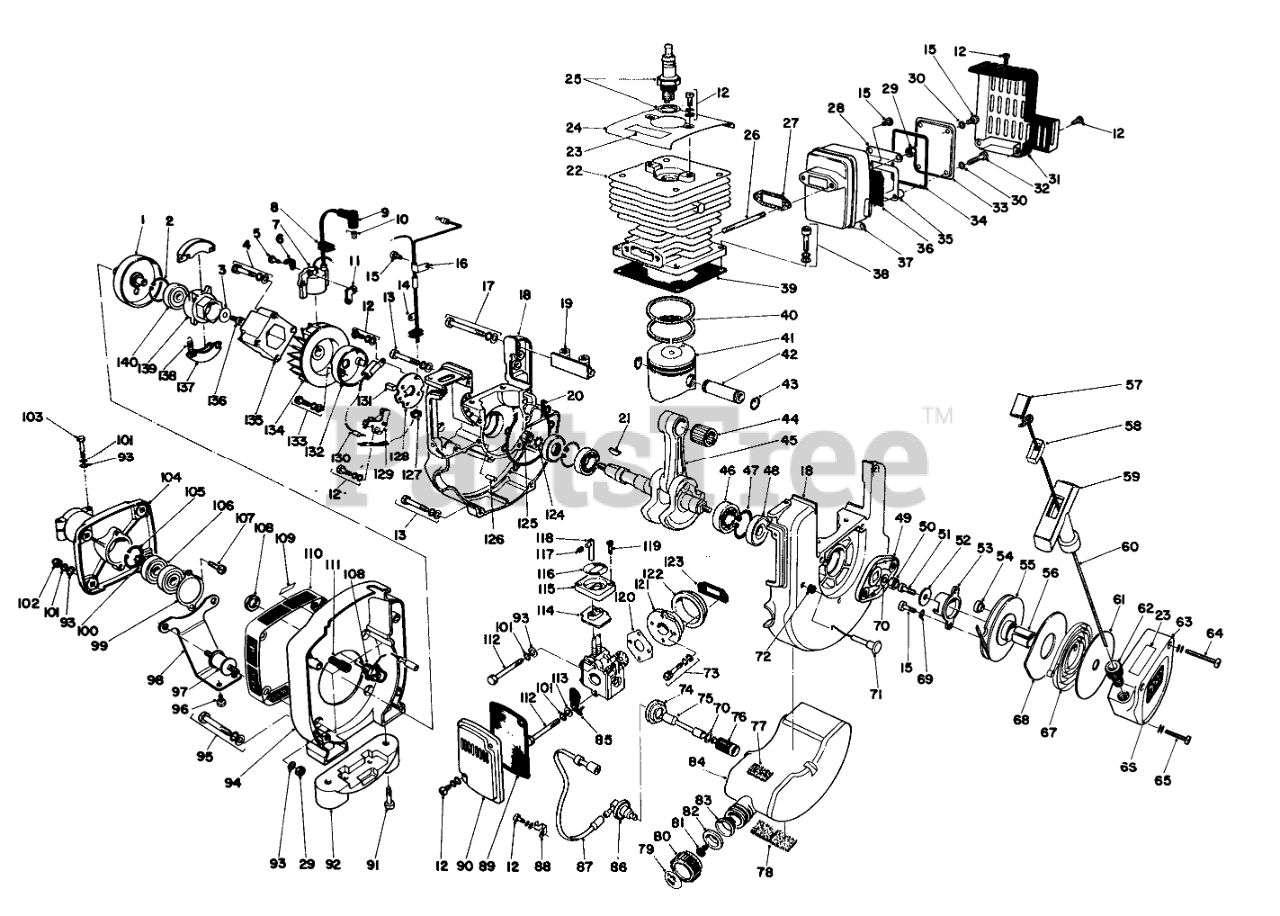

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 41-2690

Clutch Drum

$

$

Not available

2

Toro 41-5570

Circlip

$

$

Not available

3

Toro 41-2900

Washer

$

$

Not available

4

Toro 41-4940

Hex Socket Hd. Bolt w/Washer

$

$

Not available

5

Toro 41-2600

Screw

$

$

Not available

6

Toro 41-2580

Clamp

$

$

Not available

7

Toro 41-2340

Ignition Coil

$

$

Not available

8

Toro 41-2290

Grommet

$

$

Not available

9

Toro 41-2520

Cap-Spark Plug

$

$

Not available

10

Toro 41-2510

Coil Spring-Plug Cap

$

$

Not available

11

Toro 41-2310

Spacer

$

$

Not available

12

Toro 41-5160

SCREW

$

$

Not available

13

Toro 41-4900

Hex Socket Hd. Bolt w/Washer

$

$

Not available

14

Toro 46-4330

Clip

$

$

Not available

15

Toro 41-5010

Screw

$

$

Not available

16

Toro 46-4320

Clamp

$

$

Not available

17

Toro 41-4910

Hex Socket Hd. Bolt w/Washer

$

$

Not available

18

Toro 41-0250

Crankcase Set

$

$

Not available

19

Toro 41-2050

Muffler Support

$

$

Not available

20

Toro 41-0360

Gasket-Crankcase

$

$

Not available

21

Toro 41-4490

Woodruff Key

$

$

Not available

22

Toro 41-0510

Cylinder

$

$

Not available

23

Toro 42-6210

Decal-Hot Surface
(Superseded to 65-2690)

$5.49

$

In Stock, only 4 left!

0

24

Toro 41-0610

CYLINDER COVER

$

$

Not available

25

Toro 41-2500

Spark Plug
(Superseded to 45-0320)

$3.49

$

Usually ships in 3-6 days

0

26

Toro 41-0540

Stud Bolt

$

$

Not available

27

Toro 41-1910

Gasket, Muffler

$

$

Not available

28

Toro 41-2040

Washer

$

$

Not available

29

Toro 41-4250

Nut

$

$

Not available

30

Toro 41-5530

Washer

$

$

Not available

31

Toro 46-4260

Muffler Cover

$

$

Not available

32

Toro 41-5040

Screw

$

$

Not available

33

Toro 41-2150

Muffler Lid

$

$

Not available

34

Toro 41-2230

Gasket-Muffler Lid

$

$

Not available

35

Toro 41-2220

Screen Holder

$

$

Not available

36

Toro 41-2190

Screen

$

$

Not available

37

Toro 46-4250

Muffler

$

$

Not available

38

Toro 41-4930

Screen, Inlet

$

$

Not available

39

Toro 41-0480

Gasket, Cylinder Base

$

$

Not available

40

Toro 41-0050

Piston Ring

$

$

Not available

41

Toro 41-0030

Piston

$

$

Not available

42

Toro 41-0120

Piston Pin

$

$

Not available

43

Toro 41-0150

Circlip, Piston Pin

$

$

Not available

44

Toro 41-0090

Needle Bearing

$

$

Not available

45

Toro 41-0180

Crankshaft Assembly

$

$

Not available

46

Toro 41-5670

Bearing

$

$

Not available

47

Toro 41-5580

Circlip

$

$

Not available

48

Toro 41-0280

Oilseal

$

$

Not available

49

Toro 41-3250

Ratchet Assembly

$

$

Not available

50

Toro 41-6150

Locknut

$

$

Not available

51

Toro 41-4880

Lever, Metering

$

$

Not available

52

Toro 41-2910

Washer

$

$

Not available

53

Toro 41-3200

Pawl Catcher

$

$

Not available

54

Toro 41-3230

Clip

$

$

Not available

55

Toro 41-2940

RECOIL DRUM

$

$

Not available

56

Toro 41-2950

DRUM BSHG

$

$

Not available

57

Toro 41-3220

Cap, Starter Handle

$

$

Not available

58

Toro 41-3110

End Piece

$

$

Not available

59

Toro 41-3090

Starter Handle

$

$

Not available

60

Toro 41-3040

Starter Rope
(Superseded to 613773)

$34.99

$

Usually ships in 3-6 days

0

61

Toro 41-3010

Side Plate

$

$

Not available

62

Toro 41-3060

Rope Guide
(Superseded to 46-3870)

$

$

Not available

63

Toro 41-2860

Starter Case

$

$

Not available

Toro 41-2830

Starter Assy. (Incl. Ref. #15. 51-63 & 67-69)

Note: Not illustrated

$

$

Not available

64

Toro 41-5060

Screw w/Washer

$

$

Not available

65

Toro 41-5170

SCREW

$

$

Not available

66

Toro 44-0860

Decal-Toro

$

$

Not available

67

Toro 41-3000

REWIND SPRING

$

$

Not available

68

Toro 41-3190

SIDE PLATE (B)

$

$

Not available

69

Toro 41-5480

Spring Washer

$

$

Not available

70

Toro 41-5450

Washer
(Superseded to 3256-60)

$2.49

$

Usually ships in 3-6 days

0

71

Toro 41-3560

Choke Rod

$

$

Not available

72

Toro 41-3650

Grommet

$

$

Not available

73

Toro 41-4890

Hex Socket Hd. Bolt w/Washer

$

$

Not available

74

Toro 41-1860

Seal

$

$

Not available

75

Toro 41-1810

Fuel Pipe, Inner

$

$

Not available

76

Toro 46-4280

Fuel Strainer
(Superseded to 43-9660)

$

$

Not available

77

Toro 41-1790

Cushion

$

$

Not available

78

Toro 41-1770

Cushion

$

$

Not available

79

Toro 46-3900

Decal Fuel Mix

$

$

Not available

80

Toro 41-1630

Cap-Fuel Tank
(Superseded to 43-9940)

$

$

Not available

Toro 41-2170

Cap Assembly, Fuel Tank (Incl. Ref. #80-82)
(Superseded to 43-9940)

Note: Not illustrated

$

$

Not available

81

Toro 41-1680

Check Valve
(Superseded to 54-5610)

$20.99

$

Usually ships in 3-6 days

0

82

Toro 41-1590

CHECK VALVE HOLDER

$

$

Not available

83

Toro 46-4300

Rubber Ring

$

$

Not available

84

Toro 41-1570

Fuel Tank

$

$

Not available

85

Toro 46-4270

Choke Shutter

$

$

Not available

86

Toro 41-1840

Connector

$

$

Not available

87

Toro 41-1850

Fuel Pipe, Outer

$

$

Not available

88

Toro 41-1870

Clamp

$

$

Not available

89

Toro 41-1430

Air Filter

$

$

Not available

90

Toro 41-1470

Cover, Air Cleaner

$

$

Not available

91

Toro 41-5090

Screw

$

$

Not available

92

Toro 41-4600

Cushion

$

$

Not available

93

Toro 41-5440

WASHER

$

$

Not available

94

Toro 46-4350

Fan Cover

$

$

Not available

95

Toro 41-4950

Clip

$

$

Not available

96

Toro 41-5030

Screw

$

$

Not available

97

Toro 41-4590

Cushion

$

$

Not available

98

Toro 41-4610

Bracket

$

$

Not available

99

Toro 41-4360

Bearing Retainer

$

$

Not available

100

Toro 41-5550

Circlip

$

$

Not available

101

Toro 41-5490

Washer
(Superseded to 71-1150)

$

$

Not available

102

Toro 41-3930

Capnut

$

$

Not available

103

Toro 41-4820

Bolt

$

$

Not available

104

Toro 41-4330

Case, Clutch Drum

$

$

Not available

105

Toro 41-5560

Circlip

$

$

Not available

106

Toro 41-5630

Ball Bearing

$

$

Not available

107

Toro 41-5020

Screw

$

$

Not available

108

Toro 41-2670

Switch

$

$

Not available

109

Toro 41-4750

STOP SWITCH DECAL

$

$

Not available

110

Toro 41-0450

Dust Seal

$

$

Not available

111

Toro 41-3500

Tube

$

$

Not available

112

Toro 41-4830

Bolt

$

$

Not available

113

Toro 41-3610

CHOKE SHUTTER SPACER

$

$

Not available

114

Toro 41-1150

Grommet

$

$

Not available

115

Toro 41-1160

Frame

$

$

Not available

116

Toro 41-4740

Decal Guide

$

$

Not available

117

Toro 41-1140

Knob
(Superseded to 41-1130)

$

$

Not available

118

Toro 41-1130

Adjuster

$

$

Not available

119

Toro 41-4990

Screw

$

$

Not available

120

Toro 41-1240

CARB PACKING GASKET

$

$

Not available

121

Toro 41-1180

Insulator

$

$

Not available

122

Toro 41-1220

Grommet

$

$

Not available

123

Toro 41-1190

CARB GASKET

$

$

Not available

124

Toro 41-5540

Lockwasher

$

$

Not available

125

Toro 41-5370

Nut

$

$

Not available

126

Toro 41-0330

Knockpin

$

$

Not available

127

Toro 41-0420

Plug

$

$

Not available

128

Toro 41-2370

Stator Plate

$

$

Not available

129

Toro 41-2270

CONTACT POINT

$126.99

$

Usually ships in 3-6 days

0

130

Toro 41-2360

CONDENSER

$96.99

$

Usually ships in 3-6 days

0

131

Toro 41-2380

Oil Pad

$

$

Not available

132

Toro 41-2430

Breaker Cover

$

$

Not available

133

Toro 41-4980

Screw w/Washer

$

$

Not available

134

Toro 46-4310

Flywheel

$

$

Not available

135

Toro 41-4260

Coupler

$

$

Not available

136

Toro 41-4920

Hex Socket Hd. Bolt

$

$

Not available

137

Toro 41-2700

Clutch Shoe

$

$

Not available

138

Toro 41-2780

CLUTCH SPRING

$

$

Not available

139

Toro 41-2770

Clutch Boss

$

$

Not available

140

Toro 41-5690

Ball Bearing

$

$

Not available

Toro 41-2680

Clutch Assembly (Incl. Ref. #137-139)

Note: Not illustrated

$

$

Not available

Toro 41-6810

Tool Kit

Note: Not illustrated

$

$

Not available
