51608 (TC 800) - Lawn-Boy String Trimmer (SN: 002000001 - 002999999) (1982) TAP & TRIM HEAD NO. 41-6220 (OPTIONAL) Parts Diagram

String Trimmer

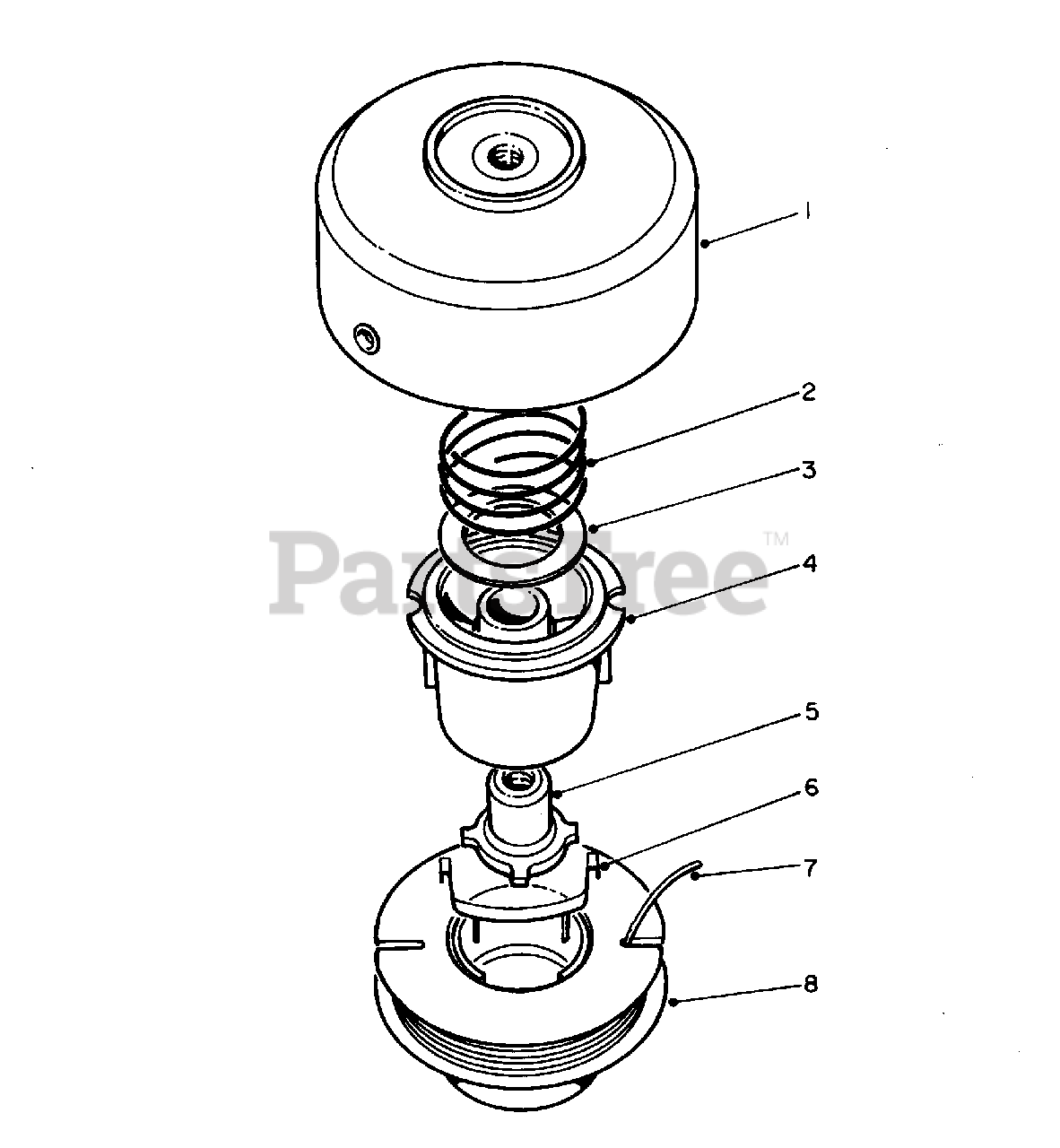

TAP & TRIM HEAD NO. 41-6220 (OPTIONAL) Parts Diagram

  • Title
1

Lawn-Boy 41-6230

Drum w/Eyelet

$

$

Not available

2

$14.99

$

In Stock, only 2 left!

0

3

$1.49

$

In Stock, only 1 left!

0

4

Lawn-Boy 33-6230

Spool Core

$

$

Not available

5

Lawn-Boy 33-6470

Driver L.H.

$

$

Not available

6

Lawn-Boy 33-8940

Saddle C

$

$

Not available

7

Lawn-Boy 41-6820

1 Lb. Filament Line Pack (.0

$42.99

$

Usually ships in 3-6 days

0

Lawn-Boy 41-6830

3 Lb. Filament Line Pack (.0
(Superseded to 41-6820)

Note: Not Illustrated

$42.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 46-2830

Prewound Spool
(Superseded to 83-4660)

$

$

Not available

Lawn-Boy 41-6400

Spool Pack (4 Prewound Spools)

Note: Not Illustrated

$

$

Currently unavailable

Lawn-Boy 29-7380

Empty Spool
(Superseded to 29-7385)

Note: Not Illustrated

$11.99

$

In Stock, only 2 left!

0
