51608 (TC 800) - Lawn-Boy String Trimmer (SN: 002000001 - 002999999) (1982) ENGINE ASSEMBLY Parts Diagram

String Trimmer

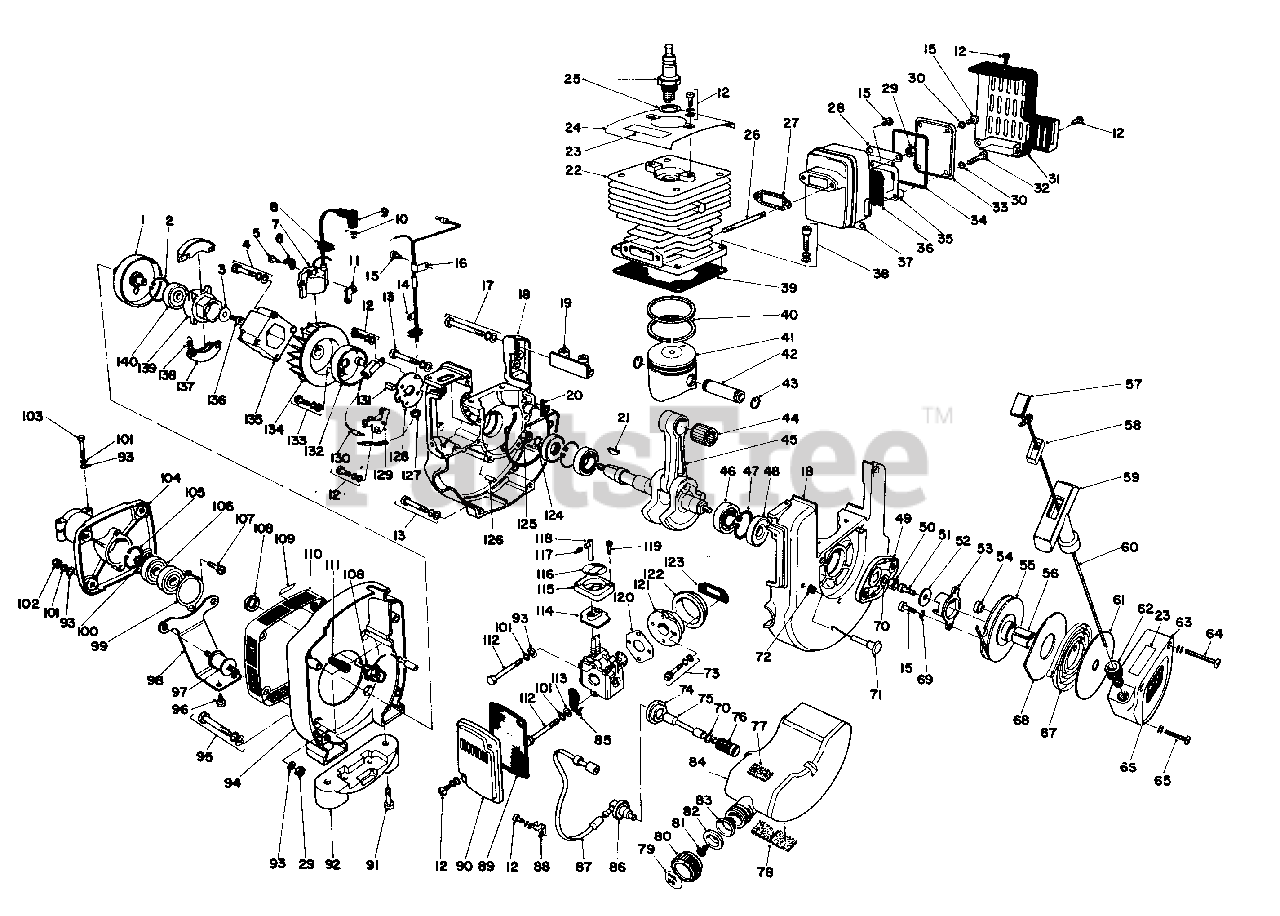

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 41-2690

Clutch Drum

$

$

Not available

2

Lawn-Boy 41-5570

Circlip

$

$

Not available

3

Lawn-Boy 41-2900

Washer

$

$

Not available

4

Lawn-Boy 41-4940

Hex Socket Hd. Bolt w/Washer

$

$

Not available

5

Lawn-Boy 41-2600

Screw

$

$

Not available

6

Lawn-Boy 41-2580

Clamp

$

$

Not available

7

Lawn-Boy 41-2340

Ignition Coil

$

$

Not available

8

Lawn-Boy 41-2290

Grommet

$

$

Not available

9

Lawn-Boy 41-2520

Cap, Spark Plug

$

$

Not available

10

Lawn-Boy 41-2510

Coil Spring, Plug Cap

$

$

Not available

11

Lawn-Boy 41-2310

Spacer

$

$

Not available

12

Lawn-Boy 41-5160

Screw w/Washer

$

$

Not available

13

Lawn-Boy 41-4900

Hex Socket Hd. Bolt w/Washer

$

$

Not available

14

Lawn-Boy 46-4330

Clip

$

$

Not available

15

Lawn-Boy 41-5010

Screw

$

$

Not available

16

Lawn-Boy 46-4320

Clamp

$

$

Not available

17

Lawn-Boy 41-4910

Hex Socket Hd. Bolt w/Washer

$

$

Not available

18

Lawn-Boy 41-0250

Crankcase Set

$

$

Not available

19

Lawn-Boy 41-2050

Muffler Support

$

$

Not available

20

Lawn-Boy 41-0360

Gasket-Crankcase

$

$

Not available

21

Lawn-Boy 41-4490

Woodruff Key

$

$

Not available

22

Lawn-Boy 41-0510

Cylinder

$

$

Not available

23

Lawn-Boy 42-6210

Hot Surface Decal
(Superseded to 65-2690)

$5.49

$

In Stock, only 4 left!

0

24

Lawn-Boy 41-0610

Cylinder Cover

$

$

Not available

25

Lawn-Boy 41-2500

Spark Plug
(Superseded to 45-0320)

$3.49

$

Usually ships in 3-6 days

0

26

Lawn-Boy 41-0540

Stud Bolt

$

$

Not available

27

Lawn-Boy 41-1910

Gasket, Muffler

$

$

Not available

28

Lawn-Boy 41-2040

Washer

$

$

Not available

29

Lawn-Boy 41-4250

Locknut

$

$

Not available

30

Lawn-Boy 41-5530

Lockwasher

$

$

Not available

31

Lawn-Boy 46-4260

Muffler Cover

$

$

Not available

32

Lawn-Boy 41-5040

Screw

$

$

Not available

33

Lawn-Boy 41-2150

Muffler Lid

$

$

Not available

34

Lawn-Boy 41-2230

Gasket-Muffler Lid

$

$

Not available

35

Lawn-Boy 41-2220

Screen Holder

$

$

Not available

36

Lawn-Boy 41-2190

Screen

$

$

Not available

37

Lawn-Boy 46-4250

Muffler

$

$

Not available

38

Lawn-Boy 41-4930

Hex Socket Hd. Bolt w/Washer

$

$

Not available

39

Lawn-Boy 41-0480

Gasket, Cylinder Base

$

$

Not available

40

Lawn-Boy 41-0050

Piston Ring

$

$

Not available

41

Lawn-Boy 41-0030

Piston

$

$

Not available

42

Lawn-Boy 41-0120

Piston Pin

$

$

Not available

43

Lawn-Boy 41-0150

Circlip, Piston Pin

$

$

Not available

44

Lawn-Boy 41-0090

Needle Bearing

$

$

Not available

45

Lawn-Boy 41-0180

Crankshaft Assembly

$

$

Not available

46

Lawn-Boy 41-5670

Ball Bearing

$

$

Not available

47

Lawn-Boy 41-5580

Circlip

$

$

Not available

48

Lawn-Boy 41-0280

Oil Seal

$

$

Not available

49

Lawn-Boy 41-3250

Ratchet Assembly

$

$

Not available

50

Lawn-Boy 41-6150

Locknut

$

$

Not available

51

Lawn-Boy 41-4880

Hex Socket Hd. Bolt

$

$

Not available

52

Lawn-Boy 41-2910

Washer

$

$

Not available

53

Lawn-Boy 41-3200

Pawl Catcher

$

$

Not available

54

Lawn-Boy 41-3230

Clip

$

$

Not available

55

Lawn-Boy 41-2940

Recoil Drum

$

$

Not available

56

Lawn-Boy 41-2950

Bushing

$

$

Not available

57

Lawn-Boy 41-3220

Cap, Starter Handle

$

$

Not available

58

Lawn-Boy 41-3110

End Piece

$

$

Not available

59

Lawn-Boy 41-3090

Starter Handle

$

$

Not available

60

Lawn-Boy 41-3040

Starter Rope
(Superseded to 613773)

$34.99

$

Usually ships in 3-6 days

0

61

Lawn-Boy 41-3010

Side Plate

$

$

Not available

62

Lawn-Boy 41-3060

Rope Guide
(Superseded to 46-3870)

$

$

Not available

63

Lawn-Boy 41-2860

Starter Case

$

$

Not available

Lawn-Boy 41-2830

Starter Assy. (Incl. Ref. #15. 51-63 & 67-69)

Note: Not Illustrated

$

$

Not available

64

Lawn-Boy 41-5060

Screw w/Washer

$

$

Not available

65

Lawn-Boy 41-5170

Screw w/Washer

$

$

Not available

66

Lawn-Boy 44-0860

Decal-Toro

$

$

Not available

67

Lawn-Boy 41-3000

Rewind Spring

$

$

Not available

68

Lawn-Boy 41-3190

Side Plate

$

$

Not available

69

Lawn-Boy 41-5480

Spring Washer

$

$

Not available

70

Lawn-Boy 41-5450

Washer
(Superseded to 3256-60)

$2.49

$

Usually ships in 3-6 days

0

71

Lawn-Boy 41-3560

Choke Rod

$

$

Not available

72

Lawn-Boy 41-3650

Grommet

$

$

Not available

73

Lawn-Boy 41-4890

Hex Socket Hd. Bolt w/Washer

$

$

Not available

74

Lawn-Boy 41-1860

Seal

$

$

Not available

75

Lawn-Boy 41-1810

Fuel Pipe, Inner

$

$

Not available

76

Lawn-Boy 46-4280

Fuel Strainer
(Superseded to 43-9660)

$

$

Not available

77

Lawn-Boy 41-1790

Cushion

$

$

Not available

78

Lawn-Boy 41-1770

Cushion

$

$

Not available

79

Lawn-Boy 46-3900

Decal-Fuel Mix

$

$

Not available

80

Lawn-Boy 41-1630

Cap, Fuel Tank
(Superseded to 43-9940)

$

$

Not available

Lawn-Boy 41-2170

Cap Assembly, Fuel Tank (Incl. Ref. #80-82)
(Superseded to 43-9940)

Note: Not Illustrated

$

$

Not available

81

Lawn-Boy 41-1680

Check Valve
(Superseded to 54-5610)

$20.99

$

Usually ships in 3-6 days

0

82

Lawn-Boy 41-1590

Holder, Check Valve

$

$

Not available

83

Lawn-Boy 46-4300

Rubber Ring

$

$

Not available

84

Lawn-Boy 41-1570

Fuel Tank

$

$

Not available

85

Lawn-Boy 46-4270

Choke Shutter

$

$

Not available

86

Lawn-Boy 41-1840

Connector

$

$

Not available

87

Lawn-Boy 41-1850

Fuel Pipe, Outer

$

$

Not available

88

Lawn-Boy 41-1870

Clamp

$

$

Not available

89

Lawn-Boy 41-1430

Air Filter

$

$

Not available

90

Lawn-Boy 41-1470

Cover, Air Cleaner

$

$

Not available

91

Lawn-Boy 41-5090

Screw

$

$

Not available

92

Lawn-Boy 41-4600

Cushion

$

$

Not available

93

Lawn-Boy 41-5440

Washer

$

$

Not available

94

Lawn-Boy 46-4350

Fan Cover

$

$

Not available

95

Lawn-Boy 41-4950

Hex Socket Hd. Bolt w/Washer

$

$

Not available

96

Lawn-Boy 41-5030

Screw

$

$

Not available

97

Lawn-Boy 41-4590

Cushion

$

$

Not available

98

Lawn-Boy 41-4610

Bracket

$

$

Not available

99

Lawn-Boy 41-4360

Bearing Retainer

$

$

Not available

100

Lawn-Boy 41-5550

Circlip

$

$

Not available

101

Lawn-Boy 41-5490

Washer
(Superseded to 71-1150)

$

$

Not available

102

Lawn-Boy 41-3930

Cap Nut

$

$

Not available

103

Lawn-Boy 41-4820

Bolt

$

$

Not available

104

Lawn-Boy 41-4330

Case, Clutch Drum

$

$

Not available

105

Lawn-Boy 41-5560

Circlip

$

$

Not available

106

Lawn-Boy 41-5630

Ball Bearing

$

$

Not available

107

Lawn-Boy 41-5020

Screw

$

$

Not available

108

Lawn-Boy 41-2670

Switch

$

$

Not available

109

Lawn-Boy 41-4750

Decal-Switch

$

$

Not available

110

Lawn-Boy 41-0450

Dust Seal

$

$

Not available

111

Lawn-Boy 41-3500

Tube

$

$

Not available

112

Lawn-Boy 41-4830

Bolt

$

$

Not available

113

Lawn-Boy 41-3610

Spacer

$

$

Not available

114

Lawn-Boy 41-1150

Grommet

$

$

Not available

115

Lawn-Boy 41-1160

Frame

$

$

Not available

116

Lawn-Boy 41-4740

Decal-Guide

$

$

Not available

117

Lawn-Boy 41-1140

Knob
(Superseded to 41-1130)

$

$

Not available

118

Lawn-Boy 41-1130

Adjuster

$

$

Not available

119

Lawn-Boy 41-4990

Screw

$

$

Not available

120

Lawn-Boy 41-1240

Gasket

$

$

Not available

121

Lawn-Boy 41-1180

Insulator

$

$

Not available

122

Lawn-Boy 41-1220

Grommet

$

$

Not available

123

Lawn-Boy 41-1190

Gasket

$

$

Not available

124

Lawn-Boy 41-5540

Lockwasher

$

$

Not available

125

Lawn-Boy 41-5370

Nut

$

$

Not available

126

Lawn-Boy 41-0330

Knockpin

$

$

Not available

127

Lawn-Boy 41-0420

Plug

$

$

Not available

128

Lawn-Boy 41-2370

Stator Plate

$

$

Not available

129

Lawn-Boy 41-2270

Breaker Point Set

$126.99

$

Usually ships in 3-6 days

0

130

Lawn-Boy 41-2360

Condenser

$96.99

$

Usually ships in 3-6 days

0

131

Lawn-Boy 41-2380

Oil Pad

$

$

Not available

132

Lawn-Boy 41-2430

Breaker Cover

$

$

Not available

133

Lawn-Boy 41-4980

Screw w/Washer

$

$

Not available

134

Lawn-Boy 46-4310

Flywheel

$

$

Not available

135

Lawn-Boy 41-4260

Coupler

$

$

Not available

136

Lawn-Boy 41-4920

Hex Socket Hd. Bolt

$

$

Not available

137

Lawn-Boy 41-2700

Clutch Shoe

$

$

Not available

138

Lawn-Boy 41-2780

Clutch Spring

$

$

Not available

139

Lawn-Boy 41-2770

Clutch Boss

$

$

Not available

140

Lawn-Boy 41-5690

Ball Bearing

$

$

Not available

Lawn-Boy 41-2680

Clutch Assembly (Incl. Ref. #137-139)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 41-6810

Tool Set (Optional)

Note: Not Illustrated

$

$

Not available
