51607 (TC 700) - Toro String Trimmer (SN: 002000001 - 002999999) (1982) HANDLE ASSEMBLY Parts Diagram

String Trimmer

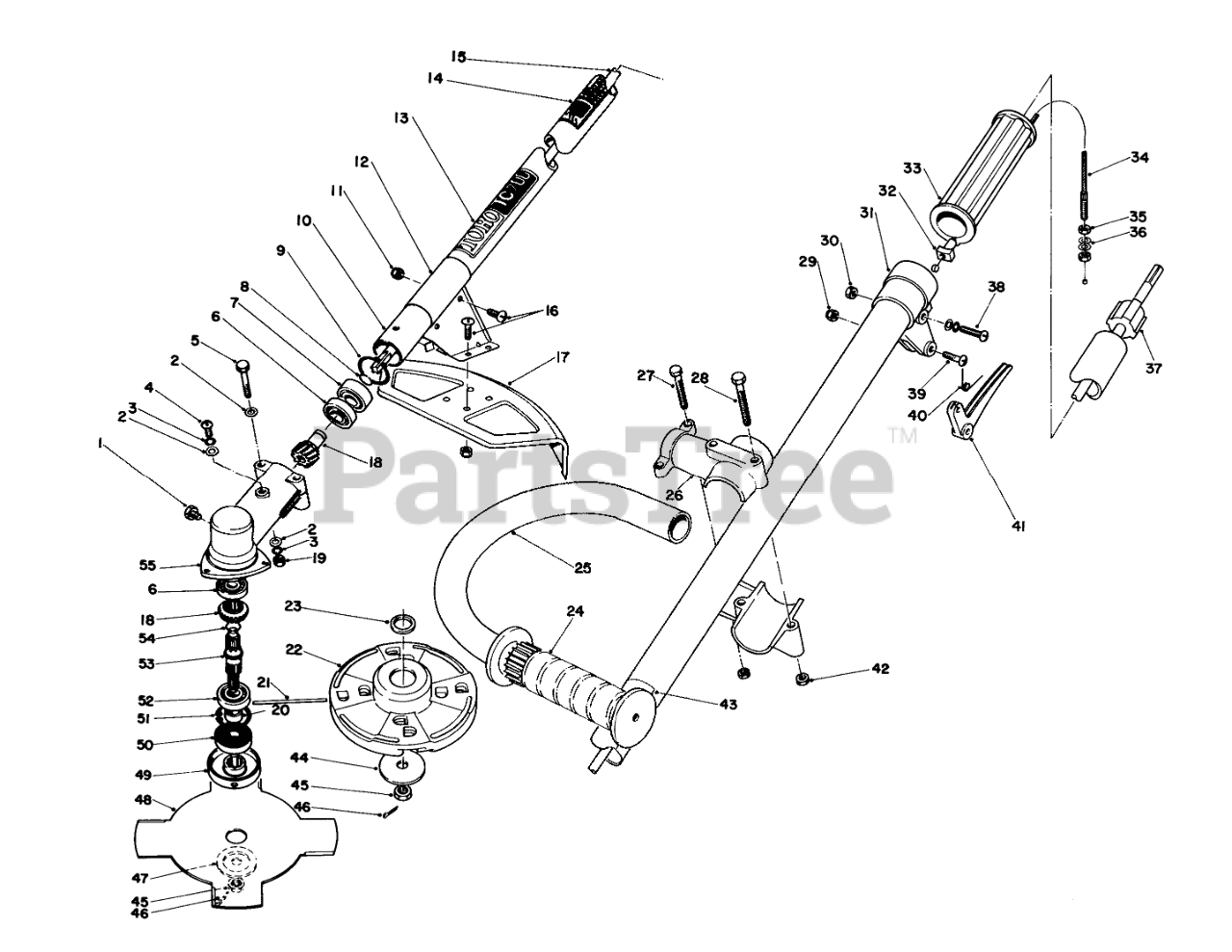

HANDLE ASSEMBLY Parts Diagram

1

Toro 46-4140

Bolt

$

$

Not available

2

Toro 41-5440

WASHER

$

$

Not available

3

Toro 41-5490

Washer
(Superseded to 71-1150)

$

$

Not available

4

Toro 41-5080

Screw

$

$

Not available

5

Toro 46-4150

Bolt

$

$

Not available

6

Toro 46-4130

Ball Bearing

$

$

Not available

7

Toro 46-4120

Ball Bearing

$

$

Not available

8

Toro 46-4110

Circlip

$

$

Not available

9

Toro 46-4100

Circlip

$

$

Not available

10

Toro 46-4040

Housing Assembly

$

$

Not available

11

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

12

Toro 44-9880

Bracket Shield

$

$

Not available

13

Toro 44-6710

Decal-TC700

$

$

Not available

14

Toro 44-9950

Decal

$

$

Not available

15

Toro 46-4030

Shaft Drive

$

$

Not available

16

Toro 3251-2

SCREW-PPH

$0.99

$

In Stock, Qty 5

0

17

Toro 41-4650

Shield

$

$

Not available

18

Toro 46-4160

Gear Set

$

$

Not available

19

Toro 41-5350

Nut
(Superseded to 47-6390)

$

$

Not available

20

Toro 46-4200

Spacer

$

$

Not available

21

Toro 44-6890

Filament Line Pkg. (24 Pcs.)
(Superseded to 47-2260)

$209.99

$

Usually ships in 3-6 days

0

Toro 44-9830

.105 Line (100 pcs.)(optional)
(Superseded to 47-2260)

Note: Not illustrated

$209.99

$

Usually ships in 3-6 days

0

Toro 42-0580

CUTTING LINE PKG(100)

Note: Not illustrated

$

$

Not available

Toro 46-2730

BULK LINE W/LABEL

Note: Not illustrated

$

$

Not available

Toro 46-2740

3 LB BULK LINE W/LABEL

Note: Not illustrated

$

$

Not available

22

Toro 46-2810

Cutter Head (Incl. #23)

$

$

Not available

23

Toro 44-6950

SPACER

$

$

Not available

24

Toro 235-24

LH GRIP

$

$

Not available

25

Toro 44-7530

Tube-Handle

$

$

Not available

26

Toro 44-7520

Clamp-"J" Handle

$

$

Not available

27

Toro 3251-13

10-24X1-1/8 RND HD MS

$

$

Not available

28

Toro 3251-10

10-24X1-3/4 RND HD MS

$

$

Not available

29

Toro 414250

Nut

$

$

Currently unavailable

30

Toro 41-5350

Nut
(Superseded to 47-6390)

$

$

Not available

31

Toro 464080

Bracket, Trigger

$

$

Currently unavailable

32

Toro 41-3440

SPACER

$

$

Not available

33

Toro 464060

Grip

$

$

Currently unavailable

34

Toro 464070

Throttle Cable

$

$

Currently unavailable

35

Toro 41-5380

Nut

$

$

Not available

36

Toro 41-5450

Washer
(Superseded to 3256-60)

$2.49

$

Usually ships in 3-6 days

0

37

Toro 464050

Bushing

$

$

Currently unavailable

38

Toro 41-5260

SCREW

$

$

Not available

39

Toro 41-3460

Screw

$

$

Not available

40

Toro 41-3430

Spring Return

$

$

Not available

41

Toro 41-3350

Throttle Trigger

$

$

Not available

42

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

43

Toro 42-5850

Decal Warning

$

$

Not available

44

Toro 41-4430

WASHER

$

$

Not available

45

Toro 41-5410

NUT

$9.49

$

Usually ships in 3-6 days

0

46

Toro 41-5330

Split Pin
(Superseded to 327-23)

$6.49

$

Usually ships in 3-6 days

0

47

Toro 41-4440

Blade Adapter Kit (Incl. Ref. #45 & 46)

$100.99

$

Usually ships in 3-6 days

0

48

Toro 44-9850

Brush Blade
(Superseded to 51-1240)

$

$

Not available

49

Toro 46-2320

Plate-Blade Fixing

$

$

Not available

50

Toro 46-4210

Oil Seal

$

$

Not available

51

Toro 41-5580

Circlip

$

$

Not available

52

Toro 41-5660

Ball Bearing

$

$

Not available

53

Toro 46-4190

Shaft P.T.O.

$

$

Not available

54

Toro 46-4180

Circlip

$

$

Not available

55

Toro 46-4170

Gear Housing

$

$

Not available

Toro 46-4090

Gear Housing Assembly

Note: Not illustrated

$

$

Not available
