51607 (TC 700) - Lawn-Boy String Trimmer (SN: 002000001 - 002999999) (1982) TAP AND TRIM HEAD 46-2800 (OPTIONAL) Parts Diagram

String Trimmer

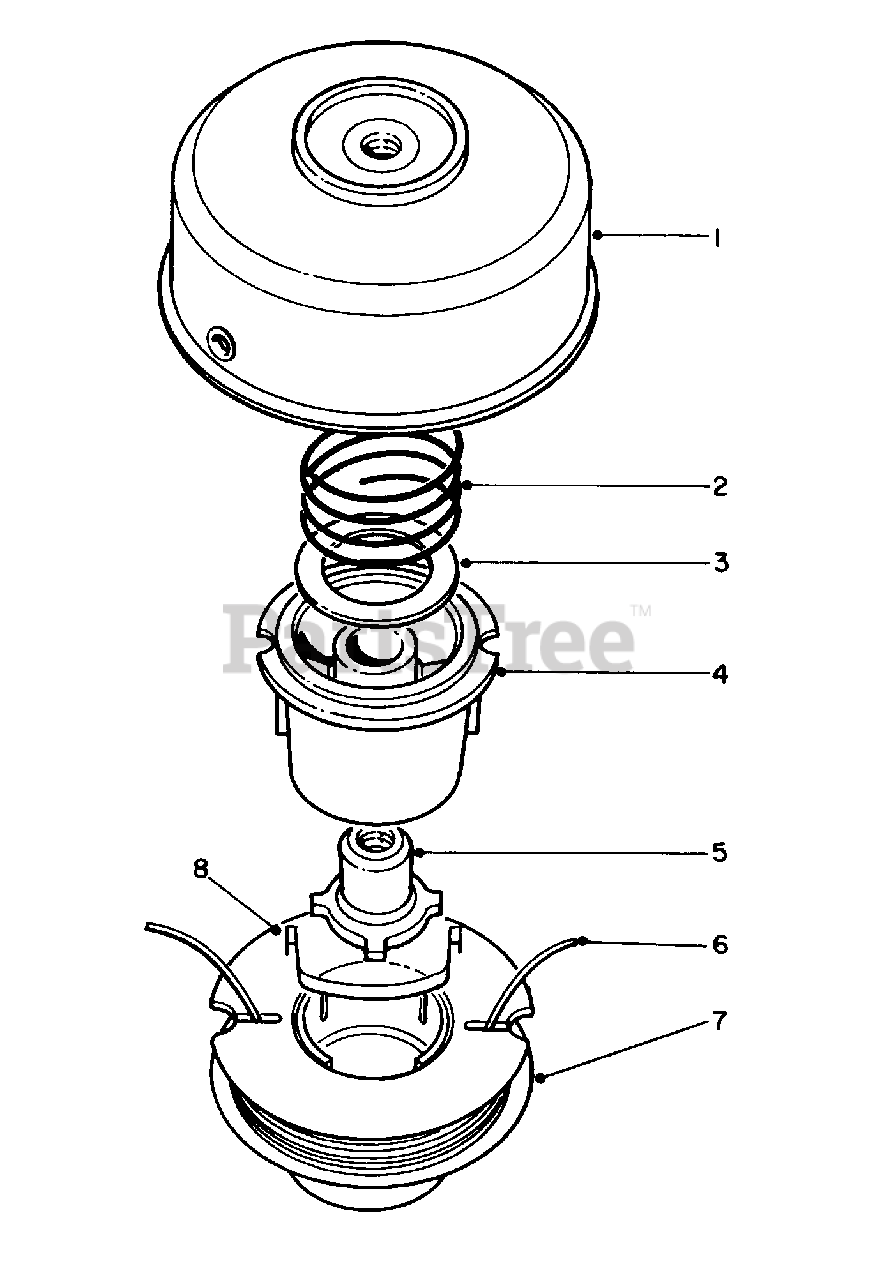

TAP AND TRIM HEAD 46-2800 (OPTIONAL) Parts Diagram

  • Title
1

Lawn-Boy 46-2650

Drum Assembly w/Eyelet

$

$

Not available

2

$14.99

$

In Stock, only 2 left!

0

3

$1.49

$

In Stock, only 1 left!

0

4

Lawn-Boy 33-6230

Spool Core

$

$

Not available

5

Lawn-Boy 33-6470

Driver L.H.

$

$

Not available

6

Lawn-Boy 43-5000

.080 Filament Line in Coil (38 ft.)

$

$

Not available

Lawn-Boy 46-2710

.080 Filament Line in 1 lb. pkg. (400 ft.)

Note: Not Illustrated

$

$

Not available

7

Lawn-Boy 46-2820

Prewound Spool
(Superseded to 83-4650)

$

$

Not available

8

Lawn-Boy 33-8940

Saddle-Spool Cap

$

$

Not available
