51607 (TC 700) - Lawn-Boy String Trimmer (SN: 002000001 - 002999999) (1982) CARBURETOR ASSEMBLY Parts Diagram

String Trimmer

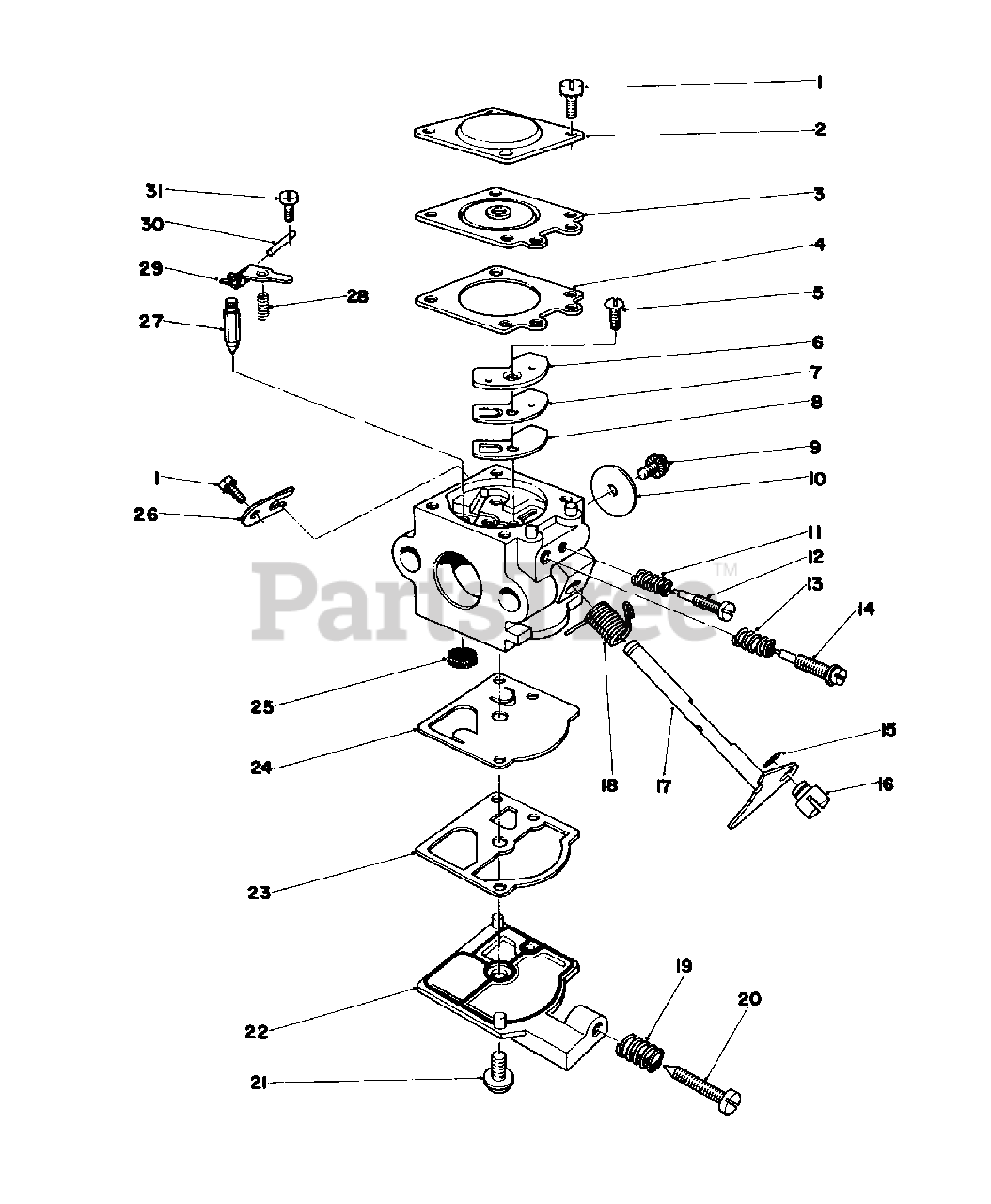

CARBURETOR ASSEMBLY Parts Diagram

  • Title

$

$

Not available

2

Lawn-Boy 41-1060

Cover, Diaphragm

$

$

Not available

3

Lawn-Boy 41-1050

Diaphragm, Metering

$

$

Not available

4

Lawn-Boy 41-1040

Gasket, Diaphragm

$

$

Not available

5

Lawn-Boy 41-1110

Screw, Circuit Plate

$

$

Not available

6

Lawn-Boy 41-1100

Plate, Circuit

$

$

Not available

7

Lawn-Boy 41-1090

Diaphragm, Circuit Plate

$

$

Not available

8

Lawn-Boy 41-1080

Gasket, Circuit Plate

$

$

Not available

9

Lawn-Boy 41-0730

Screw, Throttle

$

$

Not available

10

Lawn-Boy 41-0750

Valve, Throttle

$

$

Not available

11

Lawn-Boy 41-0860

Spring, Needle-Idle

$

$

Not available

12

Lawn-Boy 43-9900

Idle Needle

$

$

Not available

13

Lawn-Boy 41-0820

Spring High Speed Needle

$

$

Not available

14

Lawn-Boy 41-0850

High Speed Needle

$

$

Not available

$

$

Not available

16

$

$

Not available

17

Lawn-Boy 41-0770

Throttle Shaft

$

$

Not available

18

Lawn-Boy 41-0720

Spring, Throttle Return

$

$

Not available

19

Lawn-Boy 41-4970

Spring, Idle Adjust Screw

$

$

Not available

20

Lawn-Boy 41-0990

Screw, Idle Adjust

$

$

Not available

21

Lawn-Boy 41-4700

Screw, Fuel Pump
(Superseded to 46-3900)

$

$

Not available

22

Lawn-Boy 46-4240

Cover, Fuel Pump

$

$

Not available

23

Lawn-Boy 41-0920

Gasket, Fuel Pump

$

$

Not available

24

Lawn-Boy 41-0710

Diaphragm, Fuel Pump
(Superseded to 62-5800)

$

$

Not available

25

Lawn-Boy 41-4930

Screen, Inlet

$

$

Not available

26

Lawn-Boy 41-0940

Clip, Throttle Shaft

$

$

Not available

27

Lawn-Boy 41-1010

Valve, Inlet Needle

$

$

Not available

28

Lawn-Boy 41-0870

Spring, Metering Lever

$

$

Not available

29

Lawn-Boy 41-0880

Lever Metering

$

$

Not available

30

Lawn-Boy 41-1020

Pin, Metering Lever

$

$

Not available

31

Lawn-Boy 41-1030

Screw Metering Lever Pin

$

$

Not available

Lawn-Boy 46-3940

Carburetor Assembly (Incl.Ref.#1-31)

Note: Not Illustrated

$

$
