51606 (TC 600) - Toro String Trimmer (SN: 002000001 - 002999999) (1982) ENGINE ASSEMBLY Parts Diagram

String Trimmer

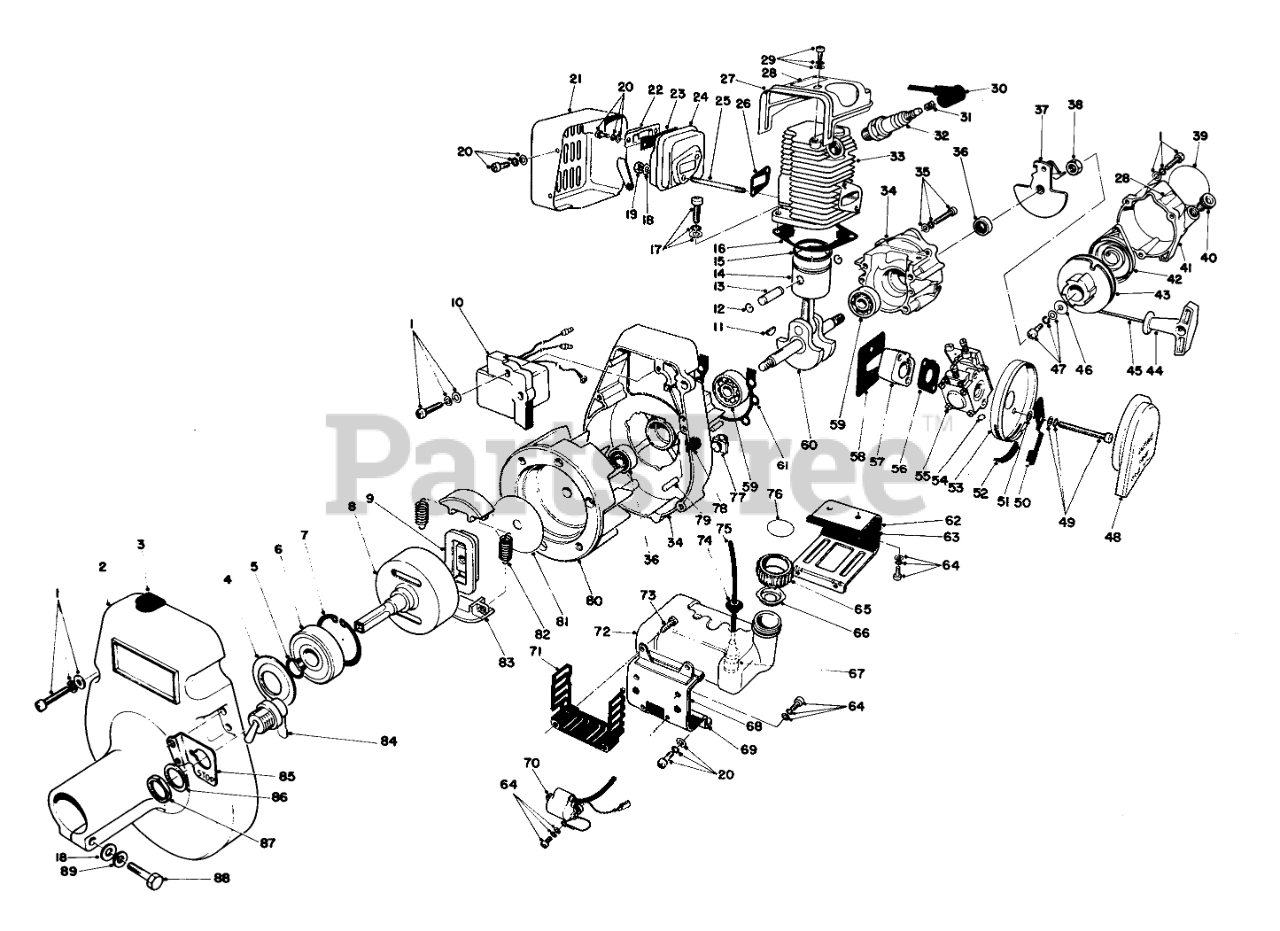

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 41-5170

SCREW

$

$

Not available

2

Toro 46-4020

Fan Cover

$

$

Not available

3

Toro 46-4010

Plug

$

$

Not available

4

Toro 34-7810

Stopper

$

$

Not available

5

Toro 41-5550

Circlip

$

$

Not available

6

Toro 43-9820

Ball Bearing

$

$

Not available

7

Toro 41-5580

Circlip

$

$

Not available

8

Toro 34-7740

Clutch Drum

$

$

Not available

9

Toro 43-9810

Clutch Boss

$

$

Not available

10

Toro 46-4000

MODULE CDI-WILLMAR

$

$

Not available

11

Toro 41-6160

Woodruff Key

$

$

Not available

12

Toro 41-0160

Circlip, Piston Pin

$

$

Not available

13

Toro 46-3830

Piston Pin

$

$

Not available

14

Toro 43-9320

Piston

$

$

Not available

15

Toro 41-0070

PISTON RING

$

$

Not available

16

Toro 43-9340

Gasket, Cylinder Base
(Superseded to 63-5070)

$

$

Not available

17

Toro 41-5290

Screw

$

$

Not available

18

Toro 41-5440

WASHER

$

$

Not available

19

Toro 46-3840

Locknut
(Superseded to 41-4250)

$

$

Not available

20

Toro 41-5160

SCREW

$

$

Not available

21

Toro 43-9450

Muffler Cover

$

$

Not available

22

Toro 43-9440

Lid-Muffler

$

$

Not available

23

Toro 43-9430

Screen

$

$

Not available

24

Toro 43-9420

Muffler Body

$

$

Not available

25

Toro 43-9390

STUD BOLT

$

$

Not available

26

Toro 43-9410

Gasket, Muffler

$

$

Not available

27

Toro 43-9370

Cylinder Cover

$

$

Not available

28

Toro 42-6210

Decal-Hot Surface
(Superseded to 65-2690)

$5.49

$

In Stock, only 4 left!

0

29

Toro 41-5190

SCREW

$

$

Not available

30

Toro 41-2520

Cap-Spark Plug

$

$

Not available

31

Toro 41-2510

Coil Spring-Plug Cap

$

$

Not available

32

Spark Plug (CJ-8)

Note: Obtain Locally

$

$

Not available

33

Toro 43-9350

Cylinder

$

$

Not available

34

Toro 46-3800

Crankcase Set

$

$

Not available

35

Toro 41-5260

SCREW

$

$

Not available

36

Toro 43-9290

Oil Seal

$

$

Not available

37

Toro 43-9510

Ratchet Assembly

$

$

Not available

38

Toro 41-5390

NUT

$

$

Not available

39

Toro 33-8340

Decal

$

$

Not available

40

Toro 46-3870

Rope Guide

$

$

Not available

41

Toro 46-3880

Starter Case

$

$

Not available

42

Toro 34-7900

REWIND SPRING

$

$

Not available

43

Toro 43-9540

Recoil Drum

$

$

Not available

44

Toro 34-7930

Starter Handle

$

$

Not available

45

Toro 34-7910

Rope-Starter
(Superseded to 65-3270)

$

$

Not available

46

Toro 46-3860

WASHER-WILLMAR

$

$

Not available

47

Toro 41-5150

Screw

$

$

Not available

48

Toro 46-3960

AIR FILTER

$

$

Not available

49

Toro 34-8610

SCREW

$

$

Not available

50

Toro 43-9720

CHOKE SHUTTER

$

$

Not available

51

Toro 41-3610

CHOKE SHUTTER SPACER

$

$

Not available

52

Toro 43-9710

Grommet

$

$

Not available

53

Toro 43-9700

Case-Air Cleaner

$

$

Not available

54

Toro 46-3950

Clip Fuel Pipe

$

$

Not available

55

Toro 46-3940

Carburetor Assembly

$

$

Not available

56

Toro 46-3930

Gasket
(Superseded to 43-9620)

$

$

Not available

57

Toro 43-9610

Insulator

$

$

Not available

58

Toro 46-3920

INSULATOR GASKET-WILLMAR

$18.99

$

Usually ships in 3-6 days

0

59

Toro 41-5670

Bearing

$

$

Not available

60

Toro 46-3790

Crankshaft Assembly

$

$

Not available

Toro 43-9240

Needle Bearing (Incl. with Ref. #60)

Note: Not illustrated

$

$

Not available

Toro 43-9250

Spacer-Piston Pin (Incl. with Ref. #60)

Note: Not illustrated

$

$

Not available

61

Toro 43-9200

Gasket-Crankcase
(Superseded to 63-5070)

$

$

Not available

62

Toro 43-9560

Bracket-Fuel Tank

$

$

Not available

63

Toro 43-9670

Cushion

$

$

Not available

64

Toro 34-8520

Screw
(Superseded to 47-6450)

$

$

Not available

65

Toro 41-1630

Cap-Fuel Tank
(Superseded to 43-9940)

$

$

Not available

66

Toro 46-3910

Check Valve

$

$

Not available

67

Toro 43-9660

FUEL STRAINER

$

$

Not available

68

Toro 43-9260

Cushion

$

$

Not available

69

Toro 46-3820

Bracket-Fuel Tank

$

$

Not available

70

Toro 46-3980

IGNITION COIL-WILLMAR

$

$

Not available

71

Toro 43-9380

Dust Filter

$

$

Not available

72

Toro 43-9590

FUEL TANK

$

$

Not available

73

Toro 34-8630

Screw

$

$

Not available

74

Toro 41-1880

GROMMET

$

$

Not available

75

Toro 41-1820

Fuel Hose
(Superseded to 41-1830)

$

$

Not available

76

Toro 46-3900

Decal Fuel Mix

$

$

Not available

77

Toro 46-3970

Cord Holder

$

$

Not available

78

Toro 46-3810

Grommet

$

$

Not available

79

Toro 41-0330

Knockpin

$

$

Not available

80

Toro 46-3990

Flywheel

$

$

Not available

81

Toro 43-9780

Side Plate

$

$

Not available

82

Toro 41-2790

CLUTCH SPRING

$

$

Not available

83

Toro 41-2710

CLUTCH SHOE

$

$

Not available

84

Toro 43-9850

Switch (Incl. Ref. #86 & 87)

$45.99

$

Usually ships in 3-6 days

0

85

Toro 43-9870

Bracket-Switch

$

$

Not available

86

Washer

$

$

Not available

87

Nut

$

$

Not available

88

Toro 43-9860

Bolt

$

$

Not available

89

Toro 41-5490

Washer
(Superseded to 71-1150)

$

$

Not available

Toro 43-9400

Muffler Assembly

Note: Not illustrated

$

$

Not available

Toro 46-3850

Recoil Starter Assembly

Note: Not illustrated

$

$

Not available

Toro 43-9940

GAS CAP

Note: Not illustrated

$

$

Not available

Toro 41-6810

Tool Kit

Note: Not illustrated

$

$

Not available
