51606 (TC 600) - Lawn-Boy String Trimmer (SN: 002000001 - 002999999) (1982) HANDLE & TRIMMER HEAD ASSEMBLY Parts Diagram

String Trimmer

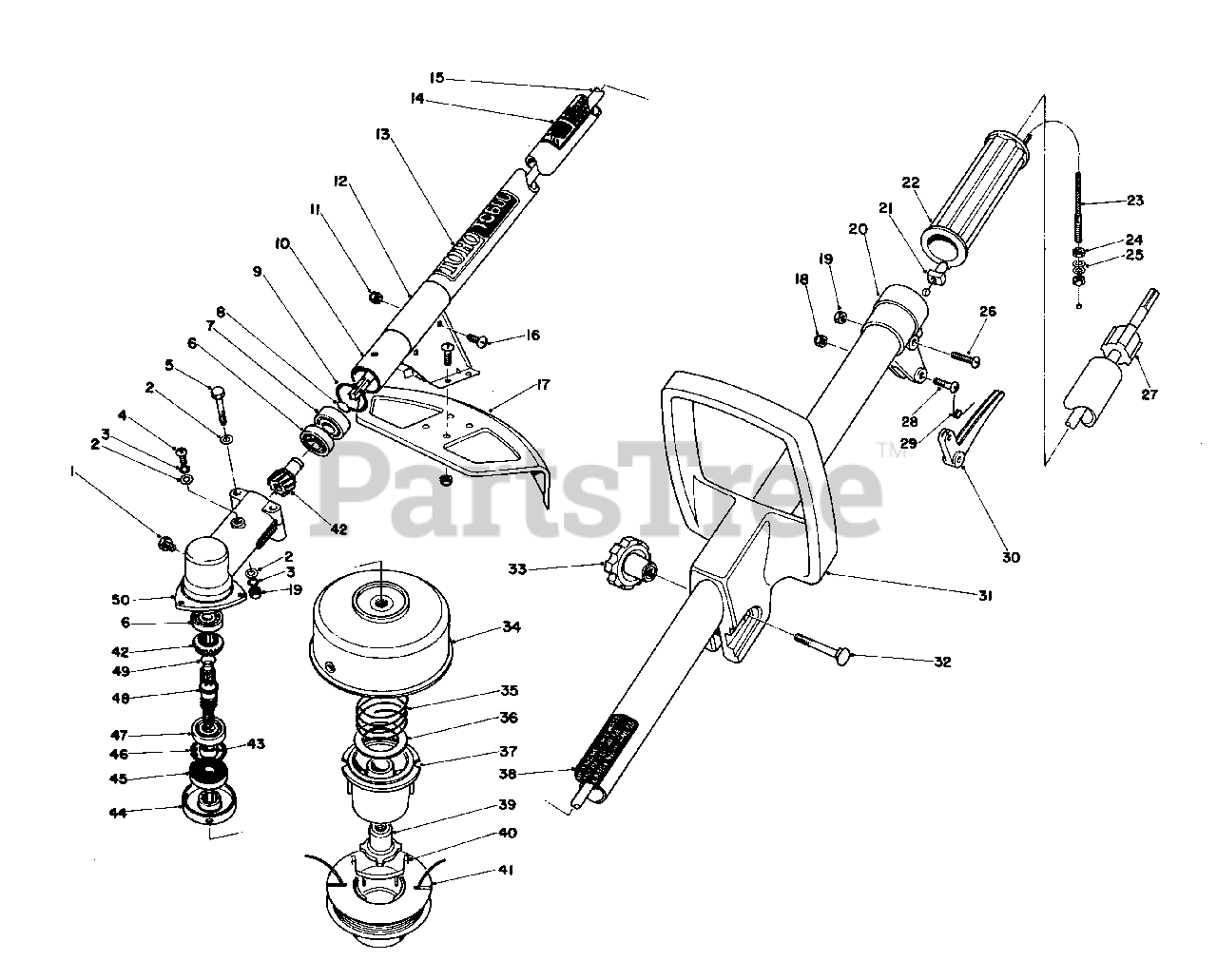

HANDLE & TRIMMER HEAD ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 46-4140

Bolt

$

$

Not available

2

Lawn-Boy 41-5440

Washer

$

$

Not available

3

Lawn-Boy 41-5490

Spring Washer
(Superseded to 71-1150)

$

$

Not available

4

Lawn-Boy 41-5080

Screw

$

$

Not available

5

Lawn-Boy 46-4150

Bolt

$

$

Not available

6

Lawn-Boy 46-4130

Ball Bearing

$

$

Not available

7

Lawn-Boy 46-4120

Ball Bearing

$

$

Not available

8

Lawn-Boy 46-4100

Circlip

$

$

Not available

9

Lawn-Boy 46-4110

Circlip

$

$

Not available

10

Lawn-Boy 46-4040

Housing Assembly

$

$

Not available

11

Lawn-Boy 3296-12

Locknut

$1.49

$

In Stock, Qty 6

0

12

Lawn-Boy 44-9880

Bracket Shield

$

$

Not available

13

Lawn-Boy 44-6910

Decal-TC 600

$

$

Not available

14

Lawn-Boy 42-5850

Decal Warning

$

$

Not available

15

Lawn-Boy 46-4030

Shaft Drive

$

$

Not available

16

Lawn-Boy 3251-2

Screw Rd. Hd.

$0.99

$

In Stock, Qty 5

0

17

Lawn-Boy 41-4650

Shield

$

$

Not available

18

Lawn-Boy 41-4250

Locknut

$

$

Not available

19

Lawn-Boy 41-5350

Nut
(Superseded to 47-6390)

$

$

Not available

20

Lawn-Boy 46-4080

Bracket, Trigger

$

$

Not available

21

Lawn-Boy 41-3440

Spacer

$

$

Not available

22

Lawn-Boy 46-4060

Grip

$

$

Not available

23

Lawn-Boy 46-4070

Throttle Cable

$

$

Not available

24

Lawn-Boy 41-5380

Nut

$

$

Not available

25

Lawn-Boy 41-5450

Washer
(Superseded to 3256-60)

$2.49

$

Usually ships in 3-6 days

0

26

Lawn-Boy 41-5260

Screw

$

$

Not available

27

Lawn-Boy 46-4050

Bushing

$

$

Not available

28

Lawn-Boy 41-3460

Screw

$

$

Not available

29

Lawn-Boy 41-3430

Spring Return

$

$

Not available

30

Lawn-Boy 41-3350

Throttle Trigger

$

$

Not available

31

Lawn-Boy 44-6790

Adjustable Handle

$

$

Not available

32

Lawn-Boy 33-5790

Carriage Bolt

$5.49

$

Usually ships in 3-6 days

0

33

Lawn-Boy 19-4050

Knob

$17.99

$

In Stock, only 2 left!

0

34

Lawn-Boy 46-2650

Drum Assembly

$

$

Not available

35

Lawn-Boy 33-6460

Spring-Compression

$14.99

$

In Stock, only 2 left!

0

36

Lawn-Boy 3256-42

Washer

$1.49

$

In Stock, only 1 left!

0

37

Lawn-Boy 33-6230

Spool Core

$

$

Not available

38

Lawn-Boy 44-9950

Decal

$

$

Not available

39

Lawn-Boy 33-6470

Driver

$

$

Not available

40

Lawn-Boy 33-8940

Saddle-Spool Cap

$

$

Not available

41

Lawn-Boy 46-2820

Prewound Spool
(Superseded to 83-4650)

$

$

Not available

Lawn-Boy 43-5000

.080 Line (38 ft.)(optional)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 46-2710

.080 Line (1 lb)(400 ft.)(optional)

Note: Not Illustrated

$

$

Not available

42

Lawn-Boy 46-4160

Gear Set

$

$

Not available

43

Lawn-Boy 46-4200

Spacer

$

$

Not available

44

Lawn-Boy 46-2320

Plate, Blade Fixing

$

$

Not available

45

Lawn-Boy 46-4210

Oil Seal

$

$

Not available

46

Lawn-Boy 41-5580

Circlip

$

$

Not available

47

Lawn-Boy 41-5660

Ball Bearing

$

$

Not available

48

Lawn-Boy 46-4190

Shaft P.T.O.

$

$

Not available

49

Lawn-Boy 46-4180

Circlip

$

$

Not available

50

Lawn-Boy 46-4170

Gear Housing

$

$

Not available

Lawn-Boy 46-4090

Gear Housing Assembly

Note: Not Illustrated

$

$

Not available
