51604 (TC 400) - Toro String Trimmer (SN: 003000001 - 003999999) (1983) TRIMMER HEAD ASSEMBLY Parts Diagram

String Trimmer

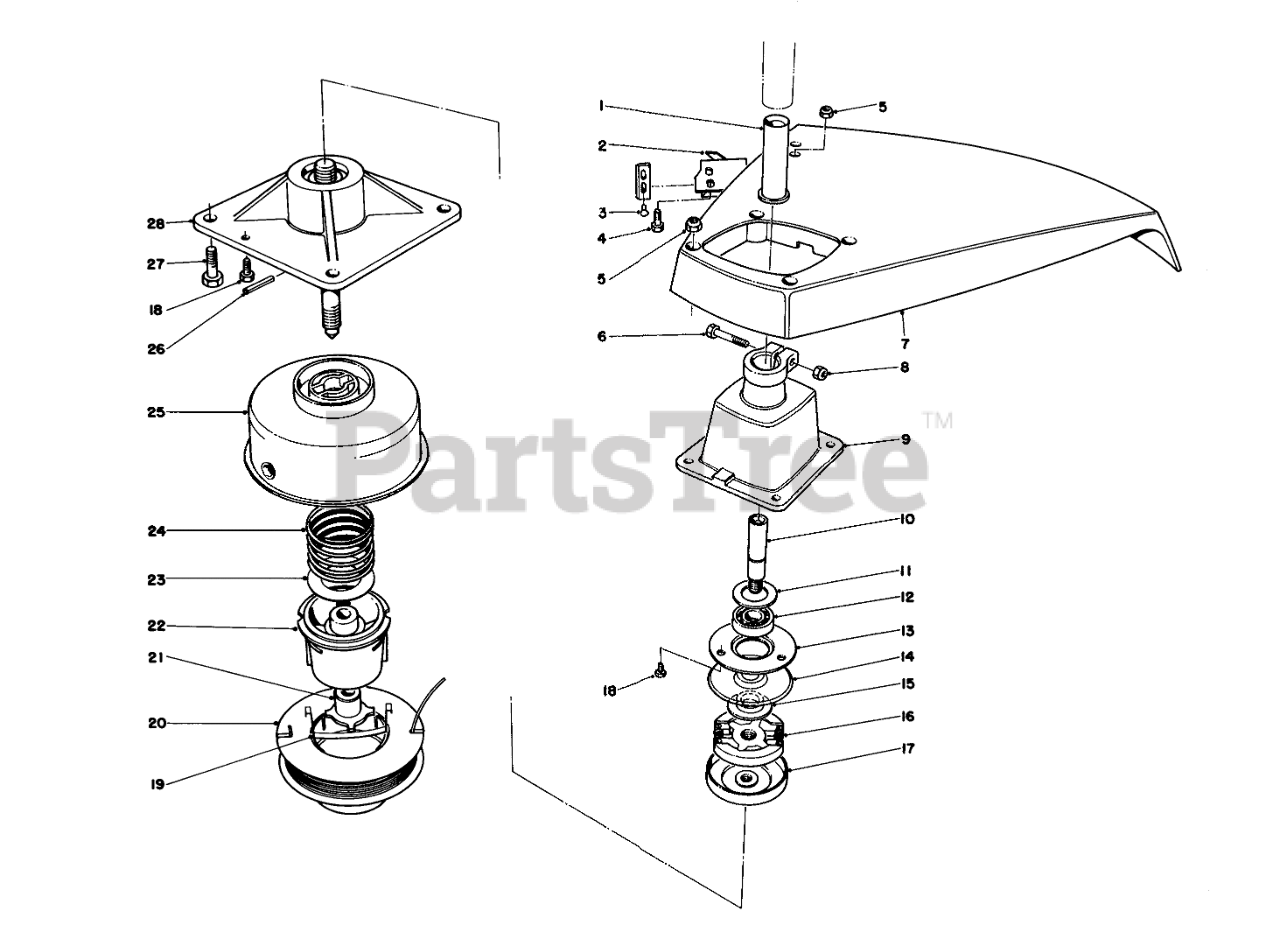

TRIMMER HEAD ASSEMBLY Parts Diagram

  • Title

1

Toro 44-6640

INSERT-POLE END

$

$

Not available

2

Toro 42-5920

Bracket & Knife Blade Assy. (Incl. Rf. #3)

$

$

Not available

3

Toro 3290-54

RIVET-BLIND

$0.99

$

In Stock, only 2 left!

0

4

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

5

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

7

Toro 44-6650

Shield 17"

$

$

Not available

8

Toro 329642

Nut

$

$

Currently unavailable

9

Toro 46-6720

Clutch Housing Assembly (Incl. Ref. #6 & 8)

$

$

Not available

10

Toro 44-6590

SHAFT-UPPER POWER

$

$

Not available

11

Toro 44-6620

Washer-Flat

$

$

Not available

12

Toro 251-294

Bearing
(Superseded to 49-2410)

$49.99

$

Usually ships in 3-6 days

0

13

Toro 44-6680

Retainer-Bearing

$

$

Not available

14

Toro 46-6700

CLUTCH SHIELD-WILLMAR

$

$

Not available

15

Toro 44-6670

Spacer-Clutch

$

$

Not available

16

Toro 44-6660

Clutch Assembly

$

$

Not available

17

Toro 44-2640

Drum Assembly

$

$

Not available

18

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 8

0

19

Toro 33-8940

SADDLE-SPOOL CAP

$

$

Not available

20

Toro 434990

Prewound Spool (.080)

$

$

Currently unavailable

Toro 43-5000

REPL LINE PKG

Note: Not illustrated

$

$

Not available

Toro 46-2710

BULK LINE W/LABEL

Note: Not illustrated

$

$

Not available

21

Toro 42-6050

DRIVER

$23.99

$

Usually ships in 3-6 days

0

22

Toro 33-6230

SPOOL CORE

$

$

Not available

23

Toro 325642

Washer

$

$

Currently unavailable

24

Toro 29-7130

SPRING COMPRESSION

$9.99

$

In Stock, only 1 left!

0

25

Toro 42-5950

DRUM/EYELET

$68.99

$

Usually ships in 3-6 days

0

26

Toro 32121-95

COIL PIN
(Superseded to 32121-108)

$6.99

$

Usually ships in 3-6 days

0

27

Toro 3290-332

10-24 X 7/8 IND HD SC

$

$

Not available

28

Toro 44-9940

Bearing Housing Assembly

$

$

Not available
