51603 (TC 300) - Toro String Trimmer (SN: 003000001 - 003999999) (1983) TRIMMER HEAD ASSEMBLY Parts Diagram

String Trimmer

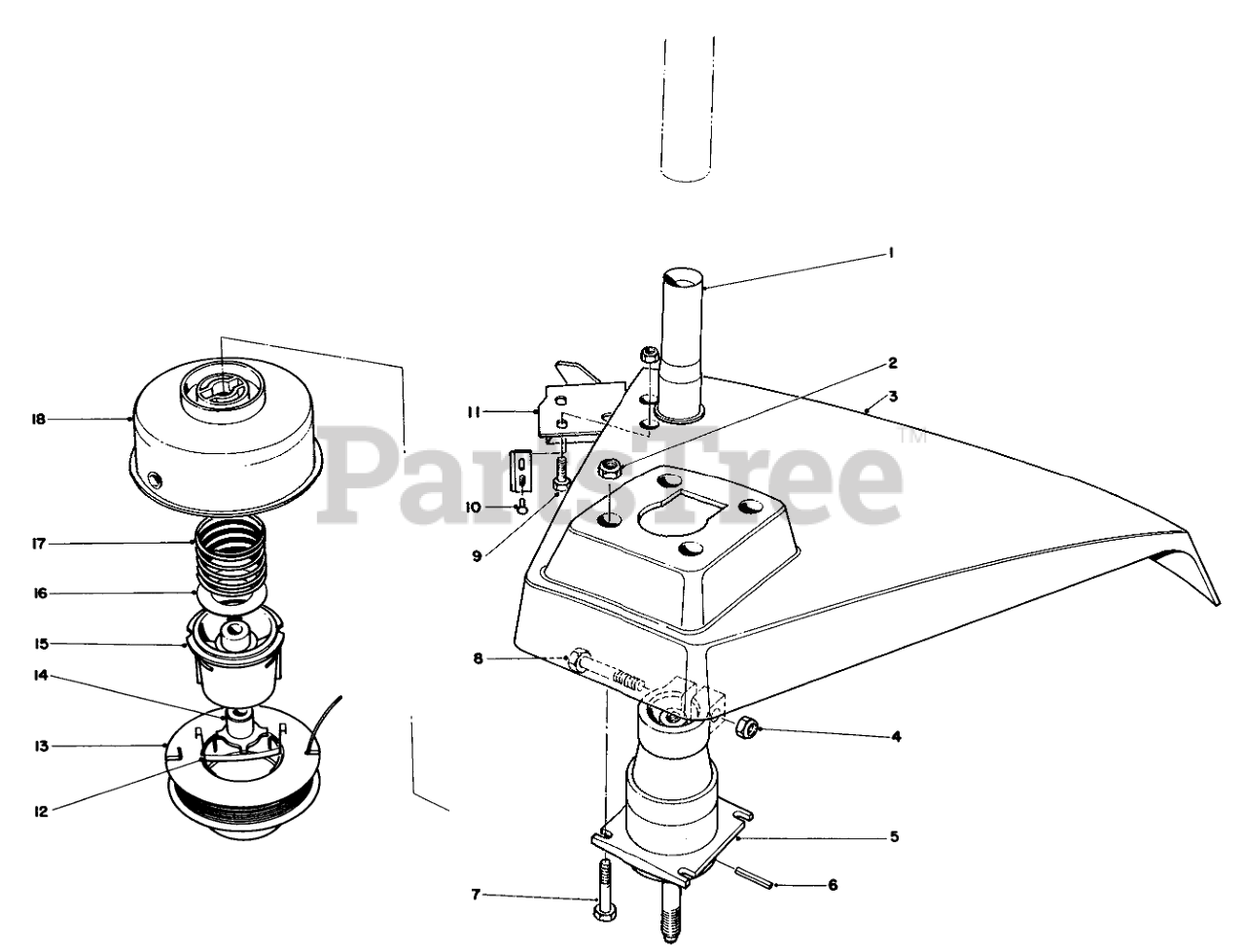

TRIMMER HEAD ASSEMBLY Parts Diagram

  • Title

1

Toro 44-6640

INSERT-POLE END

$

$

Not available

2

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Toro 42-5540

Shield

$

$

Not available

4

Toro 329642

Nut

$

$

Currently unavailable

5

Toro 42-5930

Bearing Housing Assembly
(Superseded to 42-5931)

$

$

Not available

6

Toro 32121-95

COIL PIN
(Superseded to 32121-108)

$6.99

$

Usually ships in 3-6 days

0

7

Toro 3290-360

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

8

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 4 left!

0

9

Toro 3290

216 Washer

$

$

Currently unavailable

10

Toro 3290-54

RIVET-BLIND

$0.99

$

In Stock, only 2 left!

0

11

Toro 42-5920

Knife Blade Assembly (Incl. Ref. #10)

$

$

Not available

12

Toro 33-8940

SADDLE-SPOOL CAP

$

$

Not available

13

Toro 43-4990

Empty Spool

$

$

Not available

Toro 43-5000

REPL LINE PKG

Note: Not illustrated

$

$

Not available

Toro 46-2710

BULK LINE W/LABEL

Note: Not illustrated

$

$

Not available

14

Toro 42-6050

DRIVER

$27.99

$

Usually ships in 3-6 days

0

15

Toro 33-6230

SPOOL CORE

$

$

Not available

16

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

17

Toro 29-7130

SPRING COMPRESSION

$9.99

$

In Stock, only 1 left!

0

18

Toro 42-5950

DRUM/EYELET

$69.99

$

Usually ships in 3-6 days

0
