51603 (TC 300) - Toro String Trimmer (SN: 003000001 - 003999999) (1983) ENGINE ASSEMBLY Parts Diagram

String Trimmer

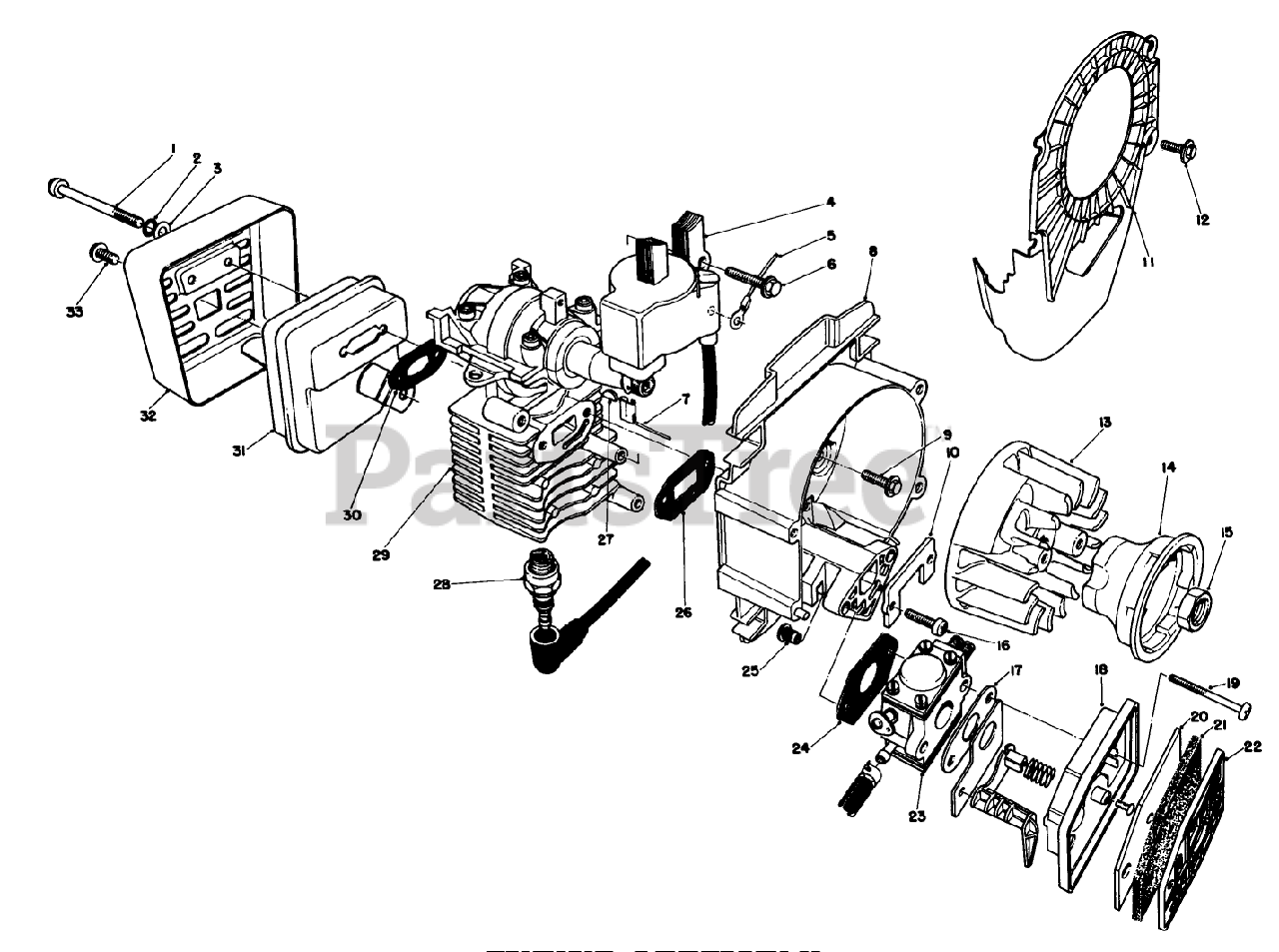

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 45-2380

MUFFLER SCREW

$

$

Not available

2

Toro 45-2960

LOCKWASHER

$

$

Not available

3

Toro 45-2950

Washer-Plain

$

$

Not available

4

Toro 45-0230

CDI Module

$

$

Not available

5

Toro 45-0610

Wire-Ground/Switch

$

$

Not available

6

Toro 45-0640

Screw CDI

$

$

Not available

7

Toro 45-0620

Wire-Coil/Switch

$

$

Not available

8

Toro 45-2020

Backing Plate Assy. (Incl. Ref. #25)

$

$

Not available

9

Toro 45-0710

Screw
(Superseded to 32144-1)

$3.49

$

In Stock, Qty 20+

0

10

Toro 45-054Q

Plate-Stress

$

$

Currently unavailable

11

Toro 45-1850

Cooling Shroud

$

$

Not available

12

Toro 45-0630

Screw-Shroud

$

$

Not available

13

Toro 45-0400

Flywheel

$

$

Not available

14

Toro 45-0130

Cup-Starter

$

$

Not available

15

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 20+

0

16

Toro 45-2140

Screw lntake

$

$

Not available

17

Toro 45-1910

CHOKE GASKET

$

$

Not available

18

Toro 45-1980

Choke & Spitback Cup Assy.

$

$

Not available

19

Toro 45-1800

Screw-Carburetor

$

$

Not available

20

Toro 45-1880

FILTER FELT

$

$

Not available

21

Toro 45-1890

FILTER FOAM

$

$

Not available

22

Toro 45-1900

FILTER COVER

$16.99

$

Usually ships in 3-6 days

0

23

Toro 45-2870

CARBURETOR ASM

$

$

Not available

24

Toro 45-3060

CARB. GASKET

$10.99

$

Usually ships in 3-6 days

0

25

Toro 45-2110

THREADED INSERT

$

$

Not available

26

Toro 45-2990

INTAKE GASKET

$9.99

$

Usually ships in 3-6 days

0

27

Toro 45-0470

FLYWHEEL KEY

$

$

Not available

28

Toro 45-0320

SPARK PLUG (NGK)

$3.49

$

Usually ships in 3-6 days

0

29

Toro 45-2210

Short Block

$

$

Not available

30

Toro 45-1950

EXHAUST GASKET

$

$

Not available

31

Toro 45-2540

Muffler Assembly

$

$

Not available

32

Toro 45-2590

MUFFLER SHIELD WA

$

$

Not available

33

Toro 45-2370

Screw, Muffler Tab

$

$

Not available

Toro 45-2640

Engine Complete

Note: Not illustrated

$

$

Not available
