51603 (TC 300) - Toro String Trimmer (SN: 002000001 - 002999999) (1982) ENGINE HOUSING ASSEMBLY Parts Diagram

String Trimmer

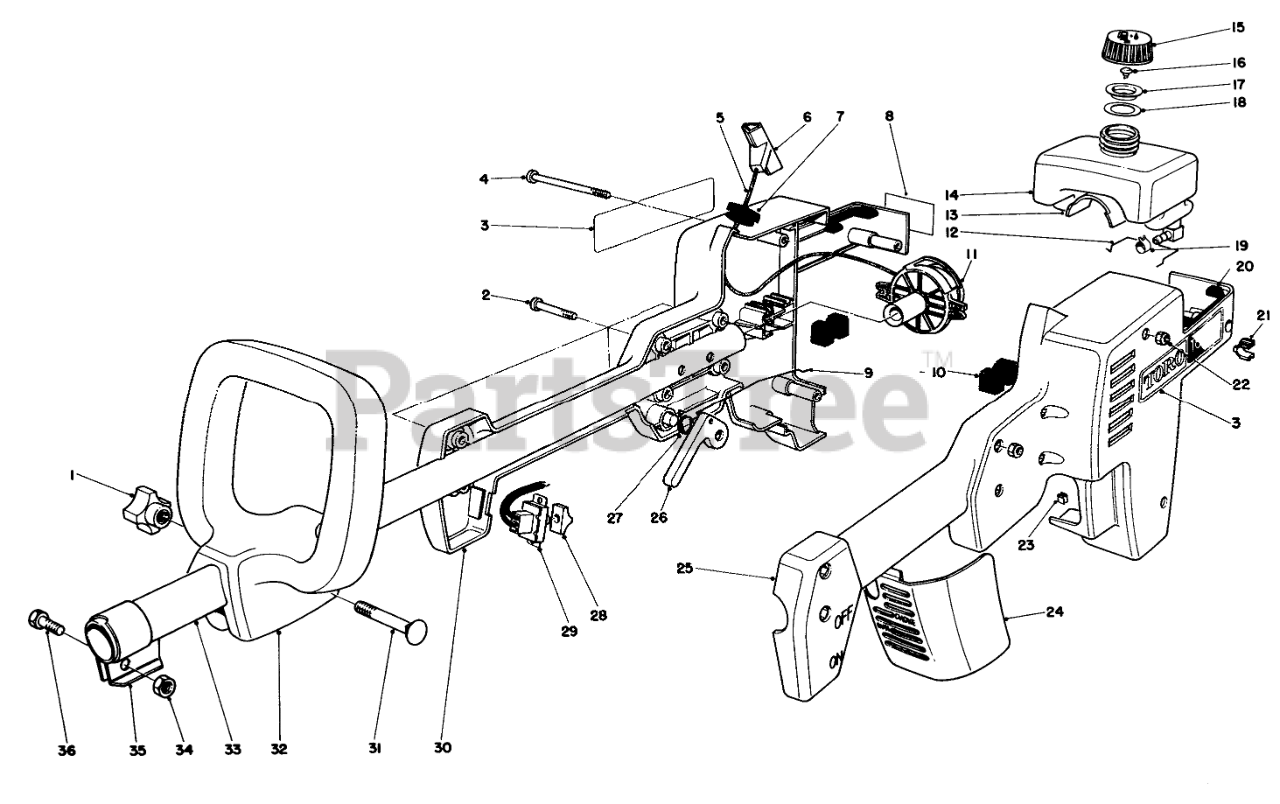

ENGINE HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 42-5890

Knob
(Superseded to 98-7134)

$2.99

$

In Stock, Qty 15

0

2

Toro 3250-23

SCREW-PPH

$3.49

$

Usually ships in 3-6 days

0

3

Toro 444530

Decal-Toro TC300

$

$

Currently unavailable

4

Toro 3250-22

SCREW-PPH

$4.49

$

Usually ships in 3-6 days

0

5

Toro 45-1590

Rope-Starter
(Superseded to 65-3270)

$

$

Not available

6

Toro 38-6570

Handle

$

$

Not available

7

Toro 45-1580

Bushing Rope

$

$

Not available

8

Toro 424250

Decal-Hot Surface

$

$

Currently unavailable

9

Toro 44-7430

Link-Throttle

$

$

Not available

10

Toro 42-5660

Isolation Mount

$

$

Not available

11

Toro 45-0190

Starter Assembly (Incl. Ref. #5-7)

$

$

Not available

12

Toro 42-6230

Clip-Crankcase Pad

$

$

Not available

13

Toro 42-6240

Crankcase Pad

$

$

Not available

14

Toro 42-5600

GAS TANK

$

$

Not available

15

Toro 42-5880

Gas Cap Assembly (Incl. Ref. #16-18)
(Superseded to 52-3610)

$29.99

$

Usually ships in 3-6 days

0

16

Toro 42-5760

Valve
(Superseded to 42-5600)

$

$

Not available

17

Toro 42-5680

Insert

$

$

Not available

18

Toro 42-5910

Gasket
(Superseded to 80-4730)

$

$

Not available

19

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 1 left!

0

20

Toro 42-5590

Bumper-Gas Tank

$

$

Not available

21

Toro 424040

Grommet

$

$

Currently unavailable

22

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 249-32

Clip-S

$

$

Not available

24

Toro 44-6720

Cover-Air Cleaner

$

$

Not available

25

Toro 44-6520

Housing Engine L.H.

$

$

Not available

26

Toro 42-5630

Lever Throttle

$

$

Not available

27

Toro 42-5640

TORSION SPRING

$32.99

$

Usually ships in 3-6 days

0

28

Toro 218-507

SWITCH COVER-BLACK

$

$

Not available

29

Toro 42-6000

SWITCH

$17.99

$

In Stock, Qty 10

0

30

Toro 11-2279

Housing Engine R.H. (Incl. Ref. #8)

$

$

Not available

31

Toro 3-7253

BOLT-CARRIAGE
(Superseded to 3230-6)

$1.49

$

In Stock, Qty 11

0

32

Toro 42-5550

HANDLE SECONDARY

$

$

Not available

33

Toro 42-5570

Tube-Upper Shaft Housing

$

$

Not available

34

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

35

Toro 42-5830

Clamp-Pole

$

$

Not available

36

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0
