51603 (TC 300) - Toro String Trimmer (SN: 002000001 - 002999999) (1982) ENGINE ASSEMBLY Parts Diagram

String Trimmer

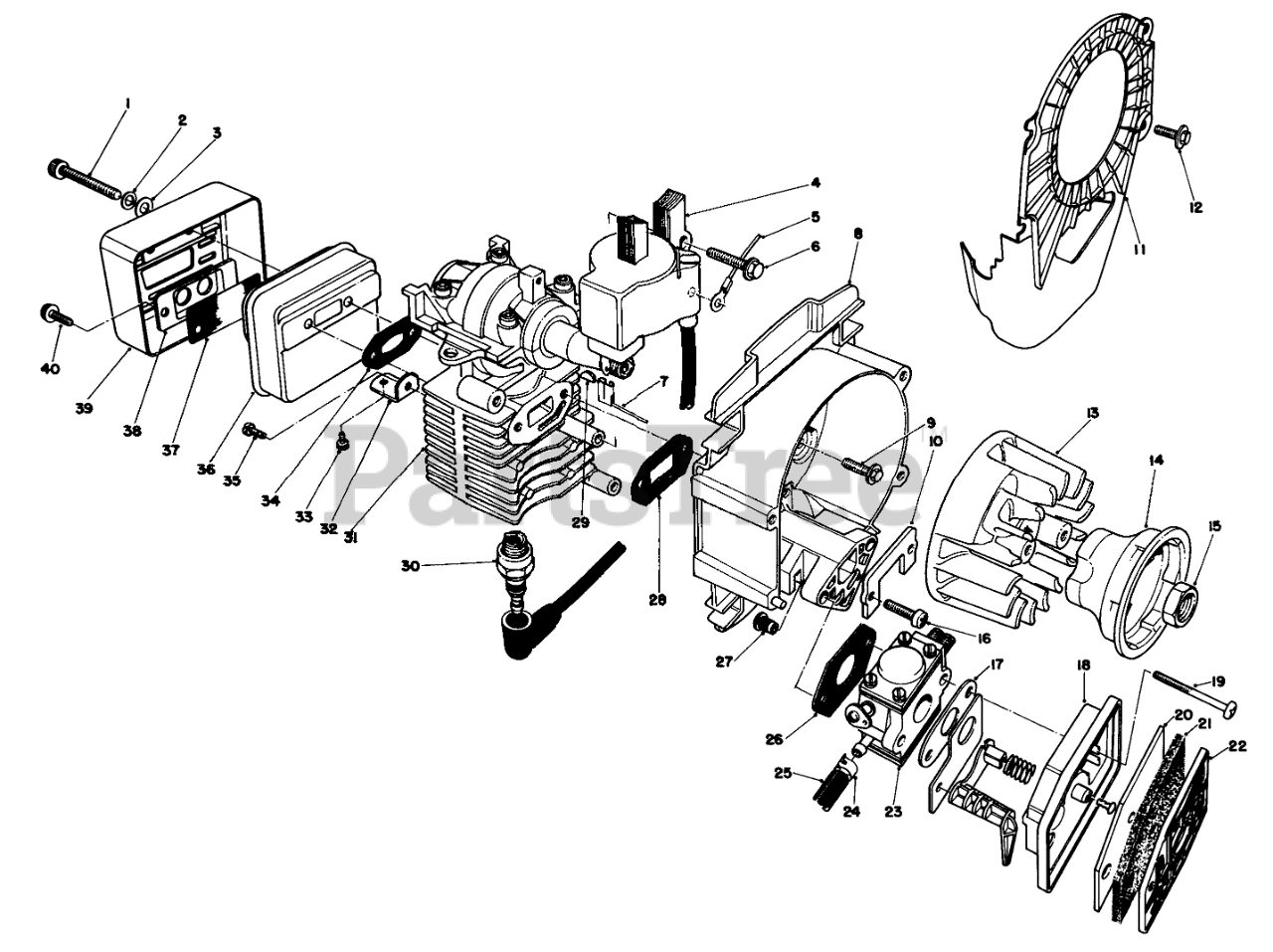

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 45-1450

MUFFLER SCREW

$

$

Not available

2

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

3

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

4

Toro 45-0230

CDI Module

$

$

Not available

5

Toro 45-0610

Wire-Ground/Switch

$

$

Not available

6

Toro 45-0640

Screw CDI

$

$

Not available

7

Toro 45-0620

Wire-Coil/Switch

$

$

Not available

8

Toro 45-2020

Backing Plate Assembly (Incl. Ref. #31)

$

$

Not available

9

Toro 45-0710

Screw
(Superseded to 32144-1)

$3.49

$

In Stock, Qty 20+

0

10

Toro 45-0540

Plate-Stress

$

$

Not available

11

Toro 45-1850

Cooling Shroud

$

$

Not available

12

Toro 45-0630

Screw-Shroud

$

$

Not available

13

Toro 45-0240

FIywheel

$

$

Not available

14

Toro 45-0130

Cup-Starter

$

$

Not available

15

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 19

0

16

Toro 45-0700

Screw, Intake

$

$

Not available

17

Toro 45-1910

CHOKE GASKET

$

$

Not available

18

Toro 45-1980

Choke & Spitback Cup Assy.

$

$

Not available

19

Toro 45-1800

Screw-Carburetor

$

$

Not available

20

Toro 45-1880

FILTER FELT

$

$

Not available

21

Toro 45-1890

FILTER FOAM

$

$

Not available

22

Toro 45-1900

FILTER COVER

$16.99

$

Usually ships in 3-6 days

0

23

Toro 45-1840

Carburetor
(Superseded to 45-2870)

$

$

Not available

24

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 3 left!

0

25

Toro 45-1920

Hose, Fuel Line
(Superseded to 46-4830)

$

$

Not available

26

Toro 45-1790

Gasket, Carburetor
(Superseded to 45-3060)

$10.99

$

Usually ships in 3-6 days

0

27

Toro 45-2110

THREADED INSERT

$

$

Not available

28

Toro 45-1960

Gasket, Intake
(Superseded to 45-2990)

$9.99

$

Usually ships in 3-6 days

0

29

Toro 45-0470

FLYWHEEL KEY

$

$

Not available

30

Toro 45-0320

SPARK PLUG (NGK)

$

$

Not available

31

Toro 45-2210

Short Block

$

$

Not available

32

Toro 45-1500

Tab Shield

$

$

Not available

33

Toro 45-1530

Screw-Heat Shield

$

$

Not available

34

Toro 45-1950

EXHAUST GASKET

$

$

Not available

35

Toro 45-1280

Screw Shield Tab

$

$

Not available

36

Toro 45-1270

Muffler Assembly (Incl. Ref. #37,38 & 40)

$

$

Not available

37

Toro 45-1210

Spark Arrestor
(Superseded to 45-2390)

$

$

Not available

38

Toro 45-1190

MUFFLER OUTLET PLATE

$

$

Not available

39

Toro 45-1360

MUFFLER SHIELD

$

$

Not available

40

Toro 32140-102

Screw-Outlet

$

$

Not available

Toro 221-723

Engine Complete

Note: Not illustrated

$

$

Not available
