51603 (TC 300) - Lawn-Boy String Trimmer (SN: 002000001 - 002999999) (1982) TRIMMER HEAD ASSEMBLY Parts Diagram

String Trimmer

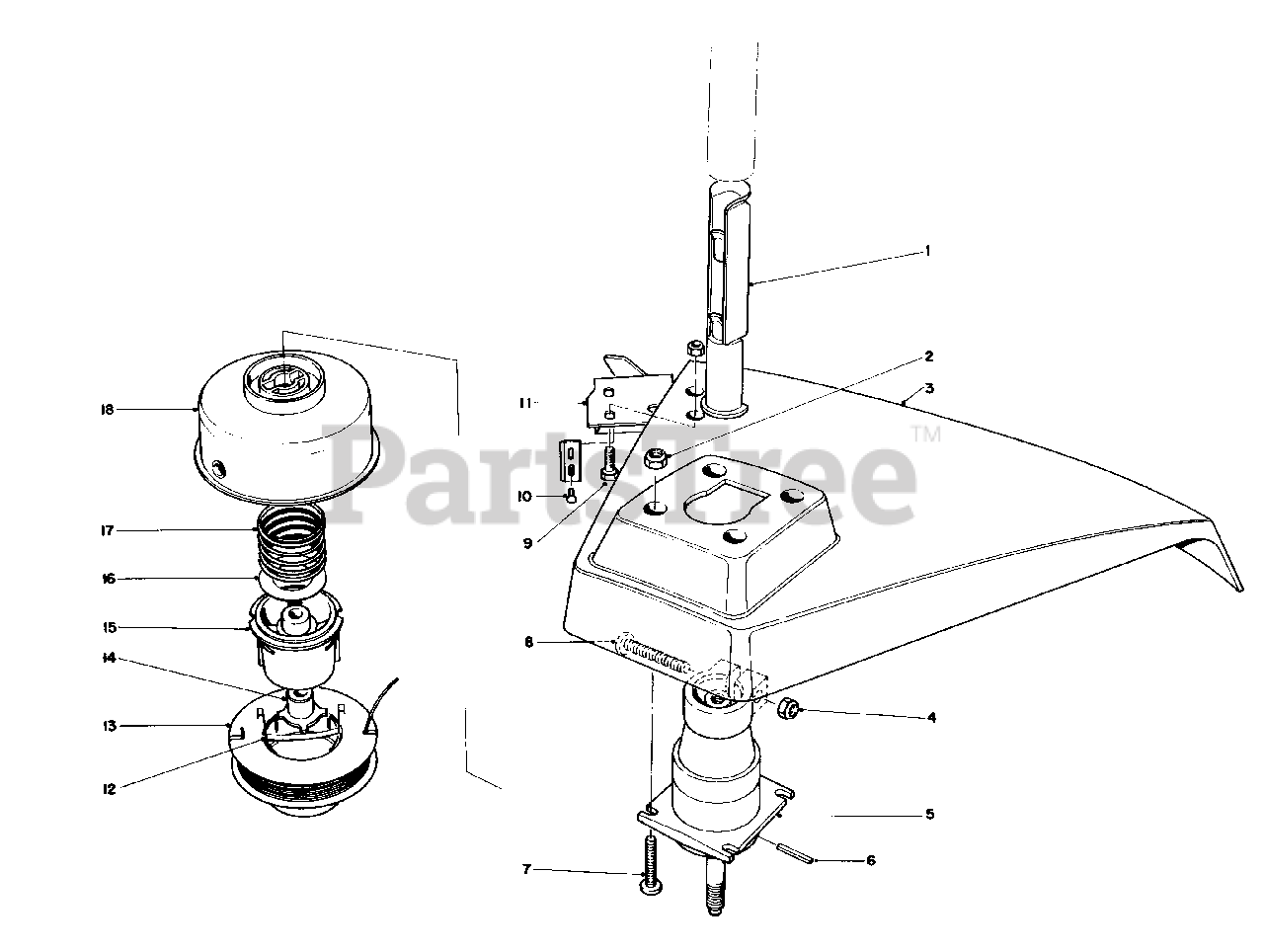

TRIMMER HEAD ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 42-5560

Insert-Pole End

$

$

Not available

2

Lawn-Boy 3296-2

Locknut

$2.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 42-5540

Shield 14"

$

$

Not available

4

Lawn-Boy 3296-42

Locknut

$0.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 42-5930

Bearing Housing Assembly
(Superseded to 42-5931)

$

$

Not available

6

Lawn-Boy 32121-95

Pin Coil
(Superseded to 32121-108)

$6.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 3250-23

Cross Recess Pan Hd. Machine Screw

$3.49

$

Usually ships in 3-6 days

0

8

Lawn-Boy 3250-24

Slotted Pan Hd. Machine Screw

$

$

Not available

9

Lawn-Boy 3290-321

Hex Washer Hd. Machine Screw

$4.49

$

Usually ships in 3-6 days

0

10

Lawn-Boy 3290-54

Pop Rivet

$0.99

$

In Stock, only 2 left!

0

11

Lawn-Boy 42-5920

Knife Blade Assembly (Incl. Ref. #10)

$

$

Not available

12

Lawn-Boy 33-8940

Saddle-Spool Cap

$

$

Not available

13

Lawn-Boy 434990

Prewound Spool (.080)

$

$

Currently unavailable

Lawn-Boy 43-5000

.080 Line 38'

Note: Not Illustrated

$

$

Not available

Lawn-Boy 46-2710

.080 Line 1 Ib.400'

Note: Not Illustrated

$

$

Not available

14

Lawn-Boy 42-6050

Driver

$27.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 33-6230

Spool Core

$

$

Not available

16

Lawn-Boy 325642

Washer

$

$

Currently unavailable

17

Lawn-Boy 29-7130

Spring-Compression

$9.99

$

In Stock, only 1 left!

0

18

Lawn-Boy 42-5950

Drum & Eyelet Assembly

$69.99

$

Usually ships in 3-6 days

0
