51600 - Toro String Trimmer (SN: 009000001 - 009999999) (1979) CARBURETOR ASSEMBLY Parts Diagram

String Trimmer

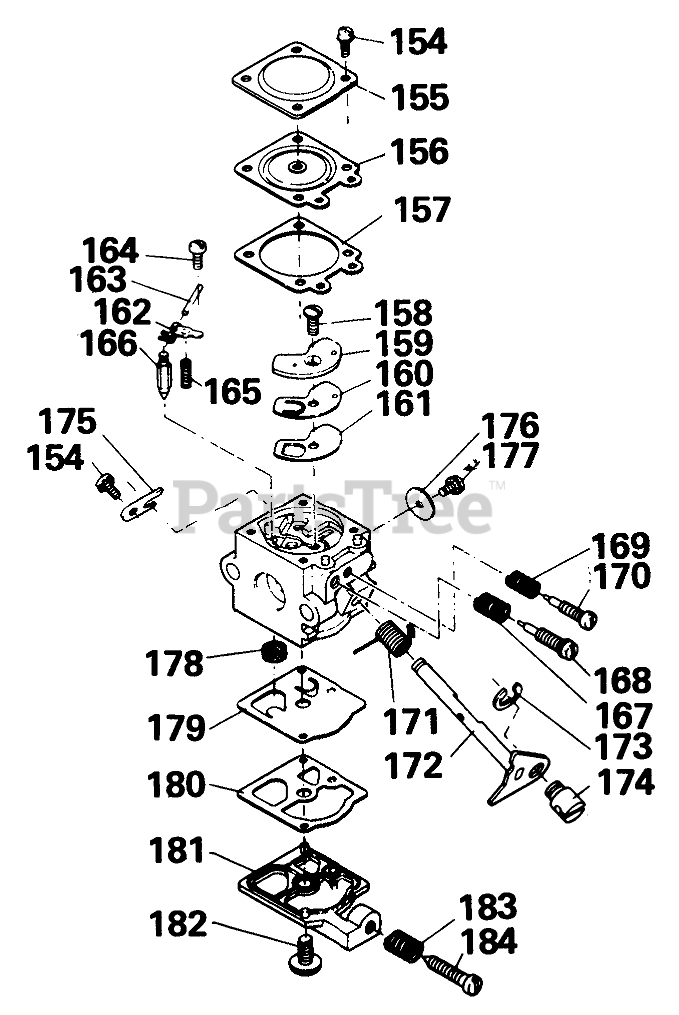

CARBURETOR ASSEMBLY Parts Diagram

  • Title
154

Toro 41-1070

Screw

$

$

Not available

155

Toro 41-1060

Cover, Diaphragm

$

$

Not available

156

Toro 41-1050

METERING DIAPHRAGM

$

$

Not available

157

Toro 41-1040

Gasket, Diaphragm

$

$

Not available

158

Toro 41-1110

Screw-Circuit Plate

$

$

Not available

159

Toro 41-1100

Plate, Circuit

$

$

Not available

160

Toro 41-1090

Diaphragm Circuit Plate

$

$

Not available

161

Toro 41-1080

Gasket-Circuit Plate

$

$

Not available

162

Toro 41-0880

Lever Metering

$

$

Not available

163

Toro 41-1020

Metering Lever Pin

$

$

Not available

164

Toro 41-1030

Screw-Metering Pin

$

$

Not available

165

Toro 34-6790

METERING LEVER SPRING

$

$

Not available

166

Toro 41-1010

INLET NEEDLE VALVE

$

$

Not available

167

Toro 41-0820

Spring, HS Needle

$

$

Not available

168

Toro 41-0850

Needle, HS

$

$

Not available

169

Toro 41-0860

Spring, Needle

$

$

Not available

170

Toro 41-0810

Needle-Idle

$

$

Not available

171

Toro 41-0720

Spring-Throttle Lever

$

$

Not available

172

Toro 41-0780

Shaft Ass-y. Throttle

$

$

Not available

173

$

$

Not available

174

Toro 41-1120

Swivel

$

$

Not available

175

Toro 41-0940

Clip Throttle Shaft

$

$

Not available

176

Toro 34-6730

Valve-Throttle

$

$

Not available

177

Toro 41-0730

Screw

$

$

Not available

178

Toro 41-0930

Screen Inlet

$

$

Not available

179

Toro 41-0710

Diaphragm Fuel Pump
(Superseded to 62-5800)

$

$

Not available

180

Toro 41-0920

PUMP GASKET

$

$

Not available

181

Toro 34-6810

Cover, Fuel Pump

$

$

Not available

182

Toro 41-0700

Screw

$

$

Not available

183

Toro 41-0970

Spring, Idle Screw

$

$

Not available

184

Toro 41-0990

Screw, Idle Adjust

$

$

Not available

Toro 34-6680

Carburetor Assy.

Note: Not illustrated

$

$

Not available

Toro 34-6820

Carb. Repair Kit w/Needles
(Superseded to 46-4740)

Note: Not illustrated

$

$

Not available

Toro 34-6830

Carb. Repair Kit w/o Needles
(Superseded to 46-4750)

Note: Not illustrated

$

$

Not available

Toro 41-8040

CARB KIT

Note: Not illustrated

$

$

Not available
