51600 - Toro String Trimmer (SN: 008000001 - 008999999) (1978) FUEL TANK, RECOIL STARTER & CLUTCH ASSEMBLY Parts Diagram

String Trimmer

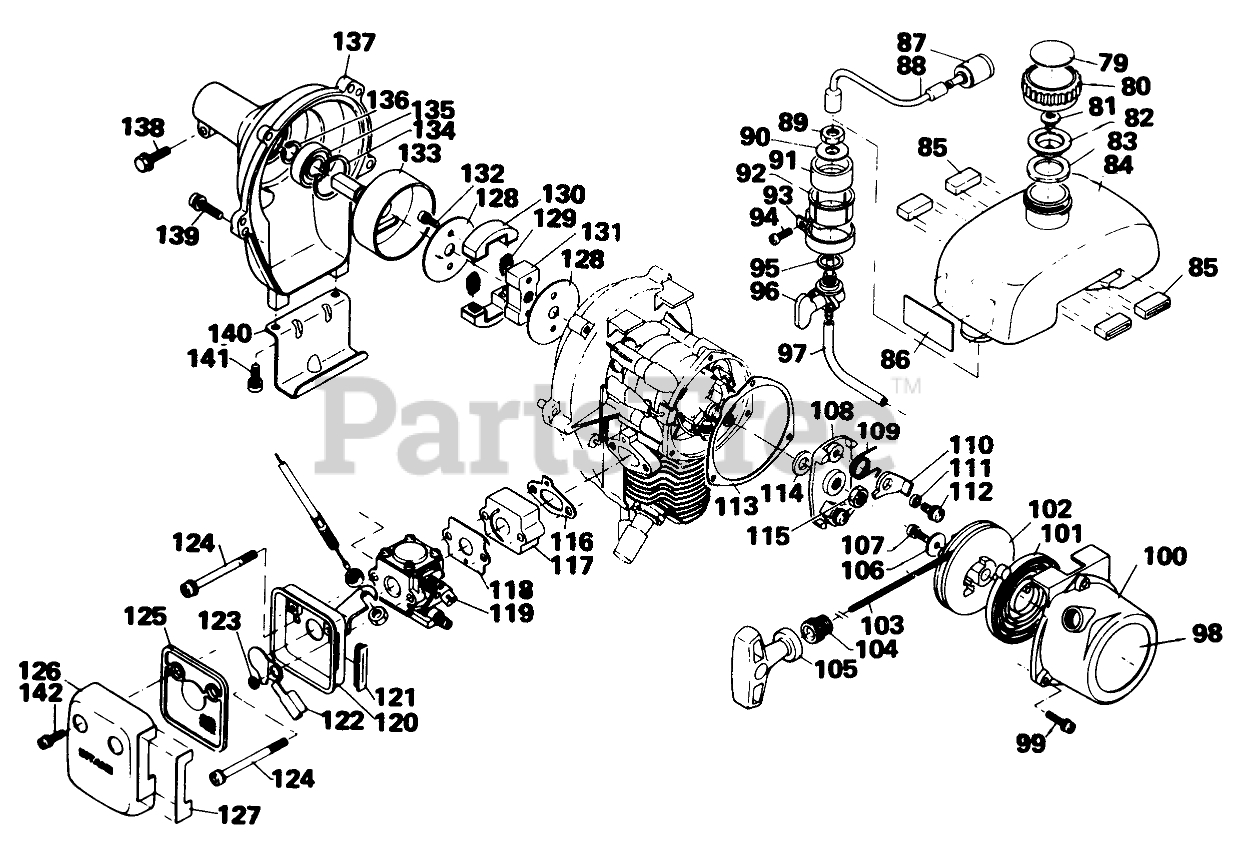

FUEL TANK, RECOIL STARTER & CLUTCH ASSEMBLY Parts Diagram

  • Title

79

Toro 33-6180

Decal, Fuel

$

$

Not available

80

Toro 41-1630

Cap-Fuel Tank
(Superseded to 43-9940)

$

$

Not available

81

Toro 41-1680

Check Valve
(Superseded to 54-5610)

$18.99

$

Usually ships in 3-6 days

0

82

Toro 41-8000

Holder, Check Valve
(Superseded to 41-1590)

$

$

Not available

83

Toro 41-8020

Gasket, Fuel Tank Cap

$

$

Not available

84

Toro 34-7160

Fuel Tank

$

$

Not available

85

Toro 34-7300

Cushion

$

$

Not available

86

Toro 33-8490

Decal, Fuel Valve

$

$

Not available

87

Toro 34-7260

Fuel Strainer
(Superseded to 43-9660)

$

$

Not available

88

Toro 34-7330

Fuel Pipe

$

$

Not available

89

Toro 41-5390

NUT

$

$

Not available

90

Toro 34-7360

WASHER

$

$

Not available

91

Toro 34-7400

SEAL

$

$

Not available

92

Toro 34-7380

Collar
(Superseded to 34-7390)

$

$

Not available

93

Toro 34-7410

CLAMP

$

$

Not available

94

Toro 34-8450

SCREW

$

$

Not available

95

Toro 34-7370

GASKET

$

$

Not available

96

Toro 34-7350

FUEL VALVE ASM

$

$

Not available

97

Toro 34-7340

FUEL PIPE

$

$

Not available

98

Toro 33-8340

Decal

$

$

Not available

99

Toro 34-8540

Screw

$

$

Not available

100

Toro 34-7840

Starter Case

$

$

Not available

101

Toro 34-7900

REWIND SPRING

$

$

Not available

102

Toro 34-7880

RECOIL DRUM

$

$

Not available

103

Toro 34-7910

Rope-Starter
(Superseded to 65-3270)

$

$

Not available

104

Toro 41-3060

Rope Guide
(Superseded to 46-3870)

$

$

Not available

105

Toro 41-3080

Starter Handle
(Superseded to 34-7930)

$

$

Not available

106

Toro 41-2920

Washer

$

$

Not available

107

Toro 41-5150

Screw

$

$

Not available

108

Toro 34-7860

PAWL CATCHER

$

$

Not available

109

Toro 34-7950

Ratchet Spring

$

$

Not available

110

Toro 34-7890

RATCHET

$

$

Not available

111

Toro 41-3240

RATCHET SPACER

$

$

Not available

112

Toro 41-5190

SCREW

$

$

Not available

113

Toro 34-6600

STARTER CASE GASKET

$

$

Not available

114

Toro 34-6520

Spacer

$

$

Not available

115

Toro 34-8680

Nut L.H.

$

$

Not available

116

Toro 34-7020

GASKET

$

$

Not available

117

Toro 34-7040

Insulator

$

$

Not available

118

Toro 34-7030

GASKET

$

$

Not available

119

Toro 34-6680

Carburetor Assy.

$

$

Not available

120

Toro 34-7060

Case, Air Cleaner

$

$

Not available

121

Toro 41-3660

GROMMET

$

$

Not available

122

Toro 41-3600

Choke Shutter

$

$

Not available

123

Toro 41-3610

CHOKE SHUTTER SPACER

$

$

Not available

124

Toro 34-8610

SCREW

$

$

Not available

125

Toro 41-1440

AIR FILTER

$

$

Not available

126

Toro 34-7100

Cover, Air Filter

$

$

Not available

127

Toro 34-8290

Decal, Caution

$

$

Not available

128

Toro 34-7800

Side Plate, Clutch

$

$

Not available

129

Toro 34-7790

Clutch Spring

$

$

Not available

130

Toro 41-2710

CLUTCH SHOE

$

$

Not available

131

Toro 34-7760

Clutch Boss

$

$

Not available

132

Toro 41-5150

Screw

$

$

Not available

133

Toro 34-7730

Clutch Drum

$

$

Not available

134

Toro 41-5560

Circlip

$

$

Not available

135

Toro 34-8760

Bearing

$

$

Not available

136

Toro 41-5550

Circlip

$

$

Not available

137

Toro 34-6640

Fan Cover

$

$

Not available

138

Toro 34-8410

Bolt

$

$

Not available

139

Toro 41-5230

Screw

$

$

Not available

140

Toro 34-8100

Bracket

$

$

Not available

141

Toro 34-8490

Screw

$

$

Not available

142

Toro 34-8530

Screw

$

$

Not available

Toro 41-2170

Cap Ass-y., Fuel Tank (Incl. Ref. #79-84)
(Superseded to 43-9940)

Note: Not illustrated

$

$

Not available

Toro 34-7820

Recoil Starter Ass-y., (Incl. Ref. #98-107)

Note: Not illustrated

$

$

Not available
