51600 - Toro String Trimmer (SN: 008000001 - 008999999) (1978) DRIVE SHAFT ASSEMBLY Parts Diagram

String Trimmer

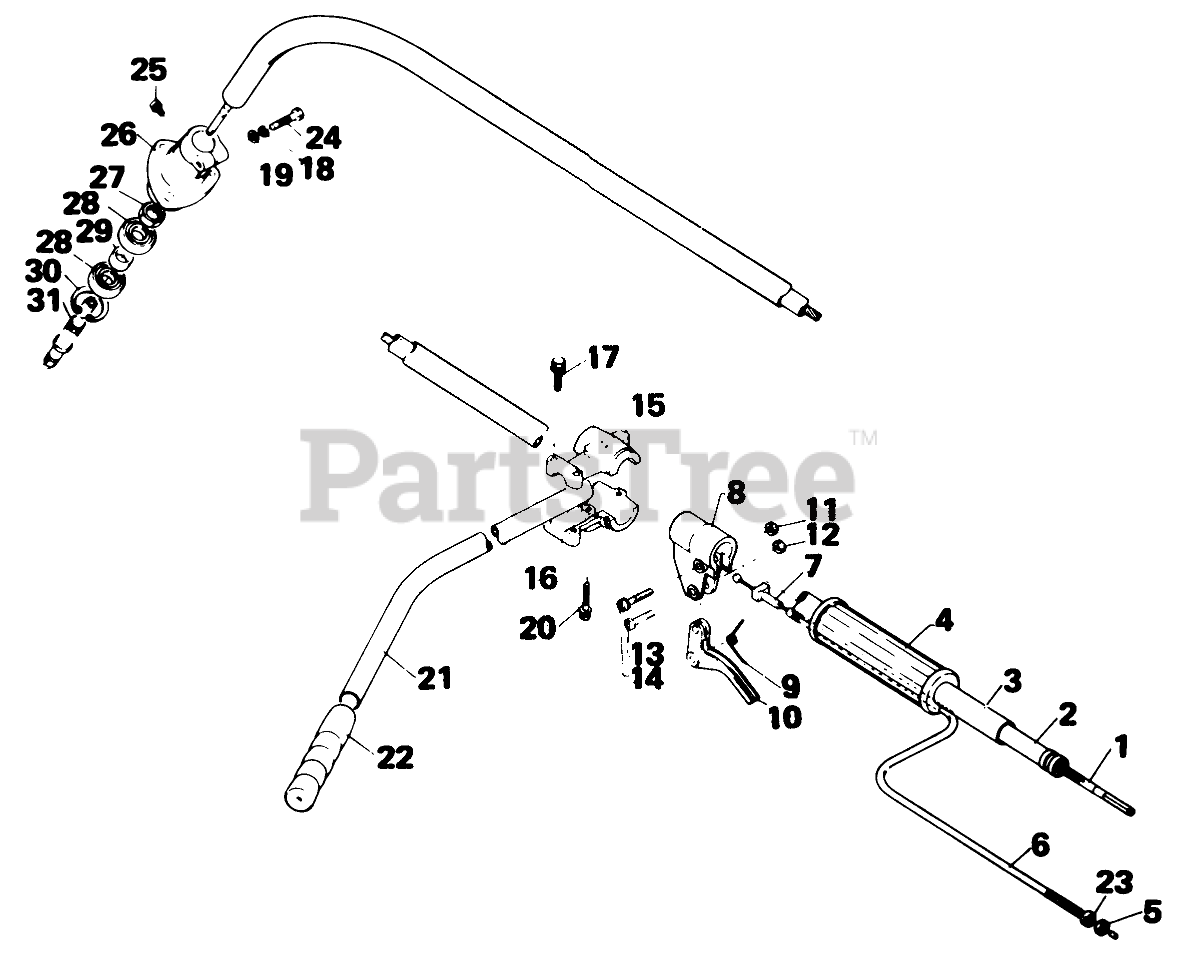

DRIVE SHAFT ASSEMBLY Parts Diagram

  • Title

1

Toro 34-8200

Shaft, Driving

$

$

Not available

2

Toro 34-8220

Bushing

$

$

Not available

3

Toro 34-8210

Housing, Driving Shaft

$

$

Not available

4

Toro 34-8130

Grip

$

$

Not available

5

Toro 32116-1

Nut

$

$

Not available

6

Toro 34-7980

Throttle Cable

$

$

Not available

7

Toro 41-3440

SPACER

$

$

Not available

8

Toro 34-8010

Bracket, Throttle Trigger

$

$

Not available

9

Toro 41-3430

Spring Return

$

$

Not available

10

Toro 34-7990

Throttle Trigger

$

$

Not available

11

Toro 41-5350

Nut
(Superseded to 47-6390)

$

$

Not available

12

Toro 41-4250

Nut

$

$

Not available

13

Toro 41-3460

Screw

$

$

Not available

14

Toro 34-8470

Screw

$

$

Not available

15

Toro 34-8160

Bracket, Handle

$

$

Not available

16

Toro 34-8170

Bracket, Handle

$

$

Not available

17

Toro 34-8420

Bolt

$

$

Not available

18

Toro 41-5490

Washer
(Superseded to 71-1150)

$

$

Not available

19

Toro 41-5430

Washer

$

$

Not available

20

Toro 34-8430

Bolt

$

$

Not available

21

Toro 34-8140

Handle

$

$

Not available

22

Toro 34-8150

Grip

$

$

Not available

23

Toro 34-8000

Nut, Special

$

$

Not available

24

Toro 34-8450

SCREW

$

$

Not available

25

Toro 41-5160

SCREW

$

$

Not available

26

Toro 34-8250

Housing, Bearing

$

$

Not available

27

Toro 34-8670

Nut

$

$

Not available

28

Toro 34-8760

Bearing

$

$

Not available

29

Toro 34-8240

Spacer

$

$

Not available

30

Toro 41-5560

Circlip

$

$

Not available

31

Toro 34-8230

Shaft, P.T.O.

$

$

Not available

Toro 34-8180

Handle Bracket Ass-y.(Incl. Ref. #15 thru 17 & 20)

Note: Not illustrated

$

$

Not available
