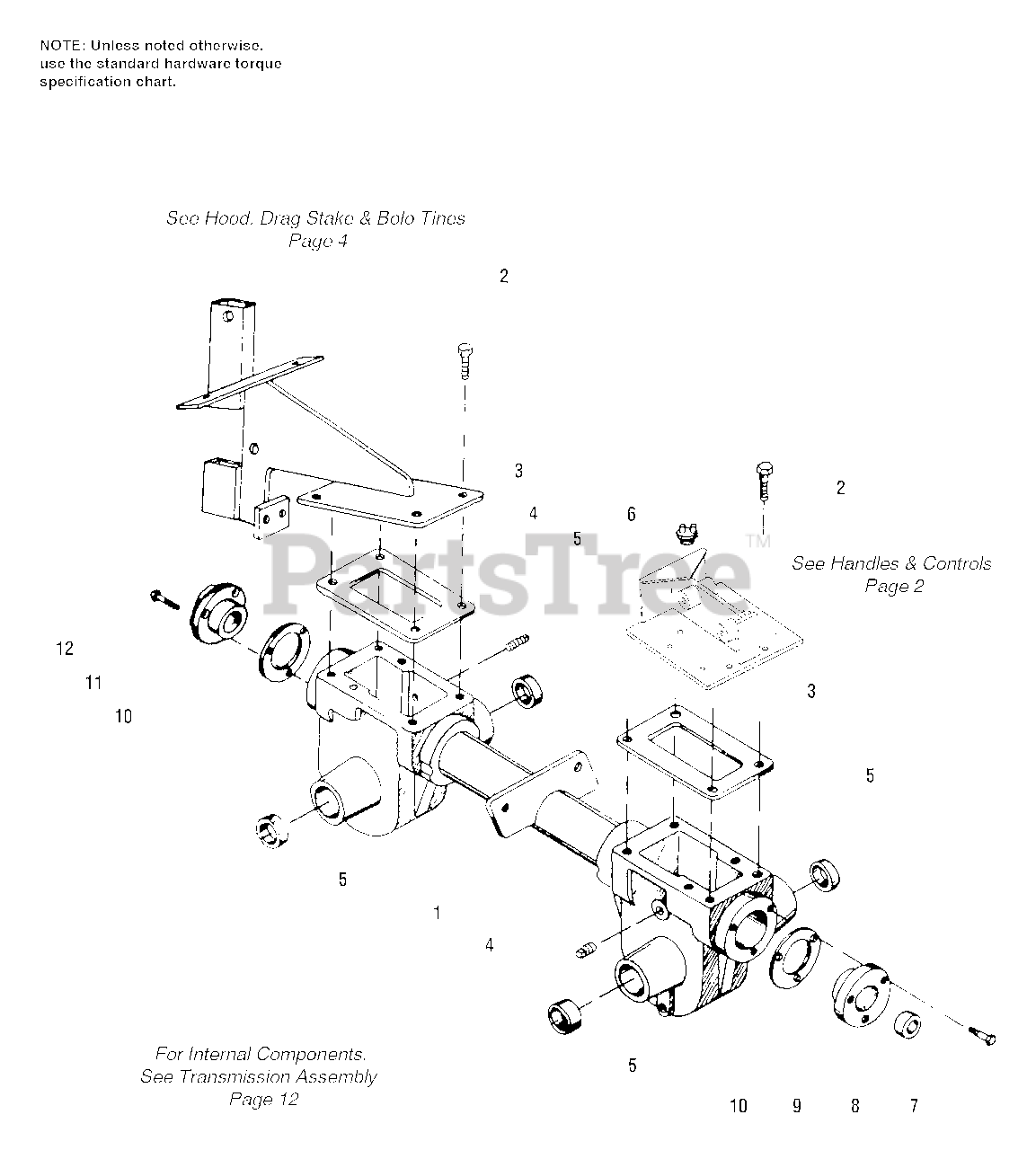

516 RT (1692877) - Simplicity Rear-Tine Tiller, 5hp Transmission Housing Parts Diagram

Rear-Tine Tiller, 5hp

Transmission Housing Parts Diagram

  • Title

1

Simplicity 1721505SM

TRANSMISSION ASSEMBLY

Note: Model 413RT Only (Complete with all gears, shafts, seals, etc.)

$

$

Not available

1

Simplicity 1716788SM

TRANSMISSION ASSEMBLY

Note: Model 516RT Only (Complete with all gears, shafts, seals, etc.)

$1481.99

$

Usually ships in 2-12 days

0

2

Simplicity 1921332SM

BOLT, Hex Flange Hd, 5/16"-18 x 3/4", Grade 5
(Superseded to 704287)

Note: (Tiller Housing & Transmission Cover)

$3.99

$

In Stock, Qty 9

0

3

Simplicity 1716789SM

GASKET, Tiller Housing & Transmission Cover

$15.99

$

In Stock, only 2 left!

0

4

Simplicity 1716790SM

PIPE PLUG, Soc Hd, 1/4"-18, Oil Level

$

$

Not available

5

Simplicity 1716791SM

SEAL, Tiller Housing

$52.99

$

In Stock, only 2 left!

0

6

Simplicity 1716794SM

PLUG, Oil Fill

$16.99

$

Usually ships in 2-12 days

0

7

Simplicity 1716798SM

BOLT, Hex Flange Hd, 1/4"-20 x 3/4"
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0

8

Simplicity 1716797SM

OIL SEAL, Drive Shaft

$19.99

$

Usually ships in 2-12 days

0

9

Simplicity 1716796SM

CAP, Front Bearing

$21.99

$

Usually ships in 2-12 days

0

10

Simplicity 1716792SM

GASKET, Front Rear Bearing Cap

$15.99

$

Usually ships in 2-12 days

0

11

Simplicity 1716793SM

CAP, Rear Bearing

$35.99

$

Usually ships in 2-12 days

0

12

Simplicity 1716795SM

BOLT, Hex Flange Hd, 1/4"-20 x 7/8"

$3.49

$

Usually ships in 2-12 days

0

Simplicity 1716799SM

KIT, Oil Seal Gasket,

Note: (Includes Ref. Nos. 3, 5, 8 & 10). Not shown as a kit in illustration.

$73.99

$

Usually ships in 2-12 days
