516 RT (1692877) - Simplicity Rear-Tine Tiller, 5hp Transmission Assembly Parts Diagram

Rear-Tine Tiller, 5hp

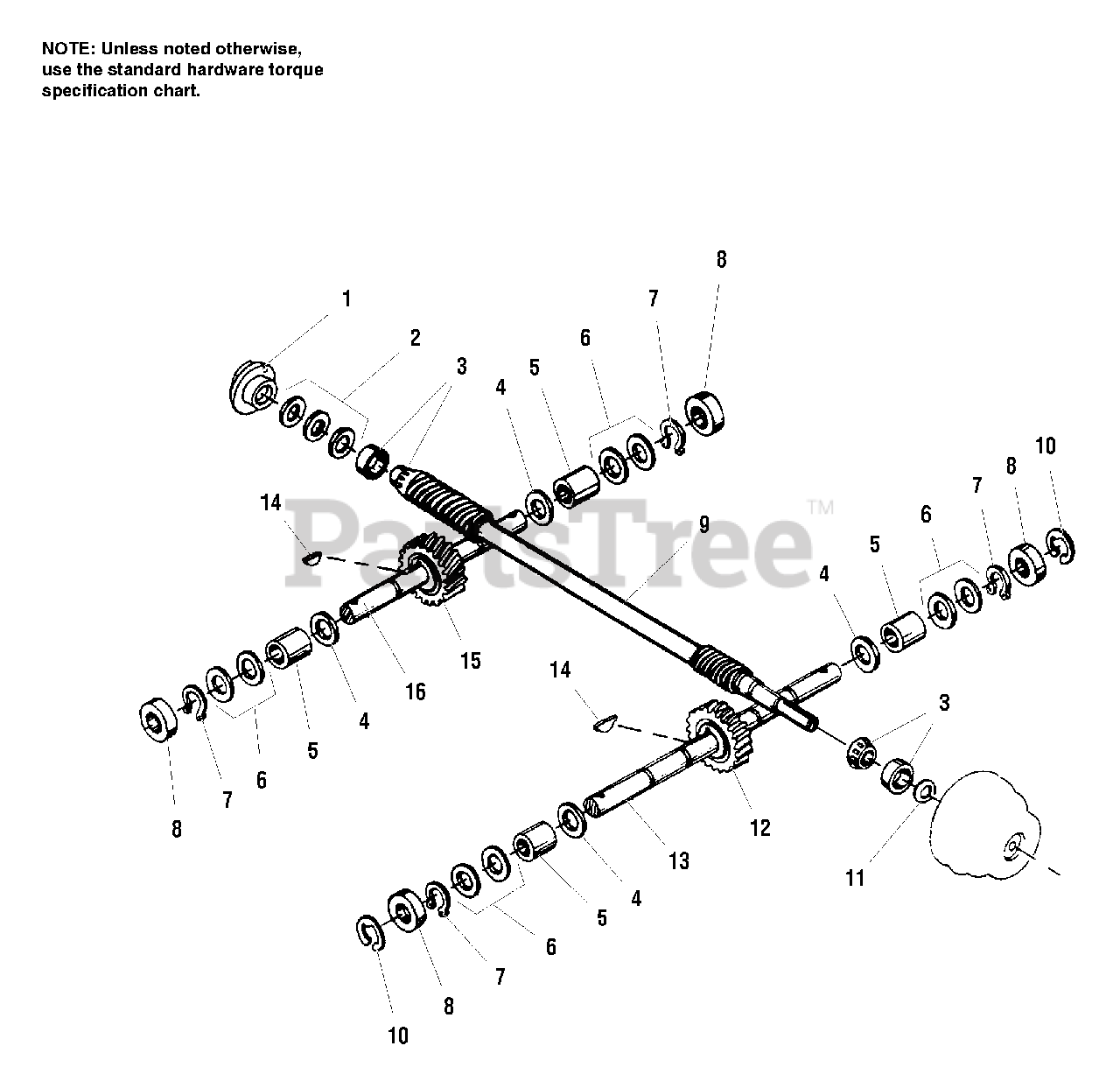

Transmission Assembly Parts Diagram

  • Title

1

Simplicity 1716793SM

CAP, Rear Bearing

$35.99

$

Usually ships in 2-12 days

0

2

Simplicity 1716825SM

SHIM SET, Rear Bearing Cap
(Superseded to 1739268YP)

Note: (Includes the following)

$49.99

$

Usually ships in 2-12 days

0

2

Simplicity 1716826SM

SHIM, 1.750 OD x .062" thick

Note: (As req'd.)

$3.99

$

Usually ships in 2-12 days

0

2

Simplicity 1716827SM

SHIM, 1.750 OD x .030" thick

Note: (As req'd.)

$5.99

$

Usually ships in 2-12 days

0

2

Simplicity 1716828SM

SHIM, 1.750 OD x .015" thick

Note: (As req'd.)

$3.99

$

Usually ships in 2-12 days

0

2

Simplicity 1716829SM

SHIM, 1.750 OD x .010" thick

Note: (As req'd.)

$5.49

$

In Stock, only 3 left!

0

3

Simplicity 1716810SM

BEARING, Tapered

Note: (Includes Cone & Race)

$56.99

$

Usually ships in 2-12 days

0

4

Simplicity 1716824SM

SPACER, 1.250" x 1.000" x .062" thick

$5.49

$

Usually ships in 2-12 days

0

5

Simplicity 1716816SM

BUSHING

$

$

Not available

6

Simplicity 1716815SM

SHIM SET, Axle Spacer Kit
(Superseded to 1739268YP)

Note: (Includes the following)

$49.99

$

Usually ships in 2-12 days

0

6

Simplicity 1716817SM

SHIM, 1.375 OD x .062" thick

Note: (As req'd.)

$5.49

$

Usually ships in 2-12 days

0

6

Simplicity 1716818SM

SHIM, 1.375 OD x .030" thick

Note: (As req'd.)

$5.49

$

Usually ships in 2-12 days

0

6

Simplicity 1716819SM

SHIM, 1.375 OD x .015" thick

Note: (As req'd.)

$4.99

$

Usually ships in 2-12 days

0

6

Simplicity 1716820SM

SHIM, 1.375 OD x .010" thick

Note: (As req'd.)

$4.49

$

In Stock, only 1 left!

0

7

Simplicity 1716830SM

SNAP RING, Retainer, Internal

$4.49

$

Usually ships in 2-12 days

0

8

Simplicity 1716791SM

SEAL, Tiller Housing

$52.99

$

In Stock, only 2 left!

0

9

Simplicity 1716809SM

MAIN DRIVE SHAFT

$296.99

$

Usually ships in 2-12 days

0

10

Simplicity 1716821SM

SNAP RING, Retainer, External

$6.49

$

Usually ships in 2-12 days

0

11

Simplicity 1716797SM

OIL SEAL, Drive Shaft

$19.99

$

Usually ships in 2-12 days

0

12

Simplicity 1716814SM

GEAR, Worm, Wheel Shaft

$176.99

$

Usually ships in 2-12 days

0

13

Simplicity 1716811SM

WHEEL SHAFT ASSEMBLY, Lockpin

Note: Model 413RT Only

$102.99

$

Usually ships in 2-12 days

0

13

Snapper 1716812SM

WHEEL SHAFT ASSEMBLY, Lockout

Note: Model 516RT Only

$55.99

$

Usually ships in 2-12 days

0

14

Simplicity 1716813SM

KEY, 1/4" x 1"

$5.49

$

Usually ships in 2-12 days

0

15

Simplicity 1716823SM

GEAR, Worm, Tiller Shaft

$222.99

$

Usually ships in 2-12 days

0

16

Simplicity 1716822SM

TILLER SHAFT ASSEMBLY

$95.99

$

Usually ships in 2-12 days

0
