516 RT (1692877) - Simplicity Rear-Tine Tiller, 5hp Handles & Controls Parts Diagram

Rear-Tine Tiller, 5hp

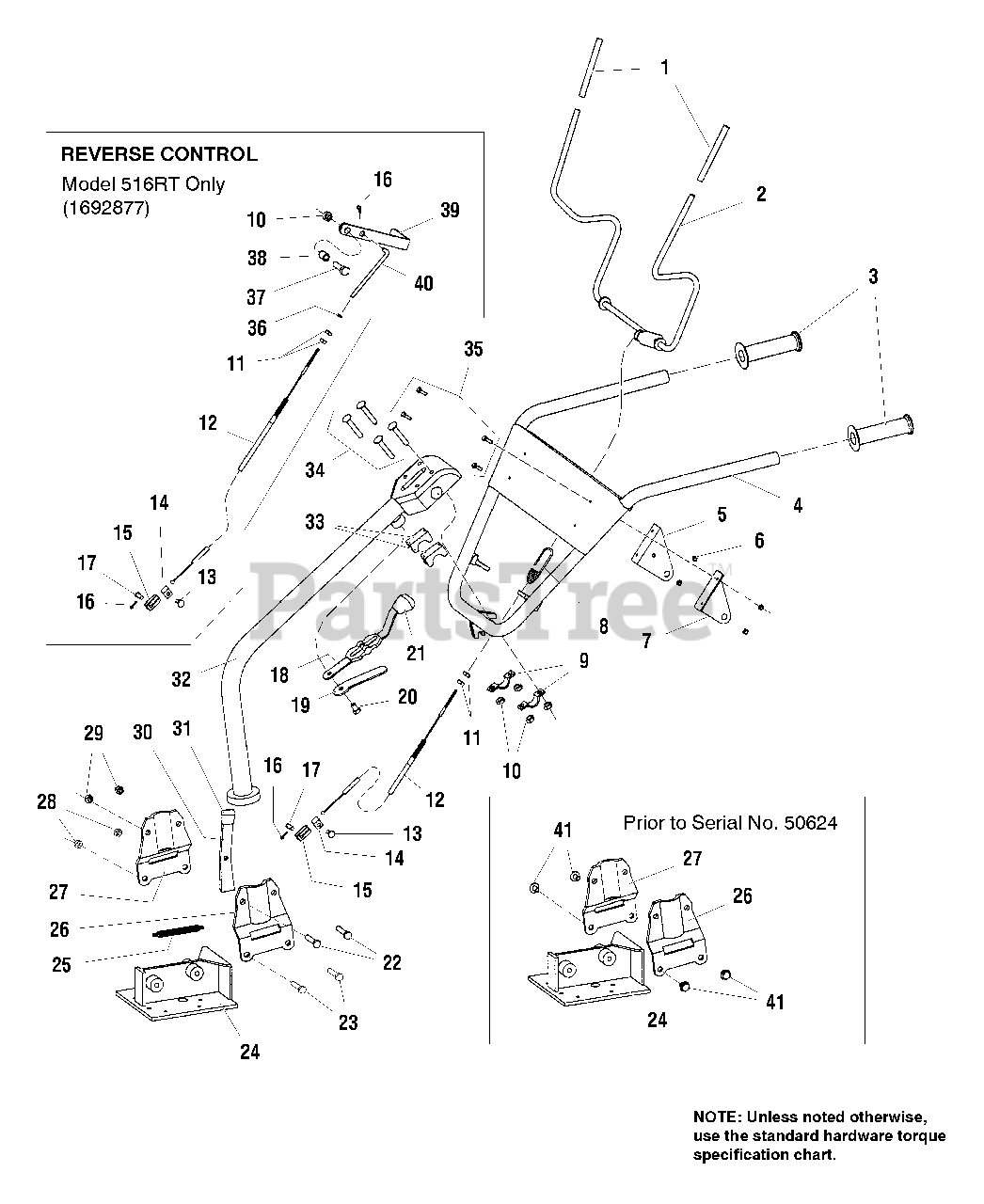

Handles & Controls Parts Diagram

  • Title

1

Simplicity 1716699SM

HANDLE GRIP, Drive Control Lever

$6.99

$

Usually ships in 2-12 days

0

2

Simplicity 1716721SM

LEVER, Drive Control

$

$

Not available

3

Simplicity 1719038SM

HANDLE GRIP, Black

$13.99

$

In Stock, only 1 left!

0

4

Simplicity 1716718SM

ASSEMBLY, Main Handlebar

$

$

Not available

5

Simplicity 1716722SM

BRACKET, Drive Control Lever, Right

$

$

Not available

6

Simplicity 1716732SM

NUT, Nyloc, 5mm x 0.8mm

$2.49

$

Usually ships in 2-12 days

0

7

Simplicity 1716723SM

BRACKET, Drive Control Lever, Left

$12.99

$

Usually ships in 2-12 days

0

8

Simplicity 1716720SM

SPRING, Forward Cable Adjust

$

$

Not available

9

Simplicity 1716709SM

CLAMP, Handlebar Tilt

$19.99

$

In Stock, only 1 left!

0

10

Simplicity 1917372SM

NUT, 5/16"-18
(Superseded to 7091511SM)

Note: (Qty. 4 on Model 413RT). Reverse Control Model 516RT Only (1692877)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 2820438SM

NUT, Jam, 5/16"-24

Note: (Qty. 2 on Model 413RT). Reverse Control Model 516RT Only (1692877)

$3.49

$

In Stock, only 2 left!

0

12

Simplicity 1719037SM

CABLE ASSEMBLY, Control Engage

Note: (Qty. 1 on Model 413RT). Reverse Control Model 516RT Only (1692877)

$67.99

$

In Stock, only 1 left!

0

13

Simplicity 1921958SM

BOLT, Hex Hd, 1/4"-20 x 1/2"

Note: (Qty. 1 on Model 413RT). Reverse Control Model 516RT Only (1692877)

$3.99

$

Usually ships in 2-12 days

0

14

Simplicity 1716727SM

CLAMP, Cable

Note: (Qty. 1 on Model 413RT). Reverse Control Model 516RT Only (1692877)

$8.49

$

Usually ships in 2-12 days

0

15

Simplicity 1716728SM

YOKE, Cable

Note: (Qty. 1 on Model 413RT). Reverse Control Model 516RT Only (1692877)

$

$

Not available

16

Simplicity 1716703SM

COTTER PIN

Note: (Qty. 1 on Model 413RT). Reverse Control Model 516RT Only (1692877)

$3.99

$

Usually ships in 2-12 days

0

17

Simplicity 1716702SM

PIN, Link

Note: (Qty. 1 on Model 413RT). Reverse Control Model 516RT Only (1692877)

$3.99

$

Usually ships in 2-12 days

0

18

Simplicity 1716707SM

LEVER, Handlebar Tilt

$213.99

$

Usually ships in 2-12 days

0

19

Simplicity 1716714SM

STOP, Handlebar Tilt Lever

$25.99

$

Usually ships in 2-12 days

0

20

Simplicity 1716715SM

BOLT, 8mm x 16mm

$3.99

$

Usually ships in 2-12 days

0

21

Simplicity 1716708SM

KNOB, Handlebar Tilt Lever

$9.99

$

Usually ships in 2-12 days

0

22

Simplicity 1716716SM

BOLT, 10mm x 30mm

$4.99

$

Usually ships in 2-12 days

0

23

Simplicity 1923141SM

BOLT, Hex Hd, 5/16" - 18 x 2-3/4", Grade 5
(Superseded to 703869)

Note: Serial Nos. 50624 and above use Ref. Nos. 23 & 28. Prior models use Ref. No. 41.

$6.49

$

Usually ships in 2-12 days

0

24

Simplicity 1716724SM

COVER, Transmission Wheel Housing

Note: Prior to Serial No. 50624

$165.99

$

Usually ships in 2-12 days

0

25

Simplicity 1716710SM

SPRING, Handlebar Swivel

$24.99

$

Usually ships in 2-12 days

0

26

Simplicity 1716719SM

MOUNT, Handlebar Stem, Left

Note: Prior to Serial No. 50624

$57.99

$

Usually ships in 2-12 days

0

27

Simplicity 1716706SM

MOUNT, Handlebar Stem, Right

Note: Prior to Serial No. 50624

$78.99

$

Usually ships in 2-12 days

0

28

Simplicity 1935048SM

NUT, Bi-way Lock, 5/16"-18
(Superseded to 704067)

Note: Serial Nos. 50624 and above use Ref. Nos. 23 & 28. Prior models use Ref. No. 41.

$3.99

$

In Stock, Qty 20+

0

29

Simplicity 1716717SM

NUT, Nyloc, 10mm

$3.49

$

Usually ships in 2-12 days

0

30

Simplicity 1716712SM

LEVER, Handlebar Swivel

$51.99

$

Usually ships in 2-12 days

0

31

Simplicity 1716711SM

KNOB, Handlebar Swivel Lever

$17.99

$

Usually ships in 2-12 days

0

32

Simplicity 1716713SM

HANDLEBAR STEM

$

$

Not available

33

Simplicity 1716705SM

TILT FRICTION PAD

$

$

Not available

34

Simplicity 1931339SM

BOLT, Carriage Hd, 5/16"-18 x 2"
(Superseded to 704035)

$4.49

$

In Stock, only 2 left!

0

35

Simplicity 1716731SM

BOLT, Hex Hd, 5mm x 0.8mm x 10mm

$1.99

$

Usually ships in 2-12 days

0

36

Simplicity 1933896SM

NUT, Nyloc, #10
(Superseded to 703412)

Note: Model 516RT Only. Reverse Control Model 516RT Only (1692877)

$4.49

$

In Stock, only 2 left!

0

37

Simplicity 1921978SM

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

Note: Model 516RT Only. Reverse Control Model 516RT Only (1692877)

$4.99

$

In Stock, only 4 left!

0

38

Simplicity 1716704SM

BUSHING, Pivot, 5/16"

Note: Model 516RT Only. Reverse Control Model 516RT Only (1692877)

$12.99

$

Usually ships in 2-12 days

0

39

Simplicity 1716725SM

REVERSE HANDLE

Note: Model 516RT Only. Reverse Control Model 516RT Only (1692877)

$23.99

$

Usually ships in 2-12 days

0

40

Simplicity 1716729SM

REVERSE LINK

Note: Model 516RT Only. Reverse Control Model 516RT Only (1692877)

$42.99

$

Usually ships in 2-12 days

0

41

Simplicity 1716701SM

BOLT, Hex Flange Hd, 5/16"-18 x 1/2", Grade 5 (Prior to Serial No. 50624)

Note: Serial Nos. 50624 and above use Ref. Nos. 23 & 28. Prior models use Ref. No. 41.

$

$

Not available
