51598 (225) - Toro Ultra Blower Vacuum (SN: 230000001 - 230999999) (2003) BLOWER/VACUUM ASSEMBLY Parts Diagram

Ultra Blower Vacuum

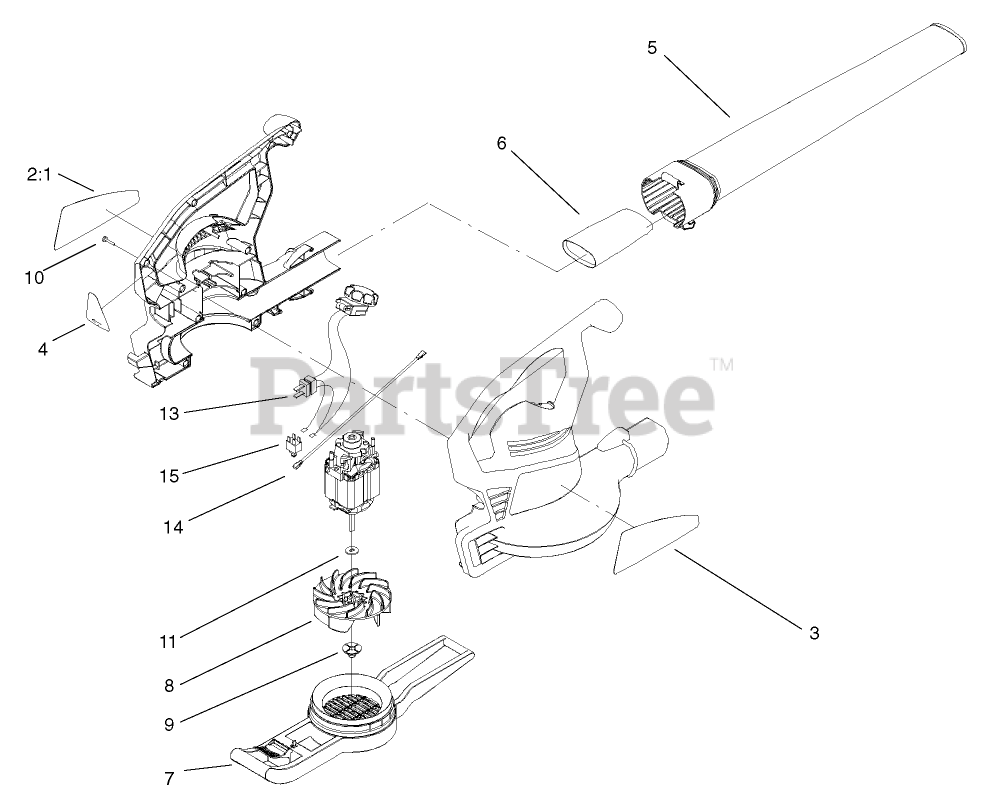

BLOWER/VACUUM ASSEMBLY Parts Diagram

  • Title

2:1

Toro 100-9087

Label Stock-Serial

$

$

Currently unavailable

2

Decal-Serial, Ultrablower

Note: Not serviced separately

$

$

Not available

3

Toro 100-9089

DECAL-ULTRABLOWER

$

$

Not available

4

Toro 100-9088

DECAL-LOCK, CORD

$2.99

$

Usually ships in 3-6 days

0

5

Toro 100-9072

TUBE-BLOWER

$

$

Not available

6

Toro 100-9069

TUBE-INSERT

$6.49

$

In Stock, Qty 5

0

7

Toro 100-9067

COVER-INLET
(Superseded to 107-9989)

$

$

Not available

8

Toro 100-9076

Impeller-Magnesium

$115.99

$

Usually ships in 3-6 days

0

9

Toro 73-5380

NUT-HEX
(Superseded to 114-9015)

$2.99

$

In Stock, Qty 15

0

10

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

11

Toro 93-0585

WASHER

$1.99

$

In Stock, Qty 8

0

13

Toro 104-3820

WIRE HARNESS ASM
(Superseded to 105-9449)

$

$

Not available

15

Toro 100-9083

SWITCH-INTERLOCK
(Superseded to 107-9967)

$

$

Not available
