51597 - Lawn-Boy 16" Hedge Trimmer, Cordless, 7.2V (SN: 210000001 - 210999999) (2001) HEDGE TRIMMER ASSEMBLY Parts Diagram

16" Hedge Trimmer, Cordless, 7.2V

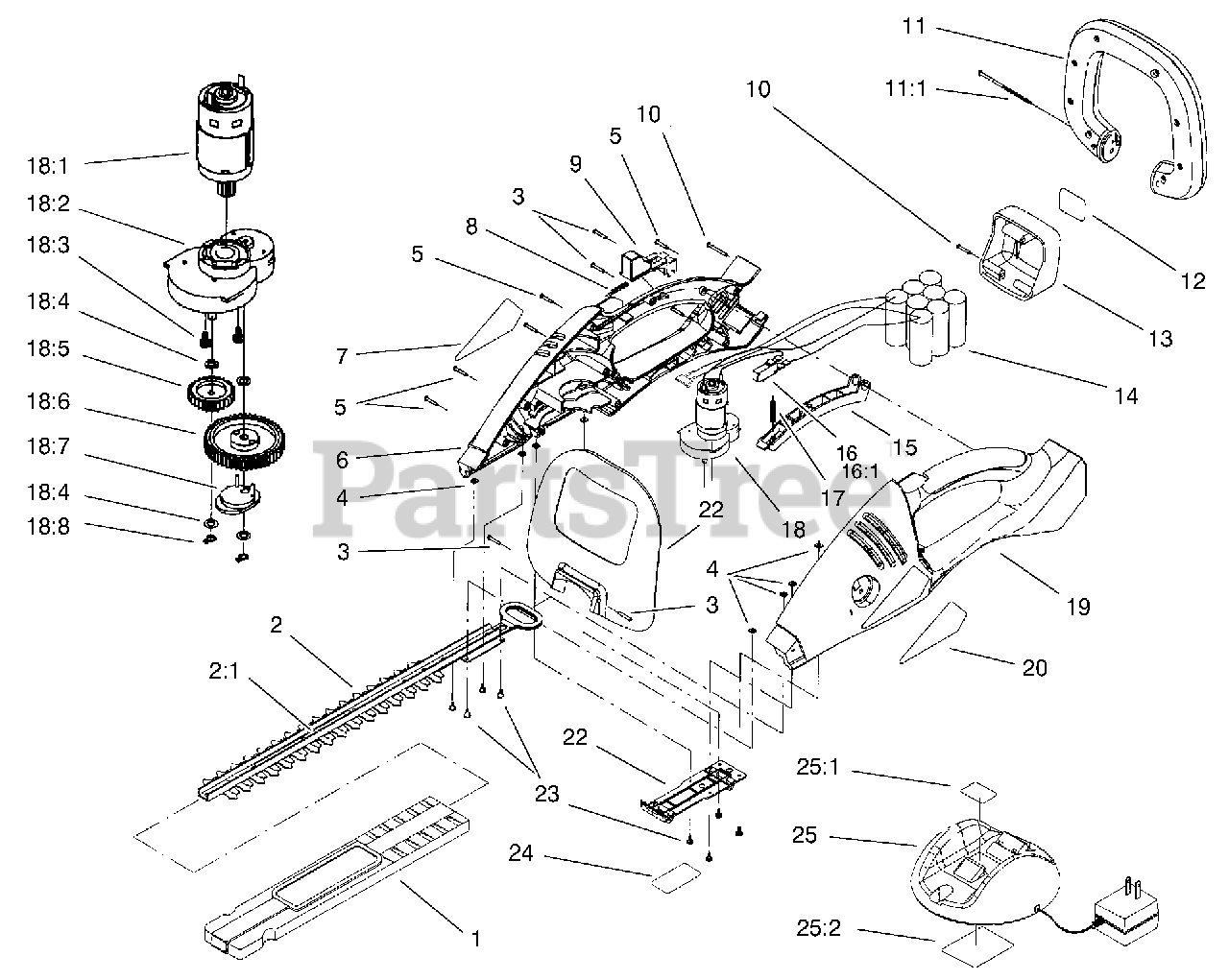

HEDGE TRIMMER ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 99-9851

PROTECTOR - BLADE, 16"

$

$

Not available

2

Lawn-Boy 99-8834

BLADE ASM

$253.99

$

Usually ships in 3-6 days

0

2:1

Lawn-Boy 99-8835

DECAL - SAFETY, BLADE

$

$

Not available

3

Lawn-Boy 99-9866

Screw-PPH

$

$

Not available

4

Lawn-Boy 99-8803

NUT - SQUARE

$5.49

$

Usually ships in 3-6 days

0

5

Lawn-Boy 99-8804

SCREW - PPH

$

$

Not available

6

Lawn-Boy 99-8805

HOUSING - COVER

$

$

Not available

7

Lawn-Boy 99-8806

Decal-Housing, Cover

$

$

Currently unavailable

8

Lawn-Boy 99-8807

SPRING - BUTTON, SAFETY

$

$

Not available

9

Lawn-Boy 99-8808

BUTTON - SAFETY

$

$

Not available

10

Lawn-Boy 99-8809

SCREW - PPH

$

$

Not available

11

Lawn-Boy 99-8811

SAFETY HANDLE ASM

$

$

Not available

11:1

Lawn-Boy 99-8810

SCREW - PPH

$

$

Not available

12

Lawn-Boy 99-8812

DECAL - COVER, BATTERY

$

$

Not available

13

Lawn-Boy 99-8813

COVER - BATTERY

$

$

Not available

14

Lawn-Boy 99-8814

BATTERY ASM

$

$

Not available

15

Lawn-Boy 99-8815

BUTTON - ON/OFF

$

$

Not available

16

Lawn-Boy 99-8817

HARNESS - WIRE ASM

$

$

Not available

16:1

Lawn-Boy 99-8816

Switch-On/Off
(Superseded to 99-8817)

$

$

Not available

17

Lawn-Boy 99-8818

SPRING - BUTTON, ON/OFF

$

$

Not available

18

Lawn-Boy 99-8819

MOTOR AND GEAR TRAIN ASM

$

$

Not available

18:1

Lawn-Boy 99-8820

MOTOR ASM

$

$

Not available

18:2

Lawn-Boy 99-8821

HOUSING - GEAR ASM

$20.99

$

Usually ships in 3-6 days

0

18:3

Lawn-Boy 99-8822

SCREW - PPH

$

$

Not available

18:4

Lawn-Boy 99-8823

WASHER - FLAT

$

$

Not available

18:5

Lawn-Boy 99-8824

Gear-Center

$

$

Not available

18:6

Lawn-Boy 99-8825

GEAR - FINAL

$73.99

$

Usually ships in 3-6 days

0

18:7

$21.99

$

Usually ships in 3-6 days

0

18:8

Lawn-Boy 99-8827

RING - RETAINING, EXTERNAL

$

$

Not available

19

Lawn-Boy 99-8828

HOUSING - SUPPORT

$

$

Not available

20

Lawn-Boy 99-8829

DECAL - HOUSING, SUPPORT

$

$

Not available

21

Lawn-Boy 99-8830

GUARD - HAND

$

$

Not available

22

Lawn-Boy 99-8831

COVER - BOTTOM

$

$

Not available

23

Lawn-Boy 99-8822

SCREW - PPH

$

$

Not available

24

Lawn-Boy 99-8833

Decal-Model/Warning

$

$

Currently unavailable

25

Lawn-Boy 99-8801

CHARGER ASM

$

$

Not available

25:1

Lawn-Boy 99-8838

DECAL - WARNING

$

$

Not available

25:2

Lawn-Boy 99-8836

DECAL - NAMEPLATE, CHARGER

$

$

Not available
