51596 - Lawn-Boy 18" Hedge Trimmer, Cordless, 14.4V (SN: 210000001 - 210999999) (2001) HEDGE TRIMMER ASSEMBLY Parts Diagram

18" Hedge Trimmer, Cordless, 14.4V

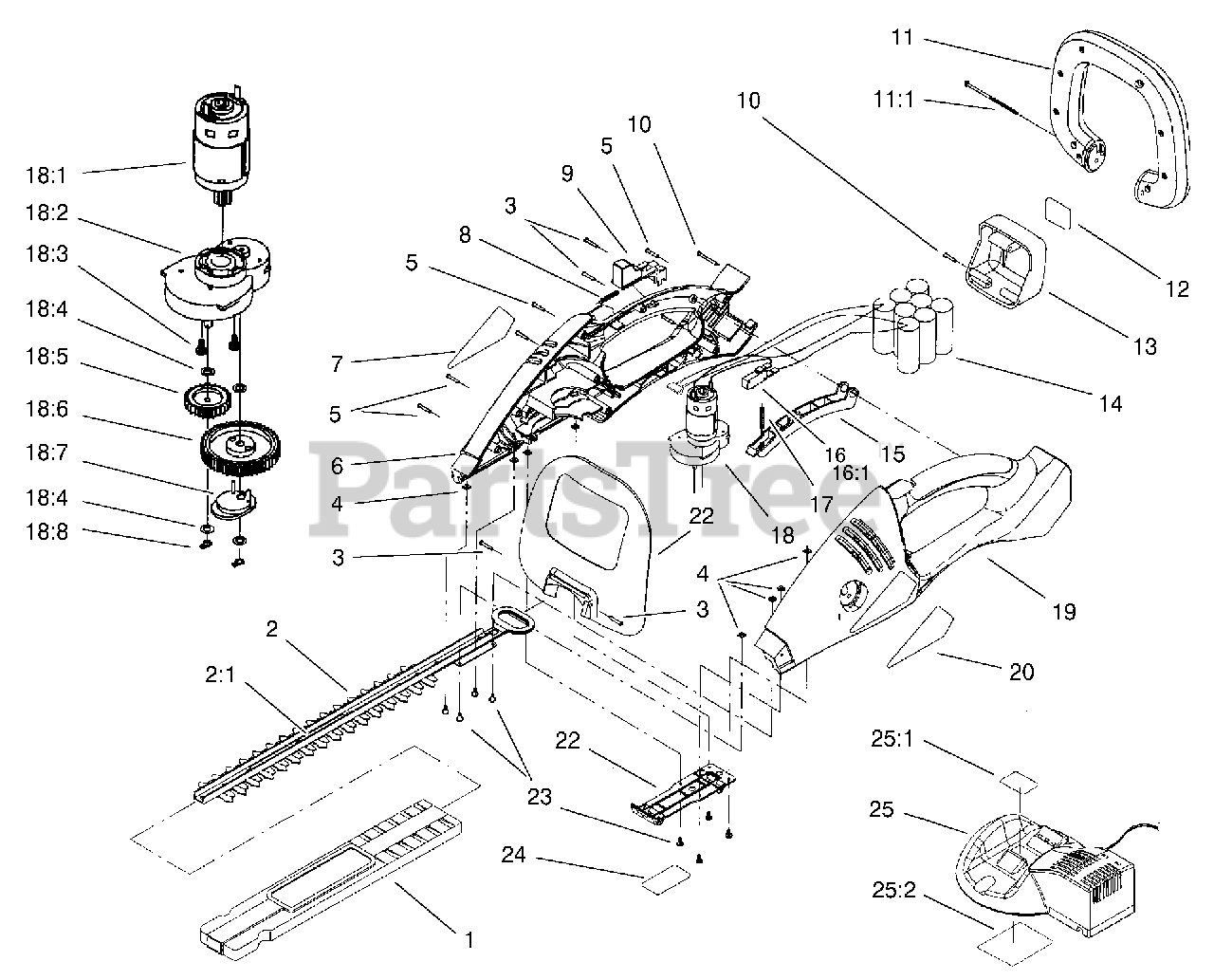

HEDGE TRIMMER ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 99-9854

PROTECTOR - BLADE, 18"

$

$

Not available

2

Lawn-Boy 99-9855

BLADE ASM

$302.99

$

Usually ships in 3-6 days

0

2:1

Lawn-Boy 99-8835

DECAL - SAFETY, BLADE

$

$

Not available

3

Lawn-Boy 99-9866

Screw-PPH

$

$

Not available

4

Lawn-Boy 99-8803

NUT - SQUARE

$5.49

$

Usually ships in 3-6 days

0

5

Lawn-Boy 99-8804

SCREW - PPH

$

$

Not available

6

Lawn-Boy 99-9856

Housing-Cover

$59.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 99-9857

Decal-Housing, Cover

$10.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 99-8807

SPRING - BUTTON, SAFETY

$

$

Not available

9

Lawn-Boy 99-8808

BUTTON - SAFETY

$

$

Not available

10

Lawn-Boy 99-8809

SCREW - PPH

$

$

Not available

11

Lawn-Boy 99-8811

SAFETY HANDLE ASM

$

$

Not available

11:1

Lawn-Boy 99-8810

SCREW - PPH

$

$

Not available

12

Lawn-Boy 99-8812

DECAL - COVER, BATTERY

$

$

Not available

13

Lawn-Boy 99-9858

Cover-Battery

$

$

Currently unavailable

14

Lawn-Boy 99-9859

BATTERY ASM

$143.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 99-8815

BUTTON - ON/OFF

$

$

Not available

16

Lawn-Boy 99-9860

HARNESS - WIRE ASM

$

$

Not available

16:1

Lawn-Boy 99-8816

Switch-On/Off
(Superseded to 99-8817)

$

$

Not available

17

Lawn-Boy 99-8818

SPRING - BUTTON, ON/OFF

$

$

Not available

18

Lawn-Boy 99-9861

MOTOR AND GEAR TRAIN ASM

$

$

Not available

18:1

Lawn-Boy 99-9862

MOTOR ASM

$

$

Not available

18:2

Lawn-Boy 99-8821

HOUSING - GEAR ASM

$20.99

$

Usually ships in 3-6 days

0

18:3

Lawn-Boy 99-8822

SCREW - PPH

$

$

Not available

18:4

Lawn-Boy 99-8823

WASHER - FLAT

$

$

Not available

18:5

Lawn-Boy 99-8824

Gear-Center

$

$

Not available

18:6

Lawn-Boy 99-8825

GEAR - FINAL

$73.99

$

Usually ships in 3-6 days

0

18:7

$21.99

$

Usually ships in 3-6 days

0

18:8

Lawn-Boy 99-8827

RING - RETAINING, EXTERNAL

$

$

Not available

19

Lawn-Boy 99-9863

Housing-Support

$60.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 99-9864

Decal-Housing, Support

$

$

Not available

21

Lawn-Boy 99-8830

GUARD - HAND

$

$

Not available

22

Lawn-Boy 99-8831

COVER - BOTTOM

$

$

Not available

23

Lawn-Boy 99-8822

SCREW - PPH

$

$

Not available

24

Lawn-Boy 99-9865

Decal-Model/Warning

$

$

Currently unavailable

25

Lawn-Boy 99-8802

CHARGER ASM

$

$

Not available

25:1

Lawn-Boy 99-9868

Decal-Warning

$

$

Not available

25:2

Lawn-Boy 99-9867

Decal-Nameplate, Charger

$

$

Not available
