51589 - Toro Quiet Blower Vacuum (SN: 099100001 - 099499999) (1999) BLOWERVAC ASSEMBLY Parts Diagram

Quiet Blower Vacuum

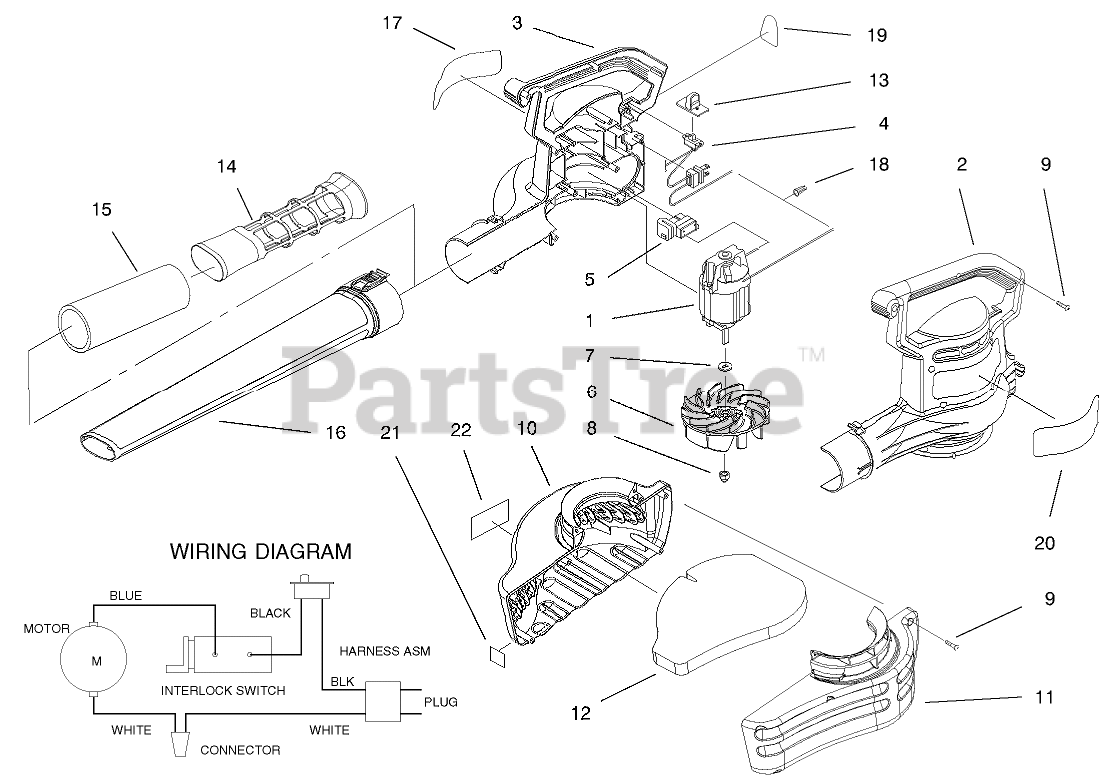

BLOWERVAC ASSEMBLY Parts Diagram

  • Title
1

Toro 98-3171

MOTOR - ELECTRIC, 120 V

$353.99

$

Usually ships in 3-6 days

0

2

Toro 100-2451

Housing-L.H.
(Superseded to 100-2458)

$

$

Not available

3

Toro 100-2450

Housing-R.H.
(Superseded to 100-2458)

$

$

Not available

4

Toro 93-0578

HARNESS ASSEMBLY

$

$

Not available

5

Toro 95-3286

SWITCH - INTERLOCK

$20.99

$

Usually ships in 3-6 days

0

6

Toro 98-3150

IMPELLER - BLOWER
(Superseded to 100-9068)

$40.99

$

In Stock, Qty 20+

0

7

Toro 93-0585

WASHER

$1.99

$

In Stock, Qty 8

0

8

Toro 73-5380

NUT-HEX
(Superseded to 114-9015)

$2.99

$

In Stock, Qty 20+

0

9

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

10

Toro 98-3157

INLET - QUIET, RH
(Superseded to 100-1223)

$

$

Not available

11

Toro 98-3158

INLET - QUIET, LH
(Superseded to 100-1223)

$

$

Not available

12

Toro 98-3174

FOAM - INLET

$

$

Not available

13

Toro 93-0599

COVER - SWITCH, RED

$

$

Not available

14

Toro 98-3156

INSERT - QUIET

$

$

Not available

15

Toro 98-3159

FOAM - INSERT

$

$

Not available

16

Toro 98-3151

TUBE-BLOWER LONG
(Superseded to 93-0571)

Note: Included in tube assembly No. 98-3170

$

$

Not available

17

Toro 100-2465

Decal-Warning

$

$

Not available

18

Toro 73-6570

CONNECTOR-NUT, WIRE

$1.49

$

In Stock, only 2 left!

0

19

Toro 95-5106

DECAL - INFORMATION

$

$

Not available

20

Toro 93-0579

DECAL, LOGO, SUPRBLWR

$

$

Not available

21

Toro 98-3176

DECAL - 63DBA

$

$

Not available

22

Toro 98-3173

DECAL - QUIETECH

$

$

Not available
