51587 - Toro Super Blower Vacuum (SN: 210000001 - 210999999) (2001) BLOWERVAC ASSEMBLY Parts Diagram

Super Blower Vacuum

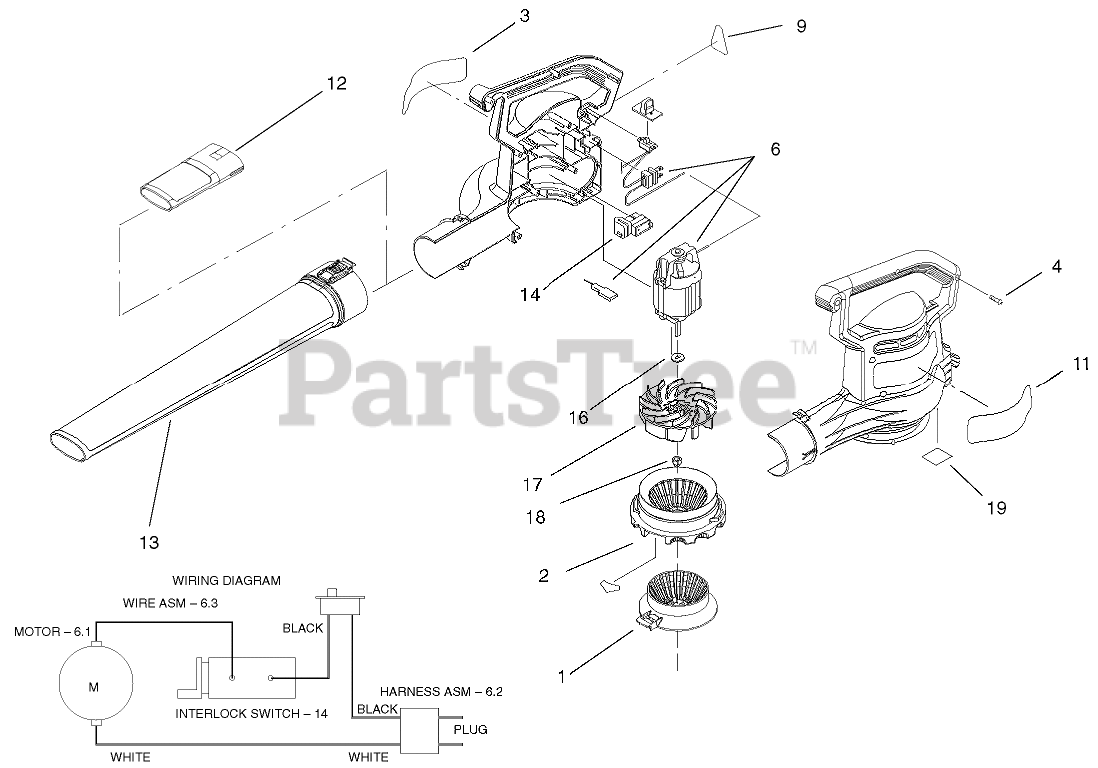

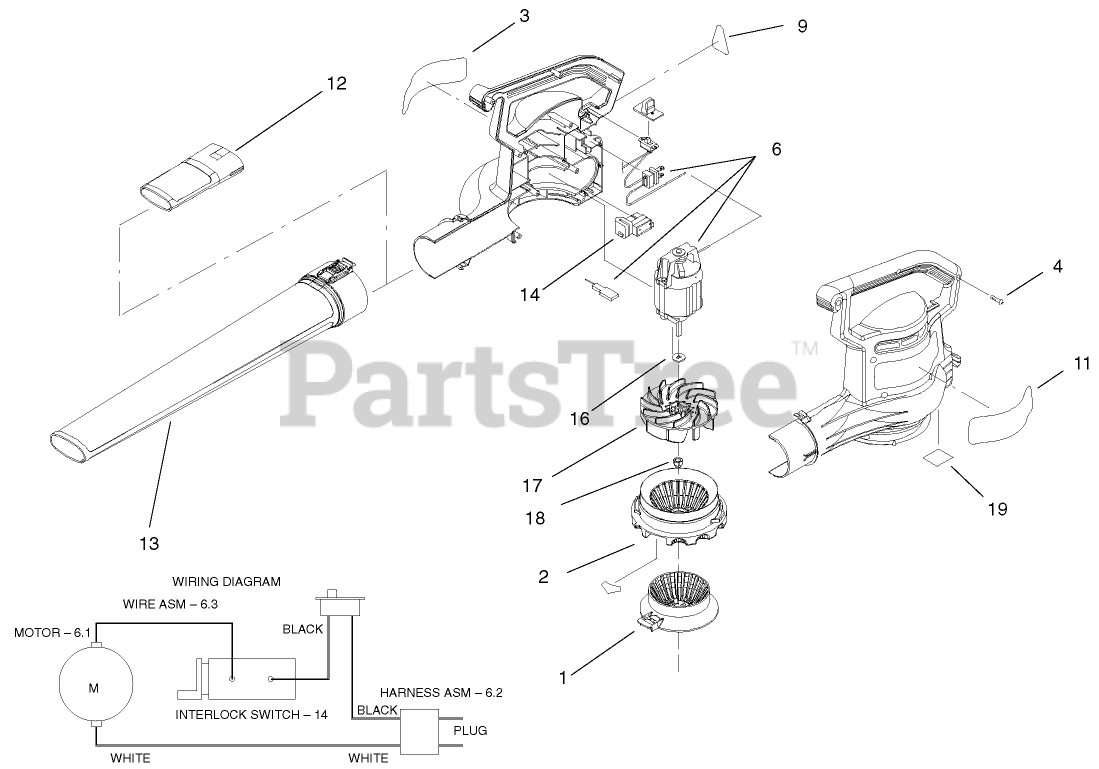

BLOWERVAC ASSEMBLY Parts Diagram

  • Title

1

Toro 98-3155

CHOKE - AIR, RED

$7.99

$

Usually ships in 3-6 days

0

2

Toro 100-9050

ASM-INLET COVER & DECAL

$

$

Not available

3

Toro 100-2462

DECAL - WARNING

$

$

Not available

4

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

6

Toro 100-9095

ASM-Motor & Harness

$

$

Currently unavailable

9

Toro 95-5106

DECAL - INFORMATION

$

$

Not available

11

Toro 93-0579

DECAL, LOGO, SUPRBLWR

$

$

Not available

12

Toro 98-3152

INSERT - TUBE

$

$

Not available

13

Toro 98-3151

TUBE-BLOWER LONG
(Superseded to 93-0571)

$

$

Not available

14

Toro 95-3286

SWITCH - INTERLOCK

$20.99

$

Usually ships in 3-6 days

0

16

Toro 93-0585

WASHER

$1.99

$

In Stock, Qty 8

0

17

Toro 98-3150

IMPELLER - BLOWER
(Superseded to 100-9068)

$40.99

$

In Stock, Qty 20+

0

18

Toro 73-5380

NUT-HEX
(Superseded to 114-9015)

$2.99

$

In Stock, Qty 20+

0
