51587 - Toro Super Blower Vacuum (SN: 200000001 - 200068461) (2000) BLOWERVAC ASSEMBLY Parts Diagram

Super Blower Vacuum

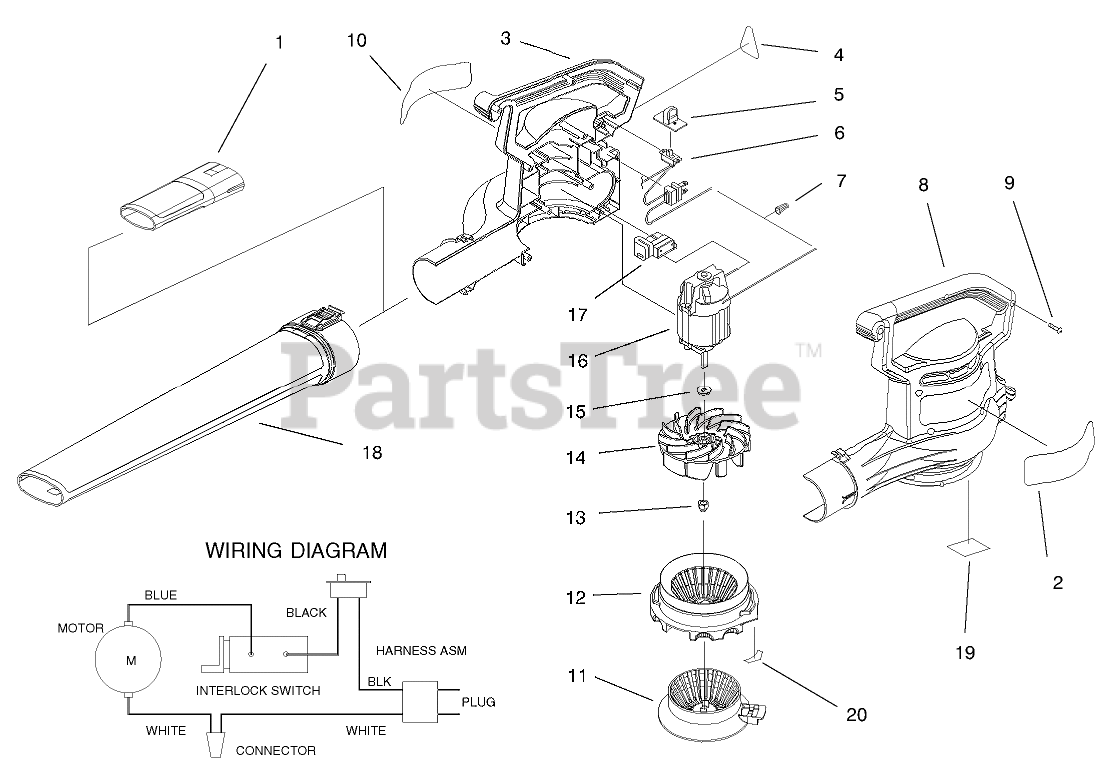

BLOWERVAC ASSEMBLY Parts Diagram

  • Title

1

Toro 98-3152

INSERT - TUBE

$

$

Not available

2

Toro 93-0579

DECAL, LOGO, SUPRBLWR

$

$

Not available

3

Toro 100-2450

Housing-R.H.
(Superseded to 100-2458)

$

$

Not available

4

Toro 95-5106

DECAL - INFORMATION

$

$

Not available

5

Toro 93-0599

COVER - SWITCH, RED

$

$

Not available

6

Toro 93-0578

HARNESS ASSEMBLY

$

$

Not available

7

Toro 73-6570

CONNECTOR-NUT, WIRE

$1.49

$

In Stock, only 2 left!

0

8

Toro 100-2451

Housing-L.H.
(Superseded to 100-2458)

$

$

Not available

9

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

10

Toro 100-2463

DECAL-SERIAL, SUPERBLOWER

$

$

Not available

11

Toro 98-3155

CHOKE - AIR, RED

$7.99

$

Usually ships in 3-6 days

0

12

Toro 100-2468

Cover-Inlet
(Superseded to 100-9050)

$

$

Not available

13

Toro 73-5380

NUT-HEX
(Superseded to 114-9015)

$2.99

$

In Stock, Qty 20+

0

14

Toro 98-3150

IMPELLER - BLOWER
(Superseded to 100-9068)

$40.99

$

In Stock, Qty 20+

0

15

Toro 93-0585

WASHER

$1.99

$

In Stock, Qty 8

0

16

Toro 98-3171

MOTOR - ELECTRIC, 120 V

$353.99

$

Usually ships in 3-6 days

0

17

Toro 95-3286

SWITCH - INTERLOCK

$20.99

$

Usually ships in 3-6 days

0

18

Toro 98-3151

TUBE-BLOWER LONG
(Superseded to 93-0571)

Note: Included in tube assembly No. 98-3170

$

$

Not available

19

Toro 100-2464

DECAL-ALIGNMENT, HOUSING

$

$

Not available

20

Toro 100-2470

DECAL-ALIGNMENT, COVER

$

$

Not available
