51586 - Toro Power Sweep Blower (SN: 200055100 - 200058581) (2000) POWER SWEEP BLOWER ASSEMBLY Parts Diagram

Power Sweep Blower

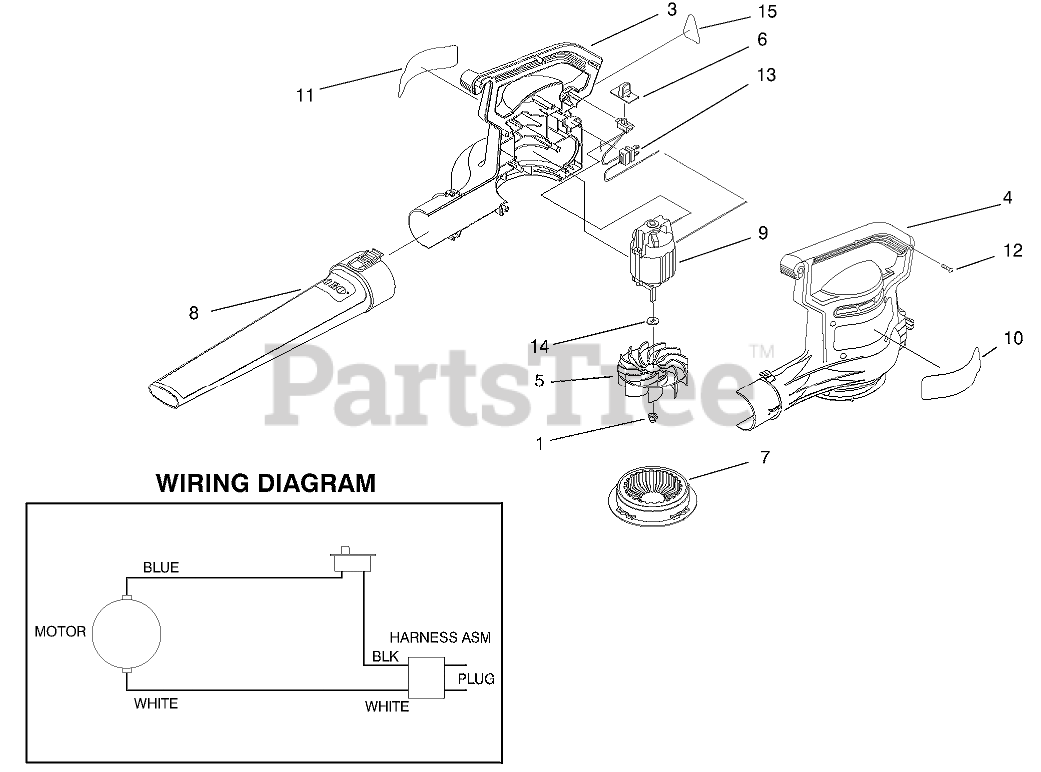

POWER SWEEP BLOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Toro 100-2452

Housing-RH
(Superseded to 100-2459)

$68.99

$

Usually ships in 3-6 days

0

4

Toro 100-2453

HOUSING-LH
(Superseded to 100-2459)

$68.99

$

Usually ships in 3-6 days

0

5

Toro 93-0564

IMPELLER, BLOWER

$

$

Not available

6

Toro 93-0565

COVER-SWITCH

$

$

Not available

7

Toro 94-9320

COVER - INLET

$6.49

$

Usually ships in 3-6 days

0

8

Toro 93-0571

TUBE - BLOWER SHORT

$

$

Not available

9

Toro 100-2487

MOTOR

$

$

Not available

10

Toro 95-3019

DECAL - POWER SWEEP

$2.99

$

Usually ships in 3-6 days

0

11

Toro 100-2462

DECAL - WARNING

$

$

Not available

12

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

13

Toro 100-2486

HARNESS ASM
(Superseded to 100-9092)

$

$

Not available

14

Toro 93-0585

WASHER

$1.49

$

In Stock, Qty 8

0

15

Toro 95-5106

DECAL - INFORMATION

$

$

Not available
