51586 - Toro Power Sweep Blower (SN: 099000001 - 099100000) (1999) POWER SWEEP BLOWER ASSEMBLY Parts Diagram

Power Sweep Blower

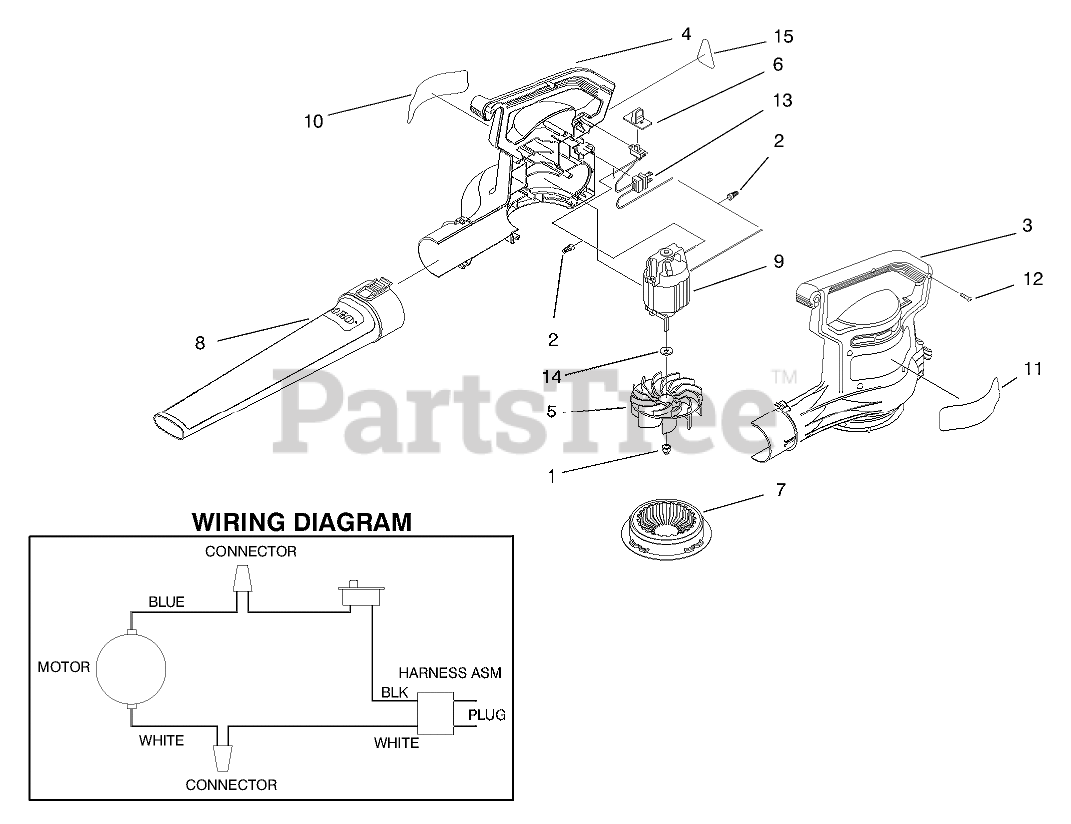

POWER SWEEP BLOWER ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 73-6570

CONNECTOR-NUT, WIRE

$1.49

$

In Stock, only 2 left!

0

3

Toro 95-3021

HOUSING - LH

$

$

Not available

4

Toro 95-3022

HOUSING - RH

$

$

Not available

5

Toro 93-0564

IMPELLER, BLOWER

$

$

Not available

6

Toro 93-0565

COVER-SWITCH

$

$

Not available

7

Toro 94-9320

COVER - INLET

$7.49

$

Usually ships in 3-6 days

0

8

Toro 93-0571

TUBE - BLOWER SHORT

$

$

Not available

9

Toro 98-3172

MOTOR - 1.00" STACK

$

$

Not available

10

Toro 95-3019

DECAL - POWER SWEEP

$3.49

$

Usually ships in 3-6 days

0

11

Toro 95-4412

LABEL STOCK - BLOWERS

$

$

Not available

12

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

13

Toro 93-0578

HARNESS ASSEMBLY

$

$

Not available

14

Toro 93-0585

WASHER

$1.99

$

In Stock, Qty 8

0

15

Toro 95-5106

DECAL - INFORMATION

$

$

Not available
