51575 (850) - Toro Super Blower (SN: 039000001 - 039999999) (1993) BLOWER ASSEMBLY Parts Diagram

Super Blower

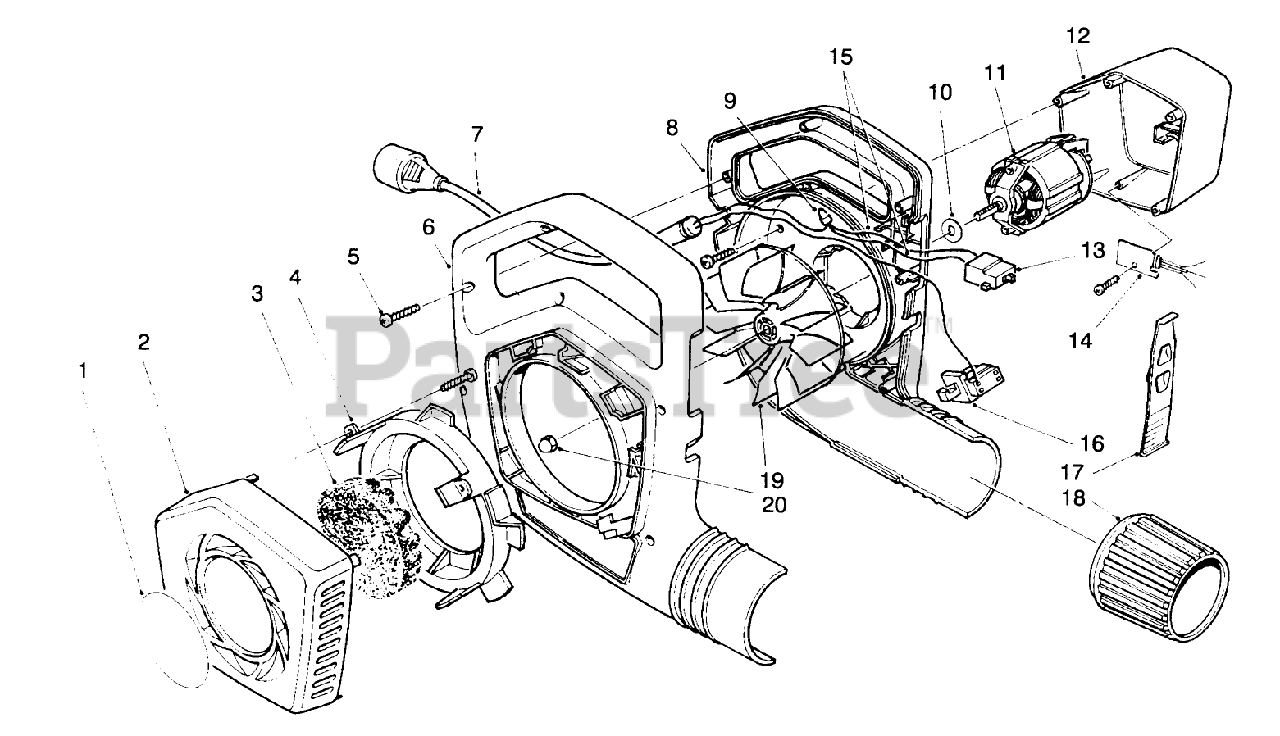

BLOWER ASSEMBLY Parts Diagram

  • Title
1

Toro 73-1390

DECAL, COVER

$

$

Not available

2

Toro 73-1341

INTAKE COVER, 850 BV

$

$

Not available

3

Toro 73-3090

CENTER FOAM

$5.99

$

Usually ships in 3-6 days

0

4

Toro 73-1351

Ring-Coupling

$

$

Not available

5

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

6

Toro 60-9613

Housing-Blower,R.H.

$

$

Not available

7

Toro 73-3473

POWER SUPPLY CORD 9.5

$

$

Not available

8

Toro 61-8432

BLOWER HOUSING, LH

$67.99

$

Usually ships in 3-6 days

0

9

Toro 218-511

Connector

$

$

Not available

10

Toro 57-4270

Washer-Impeller
(Superseded to 93-0585)

$1.49

$

In Stock, Qty 8

0

11

Toro 73-1370

Motor-Blower

$

$

Not available

12

Toro 57-1074

MOTOR COVER,850 HOTSTAM

$31.99

$

Usually ships in 3-6 days

0

13

Toro 73-5780

Switch-2 Speed

$

$

Not available

14

Toro 73-5790

DIODE ASSEMBLY

$33.99

$

Usually ships in 3-6 days

0

15

Toro 73-3170

WIRE, 3 INCH

$

$

Not available

16

Toro 57-5910

SWITCH-INTERLOCK

$17.99

$

In Stock, only 1 left!

0

17

Toro 57-5942

CAM SWITCH-HOT STAMPED

$4.99

$

In Stock, only 2 left!

0

18

Toro 57-3261

BV-OUTPUT COLLAR

$

$

Not available

19

Toro 73-1330

IMPELLER, 850 BLOWER

$

$

Not available

20

Toro 73-5380

NUT-HEX
(Superseded to 114-9015)

$2.99

$

In Stock, Qty 20+

0
