51575 (850) - Toro Super Blower (SN: 010000001 - 019999999) (1991) BLOWER ASSEMBLY Parts Diagram

Super Blower

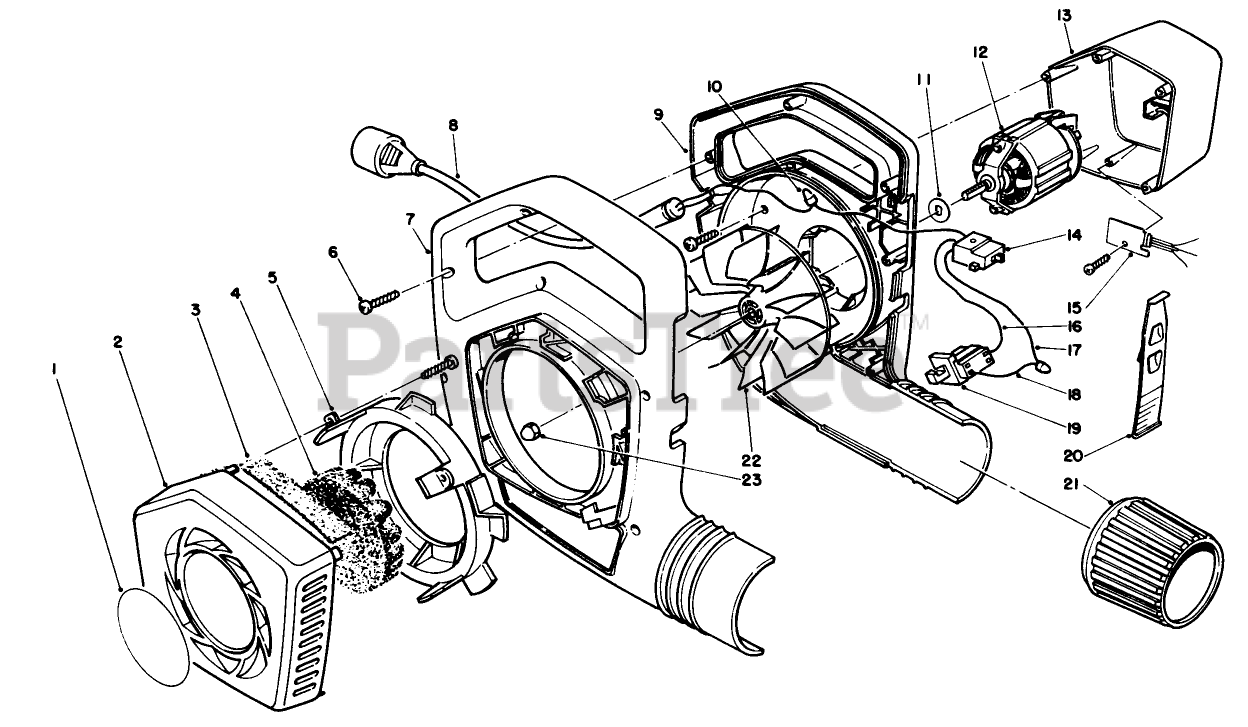

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 73-1390

DECAL, COVER

$

$

Not available

2

Toro 73-1340

Cover-Intake
(Superseded to 73-1341)

$

$

Not available

3

Toro 73-3120

TOP FOAM

$

$

Not available

4

Toro 73-3090

CENTER FOAM

$5.99

$

Usually ships in 3-6 days

0

5

Toro 73-1350

Ring-Coupling
(Superseded to 73-1351)

$

$

Not available

6

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

7

Toro 60-9612

Housing-Blower, R.H.
(Superseded to 61-8422)

$

$

Not available

8

Toro 42-0778

POWER SUPPLY CORD,9.5"

$

$

Not available

9

Toro 61-8431

Housing-L.H.
(Superseded to 61-8432)

$67.99

$

Usually ships in 3-6 days

0

10

Toro 218-511

Connector

$

$

Not available

11

Toro 57-4270

Washer-Impeller
(Superseded to 93-0585)

$1.49

$

In Stock, Qty 8

0

12

Toro 73-1370

Motor-Blower

$

$

Not available

13

Toro 57-1072

Cover-Motor
(Superseded to 57-1074)

$31.99

$

Usually ships in 3-6 days

0

14

Toro 73-1360

Switch-Varispeed
(Superseded to 99-5396)

$

$

Not available

15

Toro 73-4420

SPEED CONTROL ASSEMBLY

$

$

Not available

16

Toro 57-4280

WIRE -INTERNAL

$

$

Not available

17

Toro 57-4281

WIRE INTERNAL, WHITE

$

$

Not available

18

Toro 73-3170

WIRE, 3 INCH

$

$

Not available

19

Toro 57-5910

SWITCH-INTERLOCK

$17.99

$

In Stock, only 1 left!

0

20

Toro 73-3100

HOT STAMPED CAM SWITCH

$

$

Not available

21

Toro 57-3260

Collar-Output
(Superseded to 57-3261)

$

$

Not available

22

Toro 73-1330

IMPELLER, 850 BLOWER

$

$

Not available

23

Toro 32111-8

NUT-LOCK, CAP

$3.99

$

Usually ships in 3-6 days

0
