51575 (850) - Lawn-Boy Super Blower (SN: 059000001 - 059999999) (1995) BLOWER ASSEMBLY Parts Diagram

Super Blower

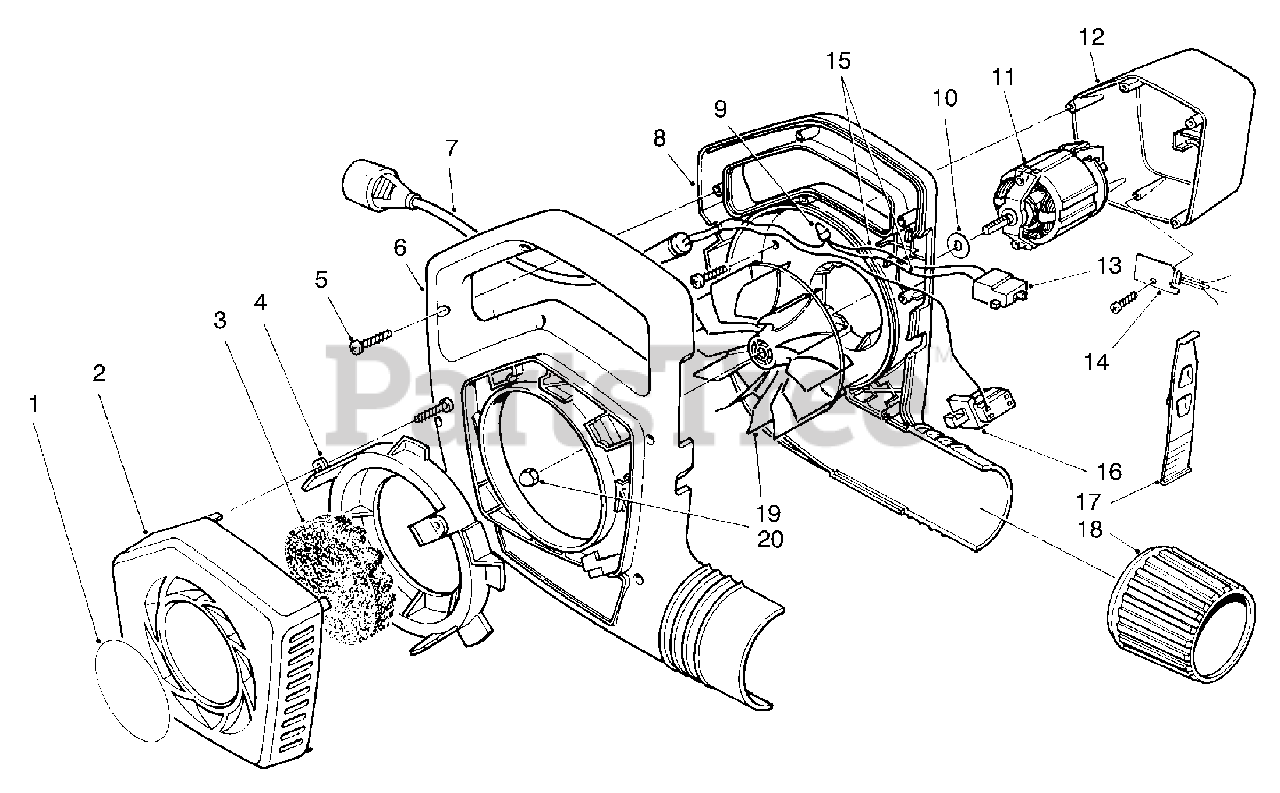

BLOWER ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 73-1390

Decal-Cover

$

$

Not available

2

Lawn-Boy 73-1341

Cover-Intake

$

$

Not available

3

Lawn-Boy 73-3090

Foam-Center

$

$

Not available

4

Lawn-Boy 73-1351

Ring-Coupling

$

$

Not available

5

Lawn-Boy 32104-121

Screw-Self Tapping
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 60-9613

Housing-Blower, R.H.

$

$

Not available

7

Lawn-Boy 73-3473

Cord-Power Supply

$

$

Not available

8

Lawn-Boy 61-8432

Housing-Blower, L.H.

$77.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 218-511

Connector-Wire

$

$

Not available

10

Lawn-Boy 57-4271

Washer-Impeller

$

$

Not available

11

Lawn-Boy 73-1370

Motor-Blower

$

$

Not available

12

Lawn-Boy 57-1074

Cover-Motor

$37.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 73-5780

Switch-2 Speed

$

$

Not available

14

Lawn-Boy 73-5790

Diode Assembly

$38.99

$

Usually ships in 3-6 days

0

$

$

Not available

16

Lawn-Boy 57-5910

Switch-Interlock

$20.99

$

In Stock, only 1 left!

0

17

Lawn-Boy 57-5942

Switch-Cam, 2 Speed

$4.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 57-3261

Collar-Output

$

$

Not available

19

Lawn-Boy 73-1330

Impeller

$

$

Not available

20

Lawn-Boy 73-5380

Nut-Cap, Locking
(Superseded to 114-9015)

$2.99

$

In Stock, Qty 16

0
