51570 - Toro Yard Blower Vacuum (SN: 010000001 - 019999999) (1991) BLOWER ASSEMBLY Parts Diagram

Yard Blower Vacuum

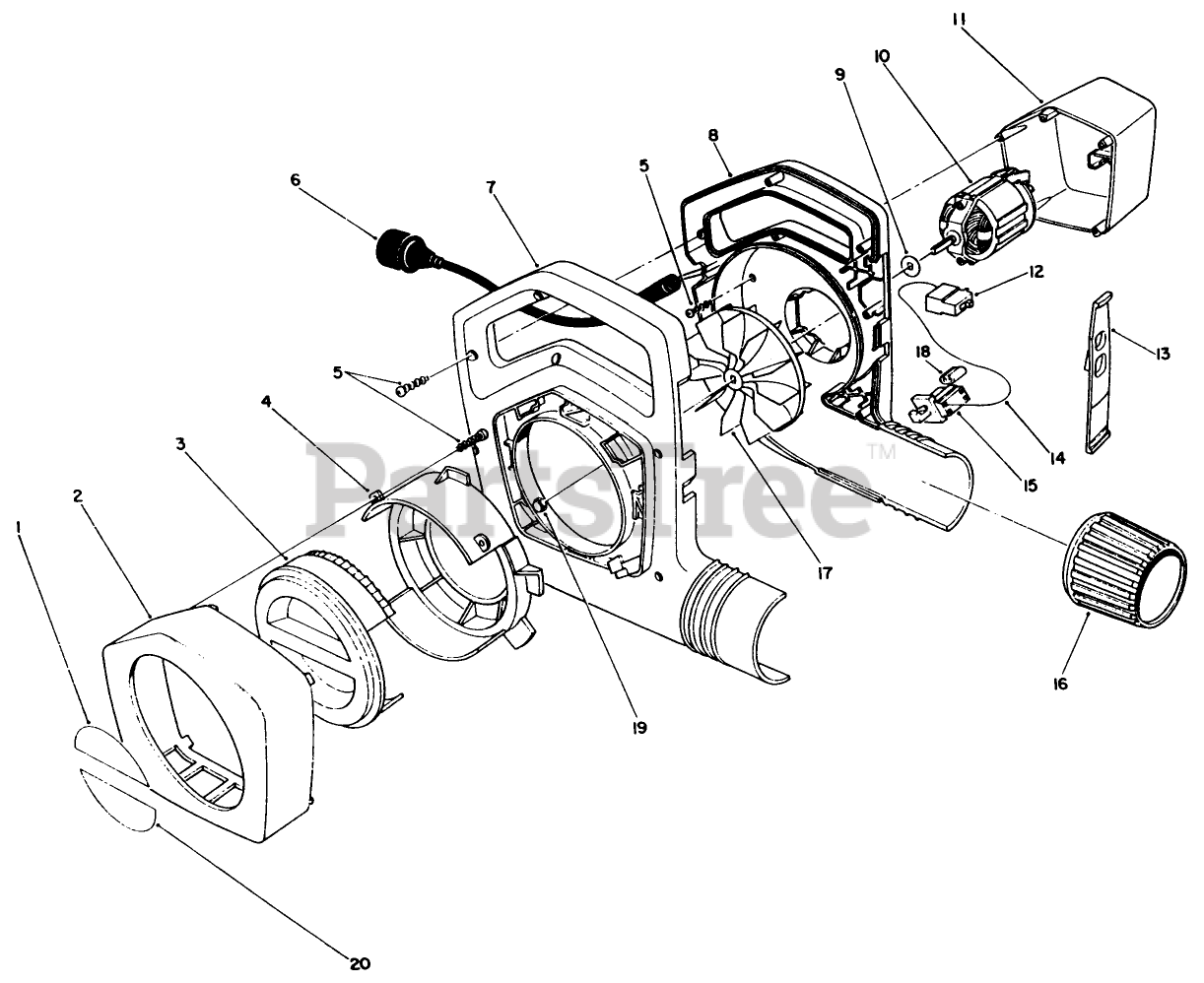

BLOWER ASSEMBLY Parts Diagram

  • Title
1

Toro 64-8930

UPPER CHOKE DECAL-CLUB

$

$

Not available

2

Toro 57-1051

BV-TRIM RING WH RED

$

$

Not available

3

Toro 57-1021

BV CH ADJUSTER WH RED

$

$

Not available

4

Toro 57-1040

Ring-Tab

$

$

Not available

5

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

6

Toro 42-0778

POWER SUPPLY CORD,9.5"

$

$

Not available

7

Toro 60-9612

Housing-Blower, R.H.
(Superseded to 61-8422)

$

$

Not available

8

Toro 61-8431

Housing-L.H.
(Superseded to 61-8432)

$77.99

$

Usually ships in 3-6 days

0

9

Toro 57-4270

Washer-Impeller
(Superseded to 93-0585)

$1.99

$

In Stock, Qty 8

0

10

Toro 57-5961

MOTOR, BLOWER (450/550)

$376.99

$

Usually ships in 3-6 days

0

11

Toro 57-1073

Cover-Motor

$

$

Not available

12

Toro 57-5890

Switch-On/Off
(Superseded to 73-5780)

$

$

Not available

13

Toro 57-5920

Cam-Switch-On/Off
(Superseded to 57-5942)

$4.99

$

In Stock, only 2 left!

0

14

Toro 57-4280

WIRE -INTERNAL

$

$

Not available

15

Toro 57-5910

SWITCH-INTERLOCK

$20.99

$

In Stock, only 1 left!

0

16

Toro 57-3260

Collar-Output
(Superseded to 57-3261)

$

$

Not available

17

Toro 57-3861

IMPELLER-NEW STYLE

$

$

Not available

18

Toro 64-8990

NEW STYLE DUST PLUG

$

$

Not available

19

Toro 32111-8

NUT-LOCK, CAP

$3.99

$

Usually ships in 3-6 days

0

20

Toro 64-8940

LOWER CHOKE DECAL-CLUB

$

$

Not available
