5157 A59 - Electrolux/AYP Walk-Behind Mower (1995) ENGINE/BRIGGS AND STRATTON Parts Diagram

Walk-Behind Mower

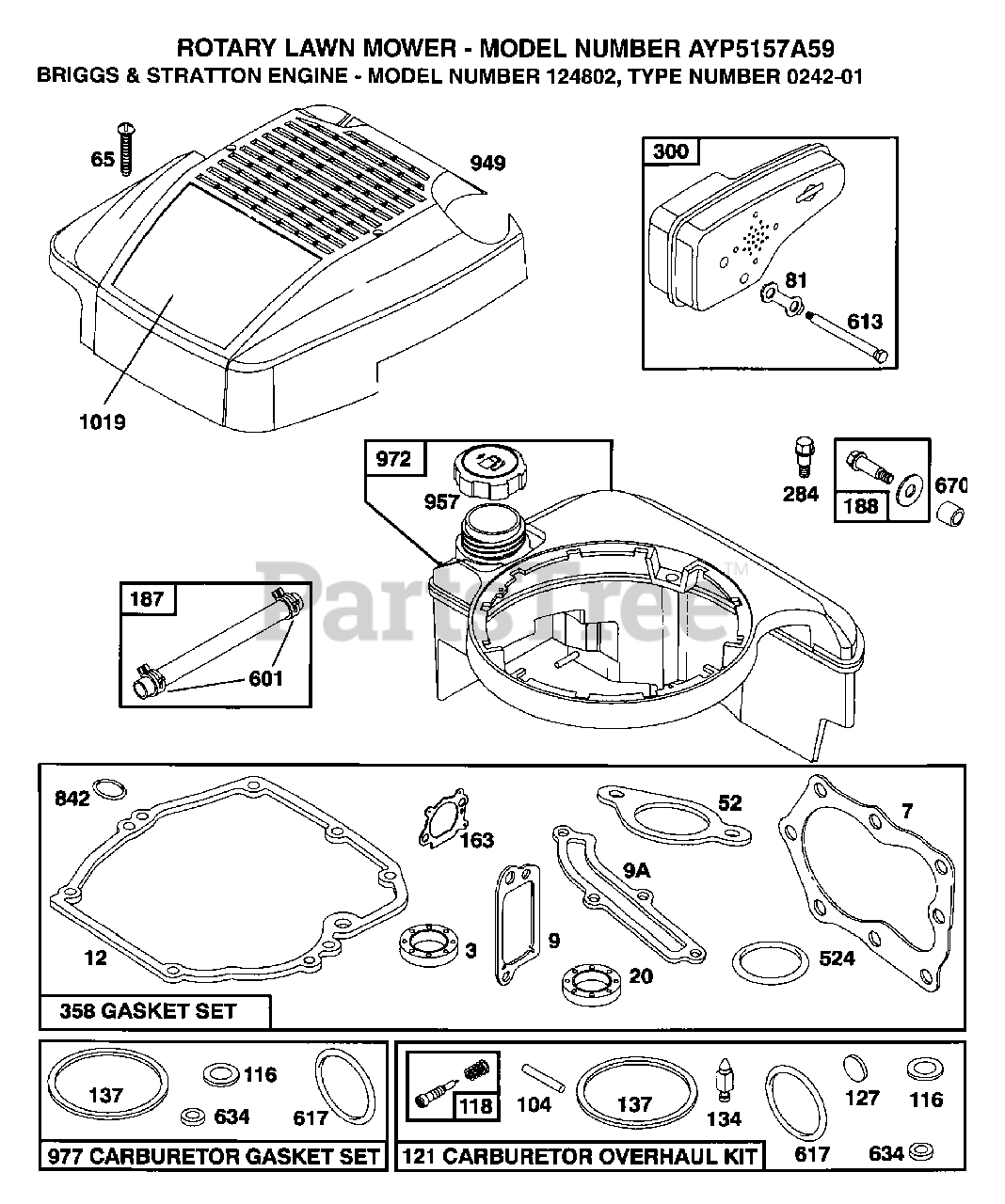

ENGINE/BRIGGS AND STRATTON Parts Diagram

  • Title

3

Briggs & Stratton 299819

SEAL, OIL
(Superseded to 299819S)

$5.49

$

In Stock, Qty 16

0

7

Briggs & Stratton 272200

GASKET CYLINDER HEAD
(Superseded to 272200S)

$

$

Not available

9

Briggs & Stratton 272481

GASKET, VALVE COVER
(Superseded to 699833)

$5.49

$

In Stock, only 1 left!

0

9A

Briggs & Stratton 272238

GASKET, BAFFLE PLATE
(Superseded to 691879)

$6.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 272198

GASKET, CRANKCASE
(Superseded to 692232)

$5.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 399781

SEAL, OIL
(Superseded to 399781S)

$7.99

$

In Stock, Qty 20+

0

52

Briggs & Stratton 272199

GASKET, INTAKE ELBOW
(Superseded to 272199S)

$4.99

$

In Stock, only 1 left!

0

65

Briggs & Stratton 94696

SCREW
(Superseded to 690700)

$3.99

$

In Stock, only 2 left!

0

81

Briggs & Stratton 223664

LOCK, MUFFLER SCREW
(Superseded to 691740)

$5.49

$

In Stock, Qty 6

0

104

Briggs & Stratton 231371

PIN, FLOAT HINGE
(Superseded to 797622)

$3.99

$

In Stock, Qty 10

0

116

REFER TO IMAGE

$

$

Not available

118

Briggs & Stratton 493765

VALVE AND SPRING NEEDLE

$14.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 493762

CARB OVERHAUL KIT
(Superseded to 498260)

$16.99

$

In Stock, Qty 20+

0

127

REFER TO IMAGE

$

$

Not available

134

Briggs & Stratton 398188

VALVE, INLET

$6.49

$

In Stock, Qty 20+

0

137

REFER TO IMAGE

$

$

Not available

163

Briggs & Stratton 272653

GASKET AIR CLEANER
(Superseded to 795629)

$3.49

$

In Stock, Qty 20+

0

187

Briggs & Stratton 492790

HOSE, FUEL
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

188

Briggs & Stratton 398540

SCREW, HEX HEAD
(Superseded to 692311)

$7.49

$

In Stock, only 1 left!

0

284

Briggs & Stratton 94511

SCREW, HEX HEAD
(Superseded to 690940)

$3.99

$

In Stock, only 2 left!

0

300

Briggs & Stratton 490547

MUFFLER EXHAUST
(Superseded to 692038)

$29.99

$

In Stock, only 1 left!

0

358

Briggs & Stratton 496117

GASKET SET

$40.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 280393

SEAL, FILLER TUBE
(Superseded to 691031)

$5.49

$

In Stock, Qty 20+

0

601

Briggs & Stratton 93807

CLAMP HOSE
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0

613

Briggs & Stratton 94231

SCREW, HEX HEAD
(Superseded to 691340)

$4.99

$

In Stock, Qty 7

0

617

Briggs & Stratton 270344

SEAL, FUEL INTAKE TUBE
(Superseded to 270344S)

$3.49

$

In Stock, Qty 20+

0

634

REFER TO IMAGE

$

$

Not available

670

Briggs & Stratton 280512

SPACER, FUEL TANK
(Superseded to 692294)

$4.99

$

In Stock, Qty 5

0

842

Briggs & Stratton 280966

SEAL, O-RING
(Superseded to 692296)

$4.99

$

In Stock, only 2 left!

0

949

Briggs & Stratton 281191

GUARD, FINGER
(Superseded to 497233)

$60.99

$

In Stock, only 1 left!

0

957

Briggs & Stratton 397974

CAP, FUEL TANK
(Superseded to 796577)

$16.99

$

In Stock, only 1 left!

0

972

Briggs & Stratton 495224

TANK ASSY FUEL
(Superseded to 699374)

$64.99

$

In Stock, Qty 20+

0

977

Briggs & Stratton 490937

GASKET SET, CARBURETOR
(Superseded to 498260)

$16.99

$

In Stock, Qty 20+

0

1019

Electrolux/AYP 4795354

LABEL KIT

$

$

Not available
