51568 - Lawn-Boy Quiet Blower Vacuum (SN: 200000001 - 200999999) (2000) BLOWERVAC ASSEMBLY Parts Diagram

Quiet Blower Vacuum

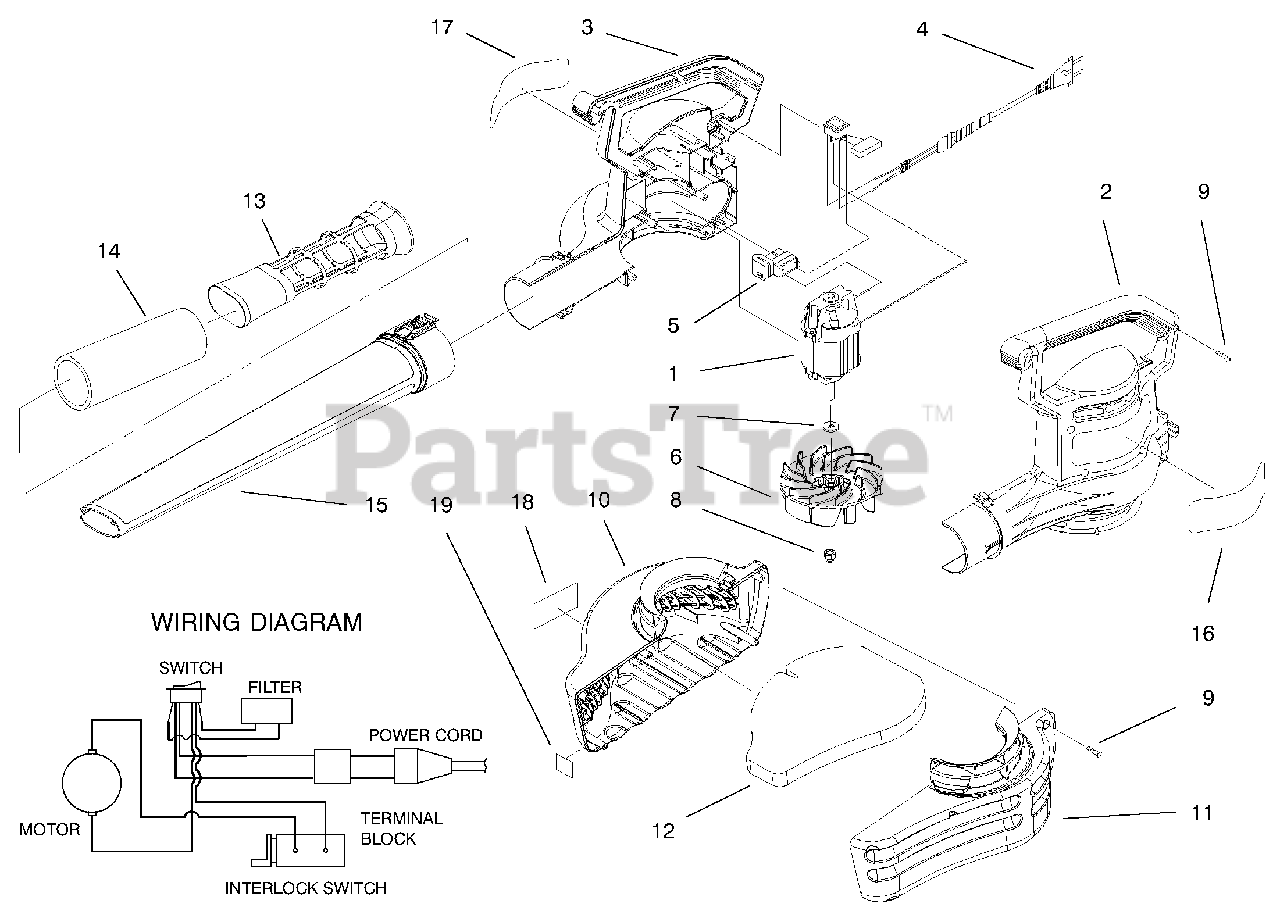

BLOWERVAC ASSEMBLY Parts Diagram

  • Title

$

$

Not available

2

Lawn-Boy 100-2455

Housing-L.H.

$

$

Not available

3

Lawn-Boy 100-2454

Housing-R.H.

$

$

Not available

4

Lawn-Boy 94-3179

Harness Assembly

$

$

Currently unavailable

5

Lawn-Boy 95-3286

Switch-Interlock

$20.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 98-3150

Impeller-Blower
(Superseded to 100-9068)

$40.99

$

In Stock, Qty 20+

0

7

$1.99

$

In Stock, Qty 8

0

8

Lawn-Boy 93-9993

Nut-Cap Hex

$

$

Not available

9

Lawn-Boy 94-4496

Screw-Phillips Hd. Tap.

$1.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 98-3157

Inlet-Quiet R.H.
(Superseded to 100-1223)

$

$

Not available

11

Lawn-Boy 98-3158

Inlet-Quiet L.H.
(Superseded to 100-1223)

$

$

Not available

12

Lawn-Boy 98-3174

Foam-Inlet

$

$

Not available

13

Lawn-Boy 98-3156

Insert-Quiet

$

$

Not available

14

Lawn-Boy 98-3159

Foam-Insert

$

$

Not available

15

Lawn-Boy 98-3151

Tube-Blower
(Superseded to 93-0571)

Note: Included in tube assembly No. 98-3170

$

$

Not available

16

Lawn-Boy 93-0579

Decal-Logo

$

$

Not available

17

Lawn-Boy 100-2477

Decal-Warning

$

$

Currently unavailable

18

Lawn-Boy 98-3173

Decal-QuieTech

$

$

Not available

19

Lawn-Boy 98-3176

Decal-63DBA

$

$

Not available
