51566 - Lawn-Boy Quiet Blower Vacuum (SN: 089000001 - 089999999) (1998) TUBE AND BAG ASSEMBLY Parts Diagram

Quiet Blower Vacuum

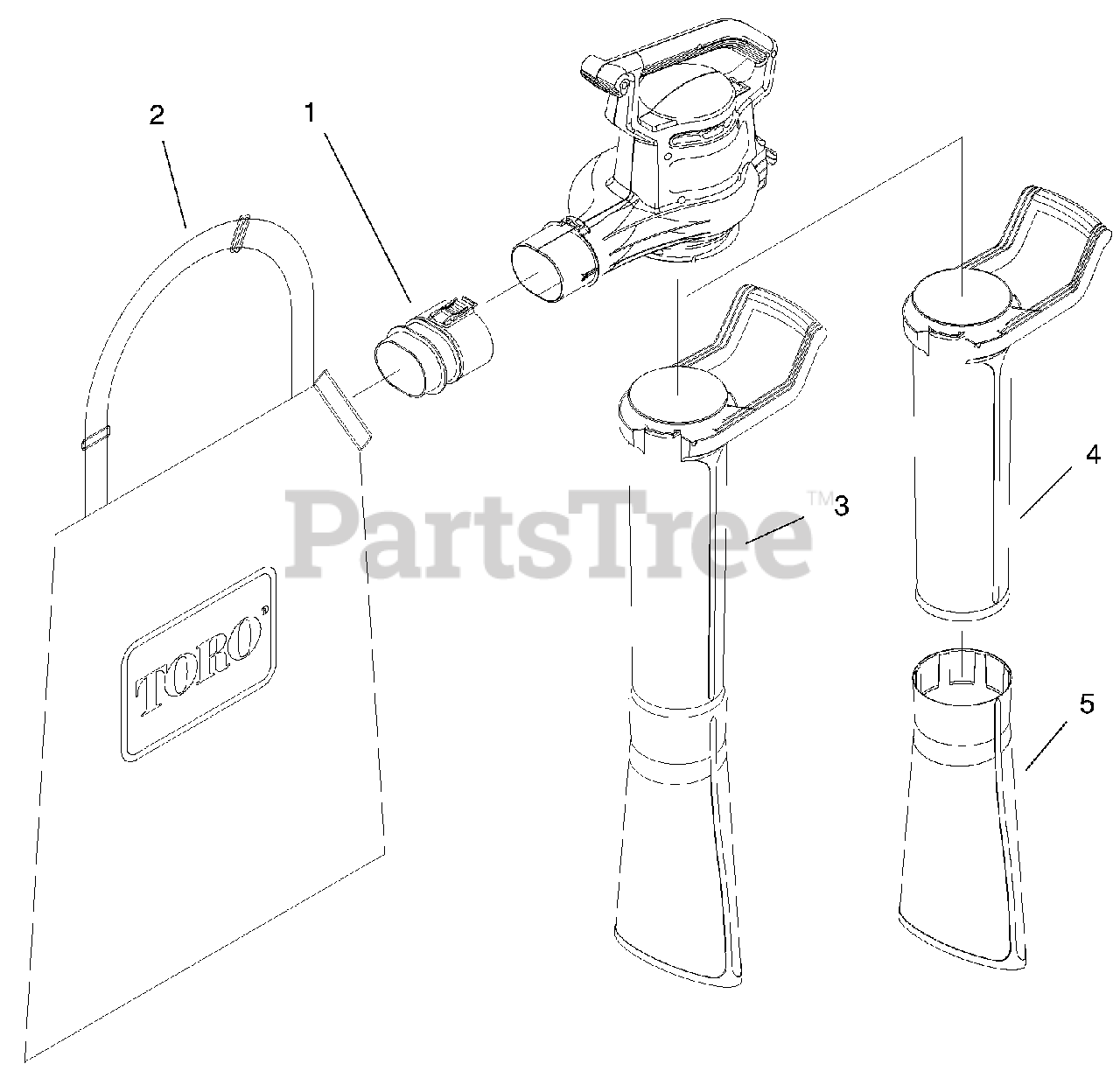

TUBE AND BAG ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 93-0574

Tube-Bag Inlet

$

$

Not available

2

Lawn-Boy 93-0583

Bag
(Superseded to 100-2474)

$

$

Not available

3

Lawn-Boy 93-7648

Tube-Vac (Only On: 51566)

$

$

Not available

4

Lawn-Boy 93-0572

Tube-Vac (Only On: 51568)
(Superseded to 100-9758)

Note: Included in tube assembly No. 98-3170

$

$

Not available

5

Lawn-Boy 93-0573

Tube-Vac (Only On: 51568)
(Superseded to 100-9758)

Note: Included in tube assembly No. 98-3170

$

$

Not available
