51562 - Toro 10" String Trimmer, Cordless (SN: 079000001 - 079999999) (1997) HOUSING AND BATTERIES Parts Diagram

10" String Trimmer, Cordless

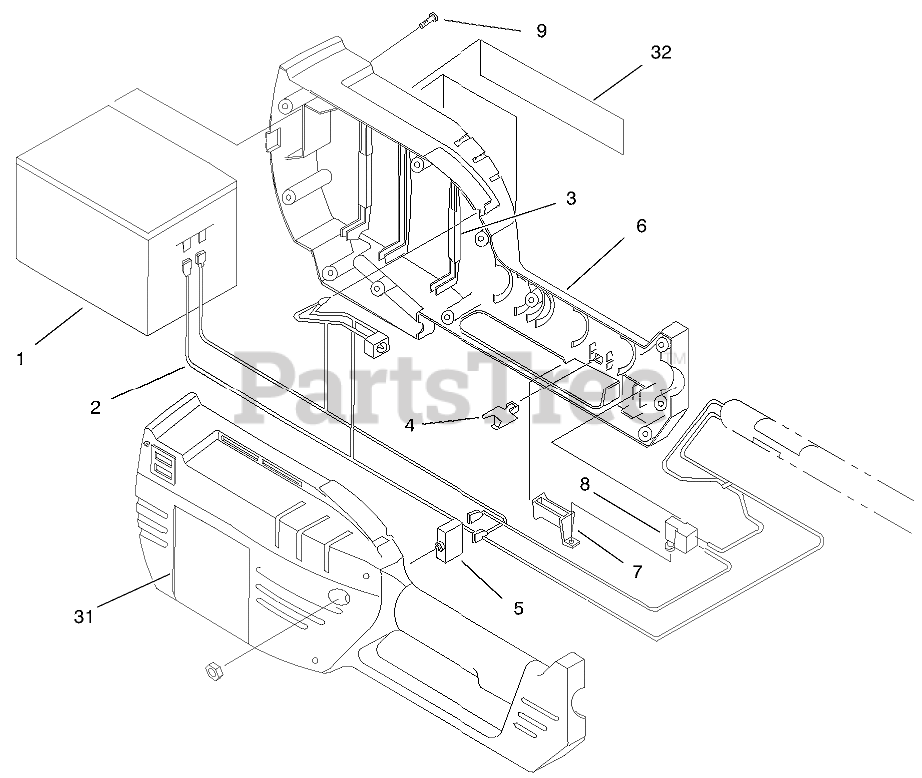

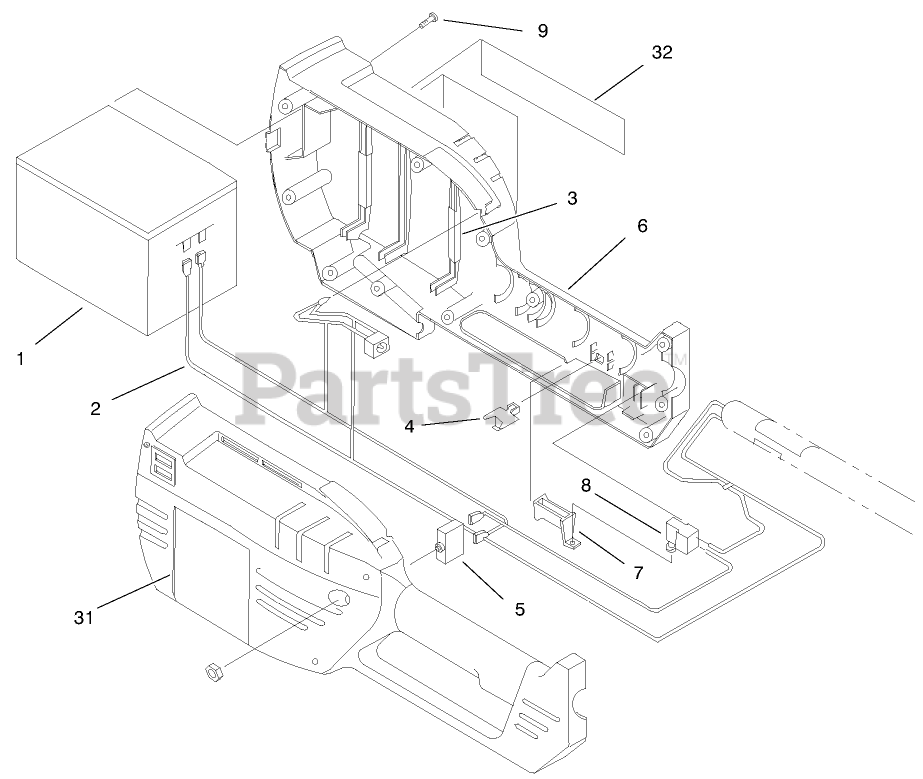

HOUSING AND BATTERIES Parts Diagram

  • Title
1

Toro 180361

Battery
(Superseded to 181624)

$

$

Not available

2

Toro 180362

ASM - WIRING HARNESS

$

$

Not available

3

Toro 180363

CUSHION-BATTERY SET (5)

$

$

Not available

4

Toro 180364

SWITCH - SAFETY RELEASE

$

$

Not available

5

Toro 180365

SWITCH-THERMAL OVERLOAD

$

$

Not available

6

Toro 181495

HSG - BATTERY W/O DECALS

$

$

Not available

7

Toro 180151

Trigger
(Superseded to 182318)

$

$

Not available

8

Toro 180150

SWITCH

$

$

Not available

9

Toro 181482

SCREW - HOUSING

$

$

Not available

31

Toro 51175

DECAL - HOUSING TORO

$31.99

$

Usually ships in 3-6 days

0

32

Toro 51128

DECAL - RECYCLE BATTERY

$

$

Not available

Toro 181497

DECAL SET - BATTERY HSG

Note: Not illustrated

$

$

Not available
