51561 (710) - Toro String Trimmer, Electric (SN: 000000001 - 000999999) (1990) MOTOR HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

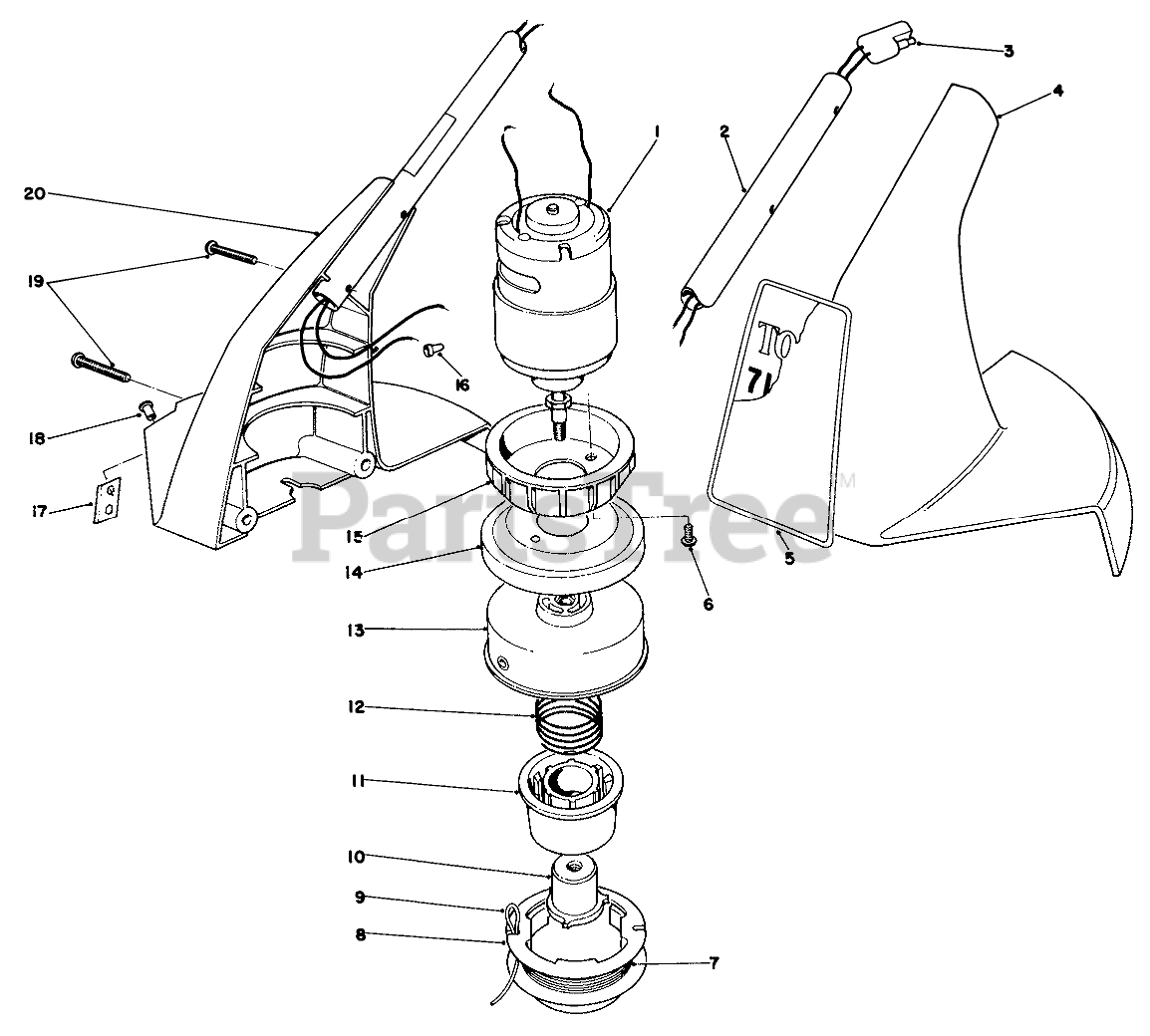

MOTOR HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 62-3170

MOTOR ASM

$

$

Not available

2

Toro 33-6660

EXTENSION HANDLE

$

$

Not available

3

Toro 33-6720

WIRING HARNESS LOWER

$

$

Not available

4

Toro 33-6564

Housing-L.H.

$

$

Currently unavailable

5

Toro 73-1200

710 HOUSING DECAL

$

$

Not available

6

Toro 64-6470

SCREW

$

$

Not available

7

Toro 88375

Cutting Line (12- .05 Dia.)

$

$

Currently unavailable

8

Toro 34-9870

CAP-SPOOL

$16.99

$

Usually ships in 3-6 days

0

9

Toro 88311

Cutting Line (30- .05 Dia.)

$

$

Currently unavailable

10

Toro 33-9720

DRIVER

$

$

Not available

11

Toro 29-8120

CORE - SPOOL

$34.99

$

Usually ships in 3-6 days

0

12

Toro 34-9860

Spring
(Superseded to 29-8230)

$10.99

$

In Stock, only 2 left!

0

13

Toro 33-9760

Drum w/Eyelet

$

$

Not available

14

Toro 33-9730

DRUM CUP

$

$

Not available

15

Toro 33-9740

Casting-Heat Sink

$

$

Not available

16

Toro 218-511

Connector

$

$

Not available

17

Blade-Knife

$

$

Not available

18

Rivet

$

$

Not available

19

Toro 32104-123

SCREW-PLASTITE

$

$

Not available

20

Toro 33-6762

Housing-Motor R.H. (Incl. Ref. #17 & 18)
(Superseded to 33-6764)

$

$

Not available
