51560 C (CL 710) - Lawn-Boy String Trimmer, Electric (SN: 009000001 - 009999999) (1989) UPPER CASE ASSEMBLY Parts Diagram

String Trimmer, Electric

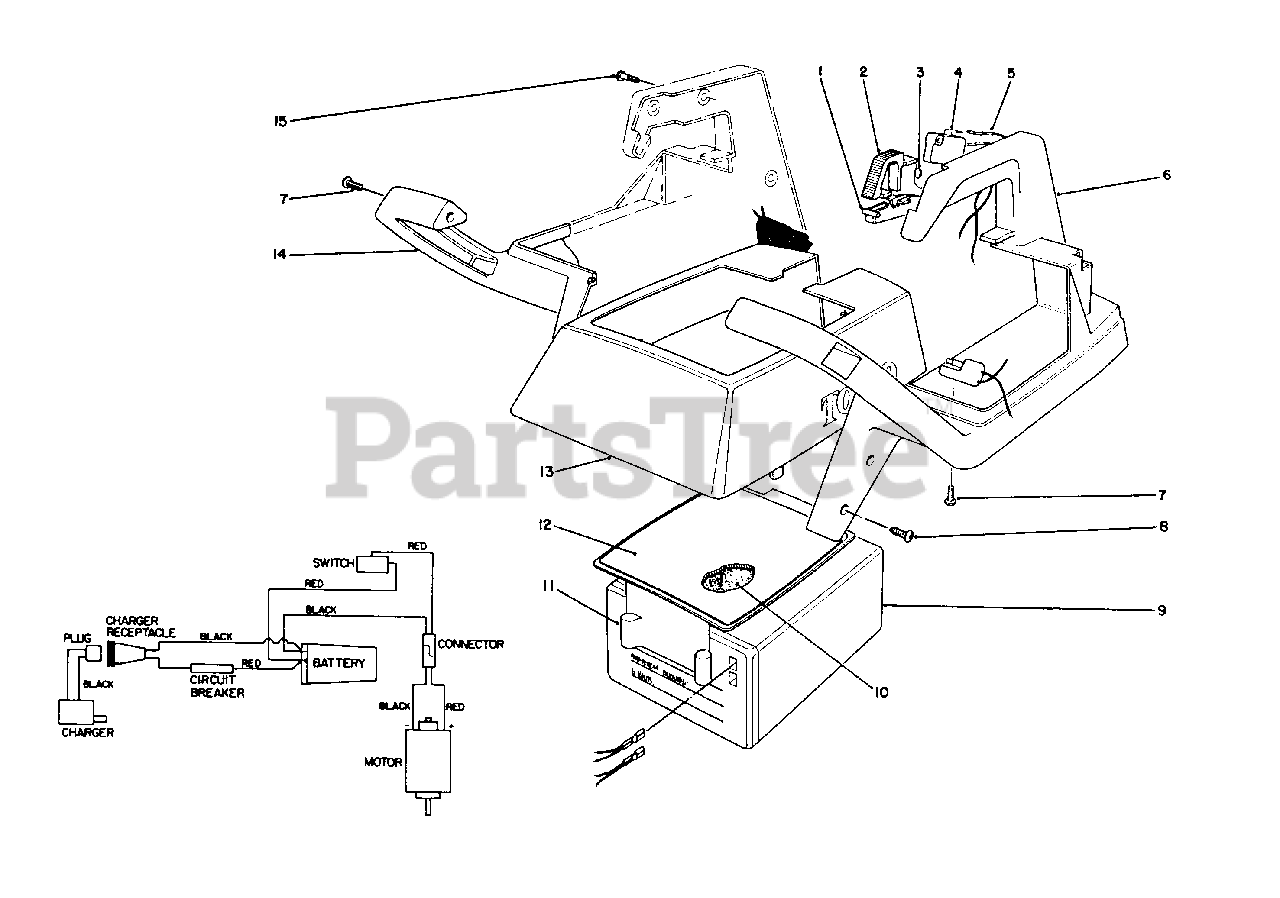

UPPER CASE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 33-6630

Trigger

$

$

Not available

2

Lawn-Boy 33-6620

Trigger Release

$

$

Not available

3

Lawn-Boy 33-6670

Spring

$

$

Not available

4

Lawn-Boy 33-6610

Switch

$

$

Not available

5

Lawn-Boy 33-9660

Wiring Harness

$

$

Not available

6

Lawn-Boy 34-5840

Left Handle & Battery Case

$

$

Not available

7

Lawn-Boy 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 32144-30

Self Tapping Screw

$2.49

$

Usually ships in 3-6 days

0

9

Lawn-Boy 33-6650

Battery

$

$

Not available

10

Lawn-Boy 33-6830

Foam Pad

$

$

Not available

11

Lawn-Boy 33-6540

Panel-Control

$

$

Not available

12

Lawn-Boy 55-7140

Decal-Control Panel

$

$

Not available

13

Lawn-Boy 33-9790

Cover
(Superseded to 33-9792)

$

$

Not available

14

Lawn-Boy 34-5830

Right Hand & Battery Case

$

$

Not available

15

Lawn-Boy 32104-118

Screw

$

$

Not available

Lawn-Boy 33-6730

Battery Charger

Note: Not Illustrated

$94.99

$

In Stock, only 1 left!

0
