51559 - Lawn-Boy 10" String Trimmer, Cordless (SN: 079000001 - 079999999) (1997) MOTOR HOUSING, MOTOR & HANDLE ASSEMBLY Parts Diagram

10" String Trimmer, Cordless

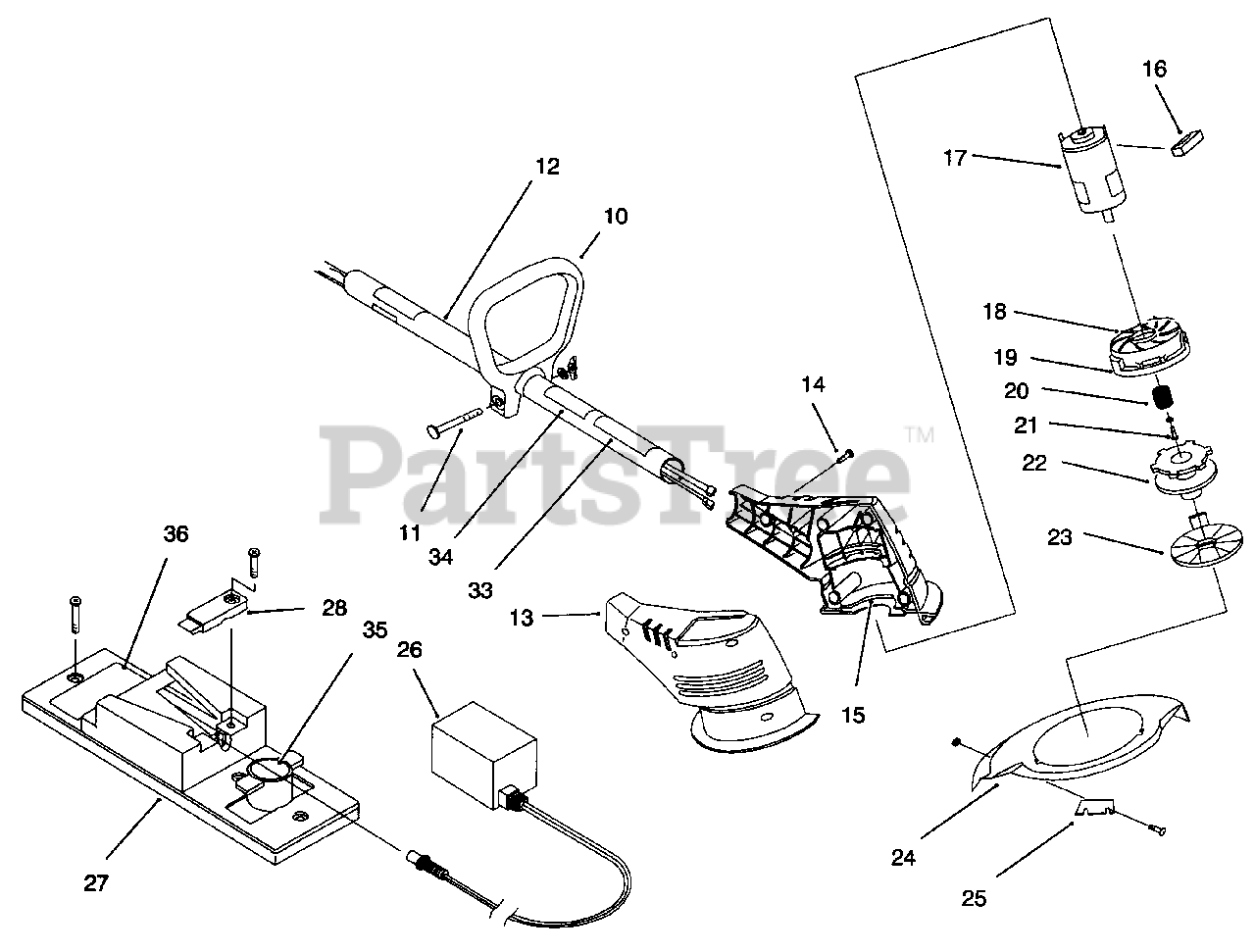

MOTOR HOUSING, MOTOR & HANDLE ASSEMBLY Parts Diagram

  • Title

10

Lawn-Boy 145819

D-Handle

$

$

Not available

11

Lawn-Boy 181587

D-Handle Hardware

$21.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 180367

Boom Assembly

$

$

Not available

13

Lawn-Boy 181496

Motor Housing

$

$

Not available

14

Lawn-Boy 181482

Housing Screw

$

$

Not available

15

Lawn-Boy 180369

Motor Supports

$

$

Not available

16

Lawn-Boy 180370

Anti-Rotation Block

$

$

Not available

17

Lawn-Boy 180371

Motor

$

$

Not available

18

Lawn-Boy 180372

Outer Spool and Eyelet (Incl. Ref. #19)

$

$

Not available

19

Lawn-Boy 180373

Eyelet

$

$

Not available

20

Lawn-Boy 180374

Spring

$

$

Not available

21

Lawn-Boy 180375

Screw & Washer

$

$

Not available

22

Lawn-Boy 92-3292

Inner Reel and .065 Line (15 ft.)

$

$

Not available

Lawn-Boy 180117

Monoflail Cutting Line (50 ft.)

Note: Not Illustrated

$

$

Not available

23

Lawn-Boy 180376

Reel Cove

$

$

Not available

24

Lawn-Boy 180293

Guard and Blade Assembly (Inc. Ref. #25)

$72.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 180377

Blade Assembly

$14.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 180294

Battery Charger

$

$

Not available

27

Lawn-Boy 180295

Wall Station Assembly

$

$

Not available

28

Lawn-Boy 180378

Wall Station Clamp & Screw

$

$

Not available

33

Lawn-Boy 92-3328

Decal-Safety Symbols
(Superseded to 95-5297)

$

$

Not available

34

Lawn-Boy 50925

Decal-UL Safety Warnings

$6.49

$

Usually ships in 3-6 days

0

35

Lawn-Boy 51245

Decal-Toro Logo

$

$

Not available

36

Lawn-Boy 50965

Decal-Caution

$

$

Not available

Lawn-Boy 180327

Cutting Head Assembly (Incl. Ref. #18-23)

Note: Not Illustrated

$87.99

$

Usually ships in 3-6 days

0
