51557 - Toro Super Blower Vacuum (SN: 069000001 - 069999999) (1996) BLOWER ASSEMBLY Parts Diagram

Super Blower Vacuum

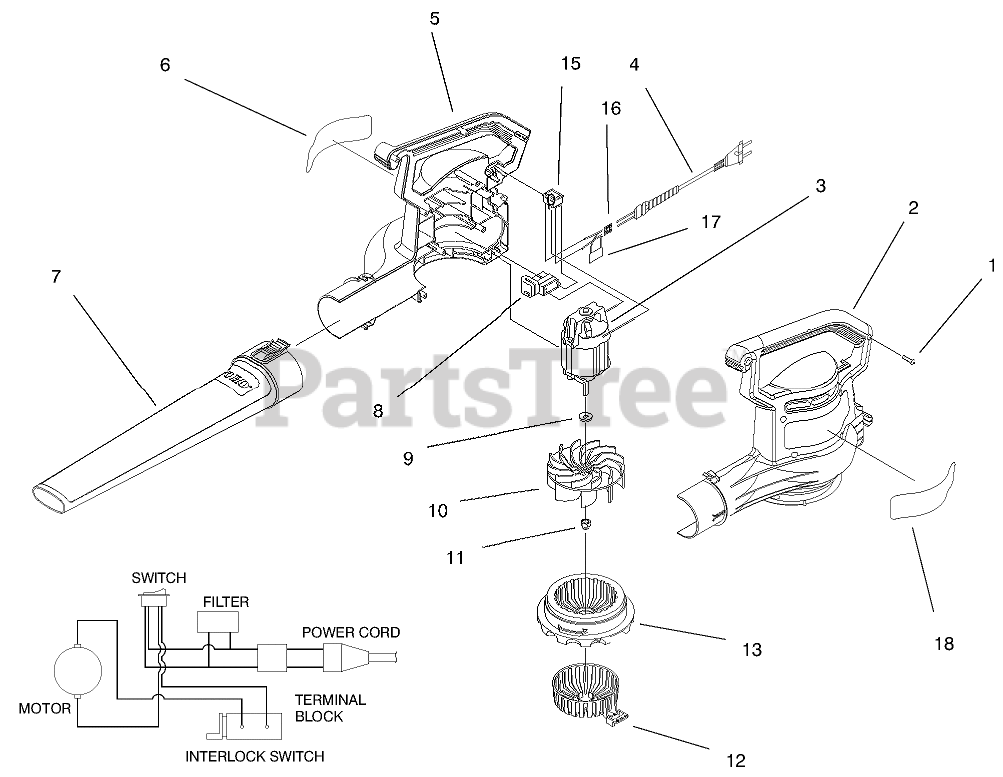

BLOWER ASSEMBLY Parts Diagram

  • Title
1

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

2

Toro 93-8719

HOUSING, LH - 230V BLOWER

$

$

Not available

3

Toro 93-8733

MOTOR, 230V SUPER BLOWER

$448.99

$

Usually ships in 3-6 days

0

4

Toro 93-0556

CORD - POWER

$

$

Not available

5

Toro 93-8720

HOUSING, RH - 230V BLOWER

$

$

Not available

6

Toro 93-0579

DECAL, LOGO, SUPRBLWR

$

$

Not available

7

Toro 93-0571

TUBE - BLOWER SHORT

$

$

Not available

8

Toro 93-0598

SWITCH, INTERLOCK

$

$

Not available

9

Toro 93-0585

WASHER

$1.99

$

In Stock, Qty 8

0

10

Toro 93-0564

IMPELLER, BLOWER

$

$

Not available

11

Toro 93-9993

NUT - IMPELLER

$

$

Not available

12

Toro 93-0559

CHOKE - AIR, RED

$4.49

$

In Stock, only 1 left!

0

13

Toro 93-0569

COVER - INLET, W/HOLE

$11.99

$

In Stock, only 1 left!

0

15

Toro 93-7646

SWITCH - POWER

$

$

Not available

16

Toro 93-8745

HARNESS - BLOWER, 230 VOL

$

$

Not available

17

Toro 93-8459

FILTER - RFI

$

$

Not available

18

Toro 93-9916

Decal-Warning

$

$

Not available

Toro 93-8745

Harness-Blower (Incl. Ref. # 4, 15-17)

Note: Not illustrated

$

$

Not available
