51557 - Toro Super Blower Vacuum (SN: 059000001 - 059999999) (1995) BLOWER ASSEMBLY Parts Diagram

Super Blower Vacuum

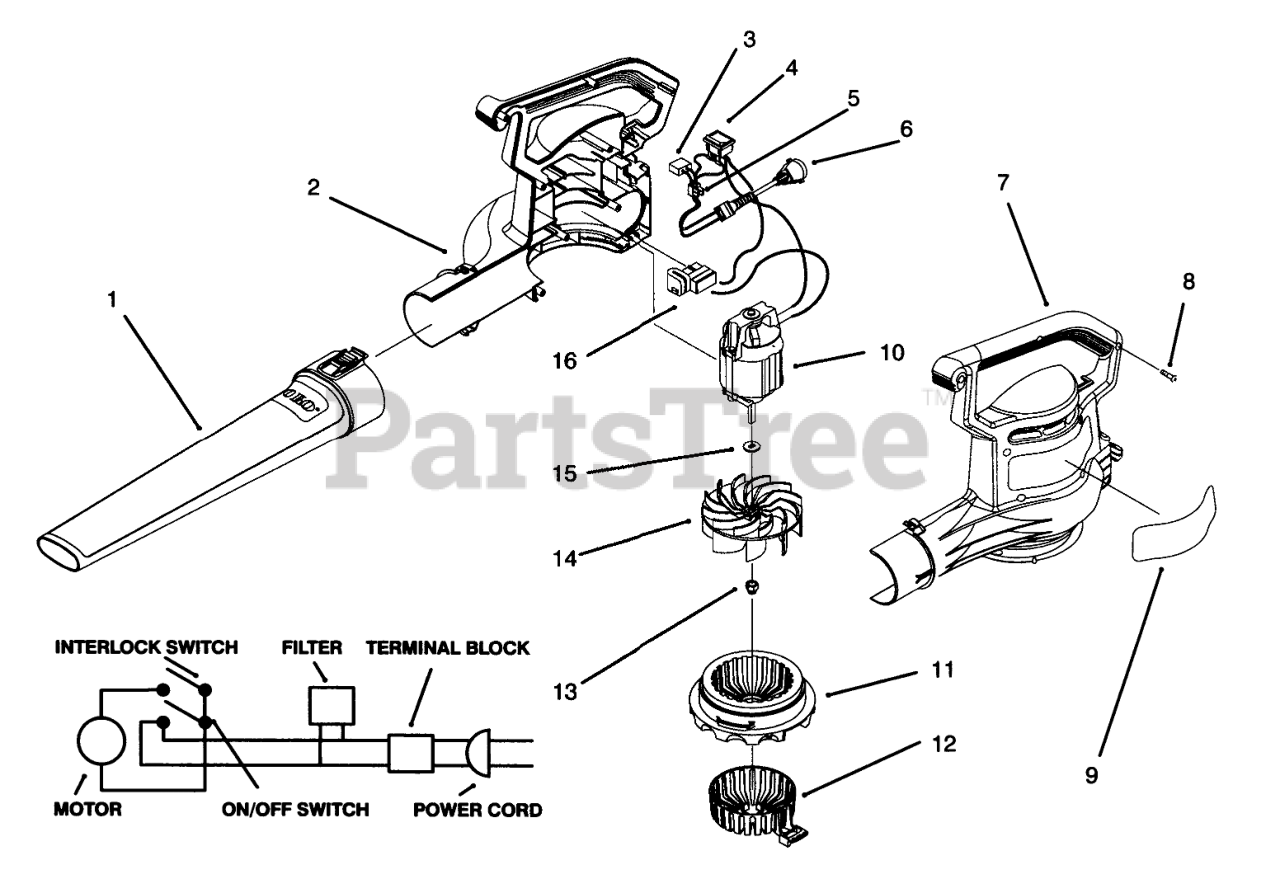

BLOWER ASSEMBLY Parts Diagram

  • Title
1

Toro 93-0571

TUBE - BLOWER SHORT

$

$

Not available

3

Toro 93-7645

Block-Terminal
(Superseded to 93-8745)

$

$

Not available

4

Toro 93-7646

SWITCH - POWER

$

$

Not available

5

Toro 93-8459

FILTER - RFI

$

$

Not available

6

Toro 93-0556

CORD - POWER

$

$

Not available

7

Toro 93-8719

HOUSING, LH - 230V BLOWER

$

$

Not available

8

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

9

Toro 93-0579

DECAL, LOGO, SUPRBLWR

$

$

Not available

10

Toro 93-8733

MOTOR, 230V SUPER BLOWER

$448.99

$

Usually ships in 3-6 days

0

11

Toro 93-0559

CHOKE - AIR, RED

$4.49

$

In Stock, only 1 left!

0

12

Toro 93-0569

COVER - INLET, W/HOLE

$11.99

$

In Stock, only 1 left!

0

13

Toro 93-9993

NUT - IMPELLER

$

$

Not available

14

Toro 93-0564

IMPELLER, BLOWER

$

$

Not available

15

Toro 93-0585

WASHER

$1.99

$

In Stock, Qty 8

0

16

Toro 93-0598

SWITCH, INTERLOCK

$

$

Not available
