51556 - Toro 7" String Trimmer, Cordless (SN: 059000001 - 059999999) (1995) MOTOR HOUSING ASSEMBLY Parts Diagram

7" String Trimmer, Cordless

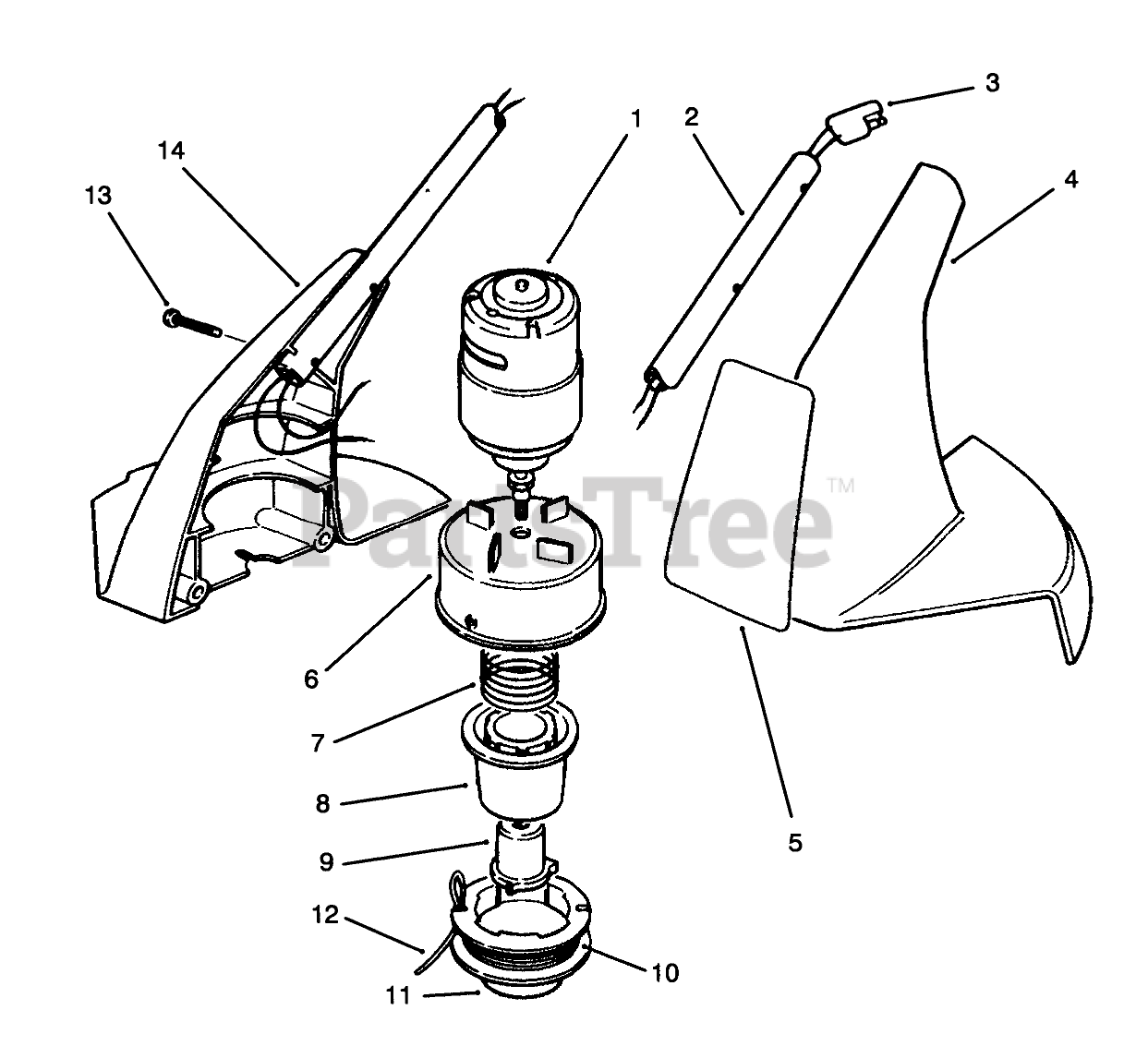

MOTOR HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 62-3172

MOTOR ASM
(Superseded to 73-6770)

$

$

Not available

2

Toro 73-5350

HANDLE-EXTENSION

$31.99

$

Usually ships in 3-6 days

0

3

Toro 73-5540

WIRING HARNESS-LOWER

$

$

Not available

4

Toro 73-6750

HOUSING, LH - 7"TRIMMER

$

$

Not available

5

Toro 73-9190

DECAL - 7" TRIMMER

$2.49

$

Usually ships in 3-6 days

0

6

Toro 73-5280

DRUM ASM-4 BLADE

$26.99

$

Usually ships in 3-6 days

0

7

Toro 29-8230

SPRING-COMPRESSION

$8.99

$

In Stock, only 2 left!

0

8

Toro 29-8120

CORE - SPOOL

$29.99

$

Usually ships in 3-6 days

0

9

Toro 33-9720

DRIVER

$

$

Not available

10

Toro 34-9830

Line-Cutting 12-.050 Dia. Prewound Spool(Incl. Ref. #11)
(Superseded to 88075)

$4.92

$

In Stock, only 3 left!

0

Toro 88075

Prewound Spool

Note: Not illustrated

$4.92

$

In Stock, only 3 left!

0

11

Toro 34-9870

CAP-SPOOL

$13.99

$

Usually ships in 3-6 days

0

12

Toro 34-3880

Filament Line 30-(.050 Dia.)
(Superseded to 88011)

$

$

Not available

Toro 88011

Line-Cutting (30- .05 Dia.)

Note: Not illustrated

$

$

Not available

13

Toro 32104-123

SCREW-PLASTITE

$

$

Not available

14

Toro 33-6764

Housing-Motor R.H.

$

$

Not available
