51556 - Toro 7" String Trimmer, Cordless (SN: 039000001 - 039999999) (1993) MOTOR HOUSING ASSEMBLY Parts Diagram

7" String Trimmer, Cordless

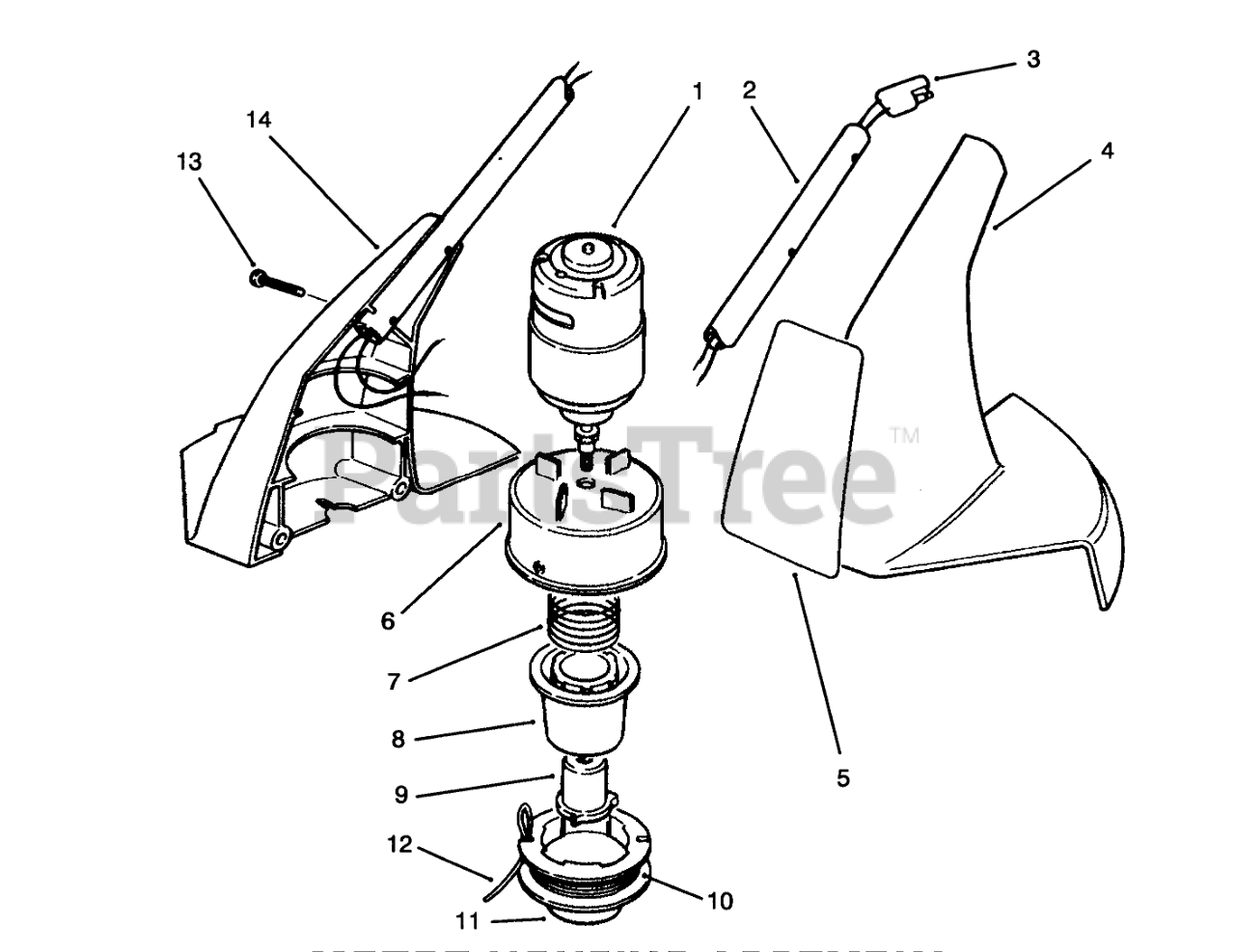

MOTOR HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 62-3172

MOTOR ASM
(Superseded to 73-6770)

$

$

Not available

2

Toro 73-5350

HANDLE-EXTENSION

$

$

Not available

3

Toro 73-5540

WIRING HARNESS-LOWER

$

$

Not available

4

Toro 73-6750

HOUSING, LH - 7"TRIMMER

$

$

Not available

5

Toro 73-5930

DECAL - 7" TRIMMER

$

$

Not available

6

Toro 73-5280

DRUM ASM-4 BLADE

$

$

Not available

7

Toro 29-8230

SPRING-COMPRESSION

$10.99

$

In Stock, only 2 left!

0

8

Toro 29-8120

CORE - SPOOL

$34.99

$

Usually ships in 3-6 days

0

9

Toro 33-9720

DRIVER

$

$

Not available

10

Toro 88075

Prewound Spool

$19.99

$

In Stock, only 3 left!

0

11

Toro 34-9870

CAP-SPOOL

$16.99

$

Usually ships in 3-6 days

0

12

Toro 88011

Line-Cutting (30- .05 Dia.)

$

$

Not available

13

Toro 32104-123

SCREW-PLASTITE

$

$

Not available

14

Toro 73-6760

HOUSING, RH - 7"TRIMMER

$

$

Not available
